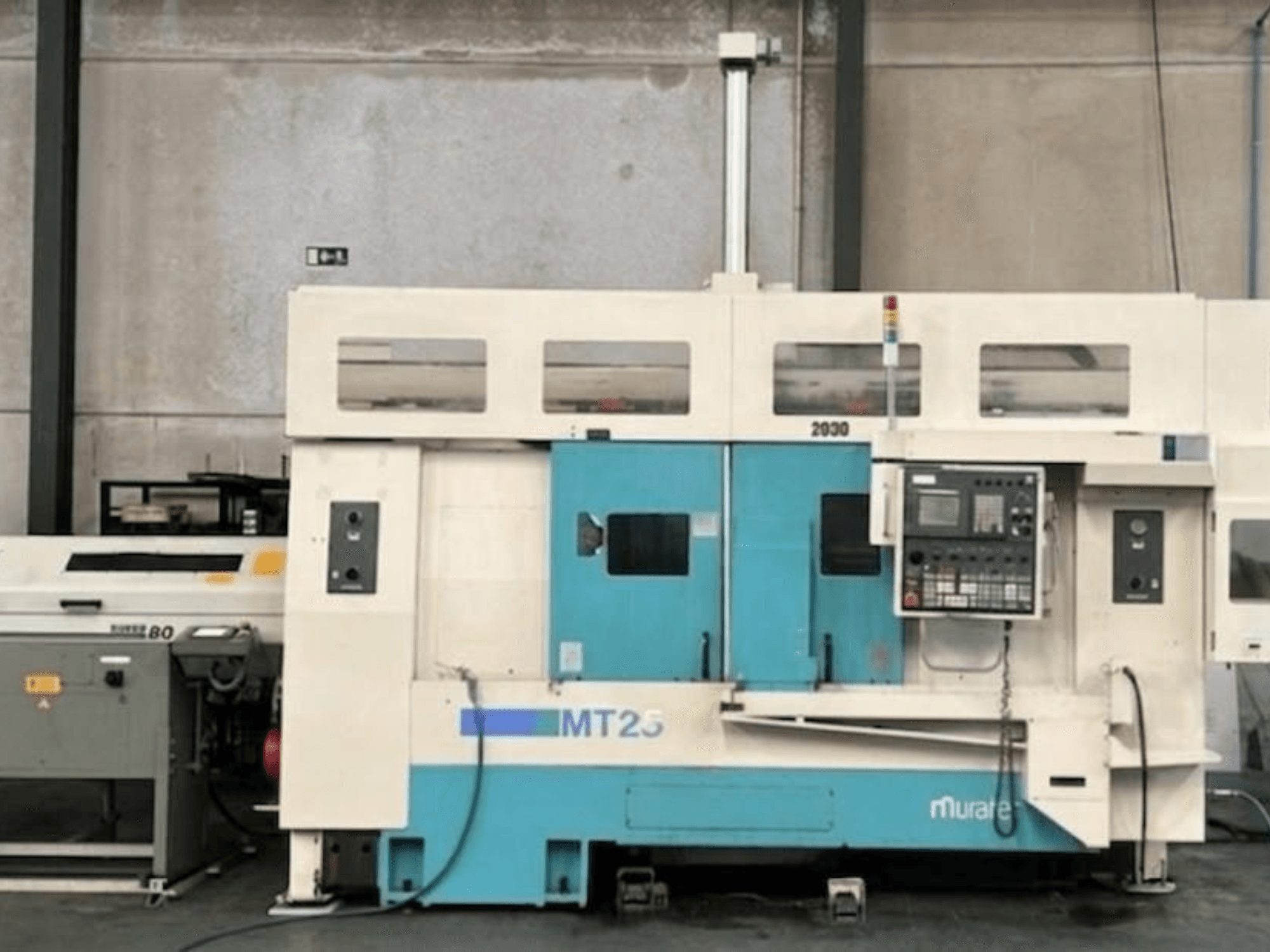

Muratec - MT 25 MYES-TUR-MUR-2001-00002

• Configuration: Twin spindle / twin turret / twin Y-axis (9 controlled axes)

• Control unit: Fanuc CNC (motors, servos, electronics)

• Condition: Currently in operation; immediate delivery

• Travels:

  • X1: 230 mm

  • X2: 230 mm

  • Z1: 250 mm

  • Z2: 700 mm

  • Y: 100 mm (±50 mm)

  • Z3 (sub-spindle): 750 mm

• Capacity & envelope:

  • Max machining diameter: 370 mm

  • Max machining length: 920 mm

  • Bar capacity: 67 mm

  • Rapid traverse (X/Z): 20 / 25 m/min

• Spindles (twin, identical):

  • Spindle nose: A2-6

  • Torque: 420 N·m

  • Workpiece transfer: Automatic transfer between spindles with torque control

• Turrets & tooling capability:

  • Turrets: 2 (both with Y-axis & C-axis)

  • Stations: 15 per turret (all live/driven)

  • Live tooling speed: 3,000 rpm

  • Live tooling motor: 4 kW

  • Indexing time: 0.2 s

• Build & features:

  • Guideways: Solid box ways (prismatic) on all axes

  • Cleaning: Automatic air/coolant blast for sub-spindle cleaning

  • Monitoring: Load control system and tool wear monitor

Additional equipment

• Gantry loader: High-speed 3-axis gantry robot, 8 kg capacity (automatic loading/unloading)

• Bar feeder: 1.5 m CNC bar loader

• Parts catcher: Automatic swing-arm for small finished parts

• Parts conveyor: Integrated conveyor belt for finished components

• Sampling compartment: Independent area for in-process inspection

• Chip conveyor: Rear-exit hinge-type chip conveyor

• Workholding: 2 × Kitagawa 250 mm hydraulic chucks

• Tooling included: Complete set of static holders (OD/ID) and live holders (axial/radial)
