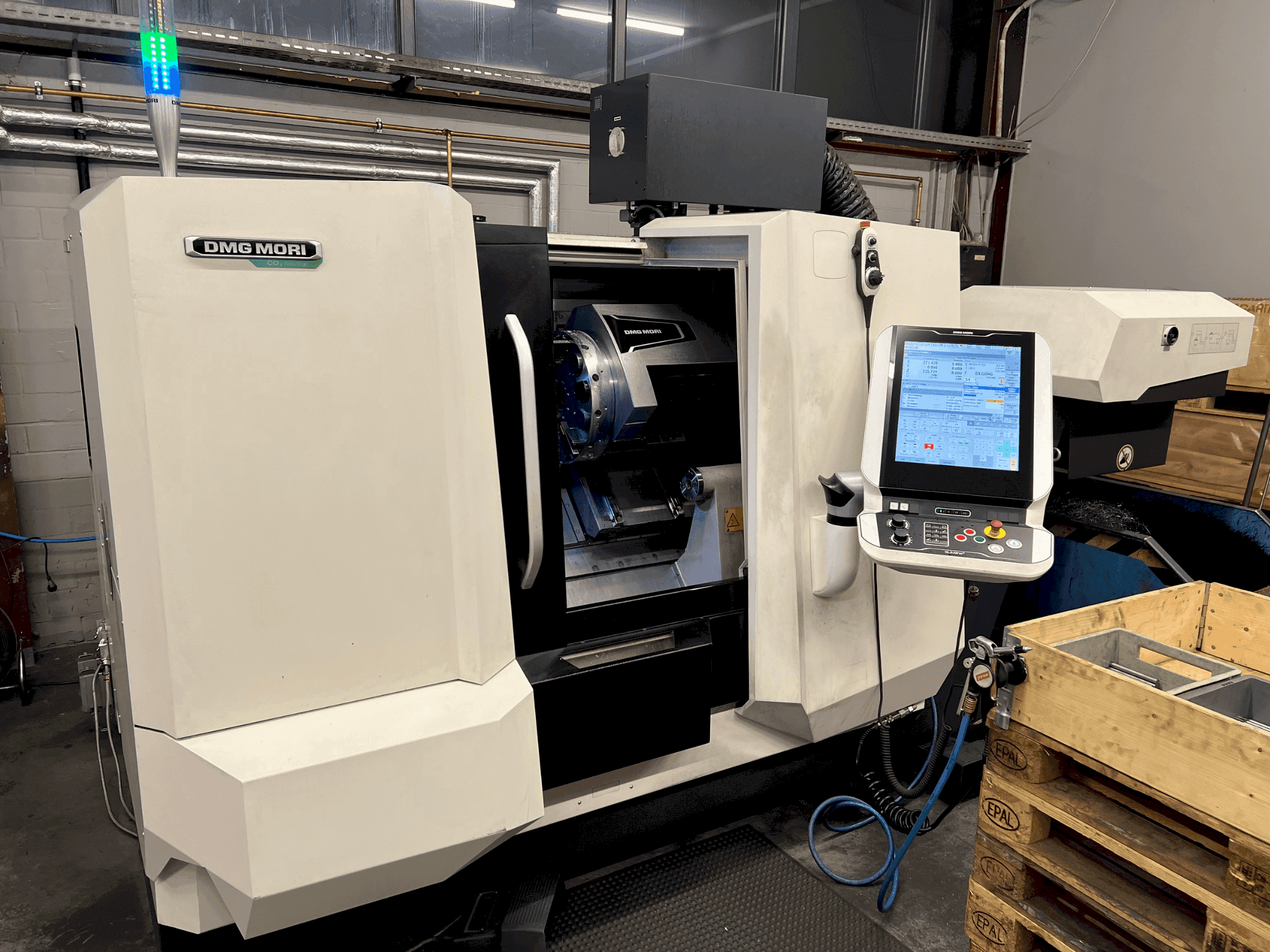

This DMG MORI CLX 350 V4 horizontal turning machine was manufactured in 2022. It features a 12-station servo tool turret, a hydraulic 3-jaw chuck, and a bar capacity up to D65 mm. The machine includes a coolant system with a 5-20 bar range and a coolant spray gun. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 350 V4 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: DMG MORI
- year: 2022
- MODEL: CLX 350 V4
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- availability: Immediately
Technical Information - DMG MORI CLX 350 V4
Main drive
- Spindle speed range: 5000 1/MIN
- Spindle motor power: A2-6 with AC motor
- Main motor power: 16.5 / 11 kW (100/40% ED)
- Number of axis: 2
Movement
- Y-AXIS Movement: +/- 40 mm
Workpiece
- Workpiece weight: 3 kg
Additional Equipment
- - External electronic handwheel
- - Chip tray
- - Dividing belt conveyor
- - Alternating speed technology cycle
- - Technology cycle Y-Axis parting
- - Easy Tool Monitoring technology cycle
- - Messenger V4
Additional Information
- Technical Machine Benefits:
- - Bar package & interface: up to d65 x 200 mm long
- - Hollow clamping device, max. Bar capacity d65 mm
- - Hydraulic 3-jaw chuck schunk rota thw plus 215-66
- - Foot pedal for tailstock
- - 12-station servo tool turret
- - 12 driven tool stations
- - Holder: vdi 30
- - Hydraulically movable tailstock via m function
- - 5-20 bar / coolant system
- - Coolant spray gun 5 bar
- Qualitative Machine Benefits:
- - Mechanical oil mist separator type afs
- - 600 m³/h with contamination indicator
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
