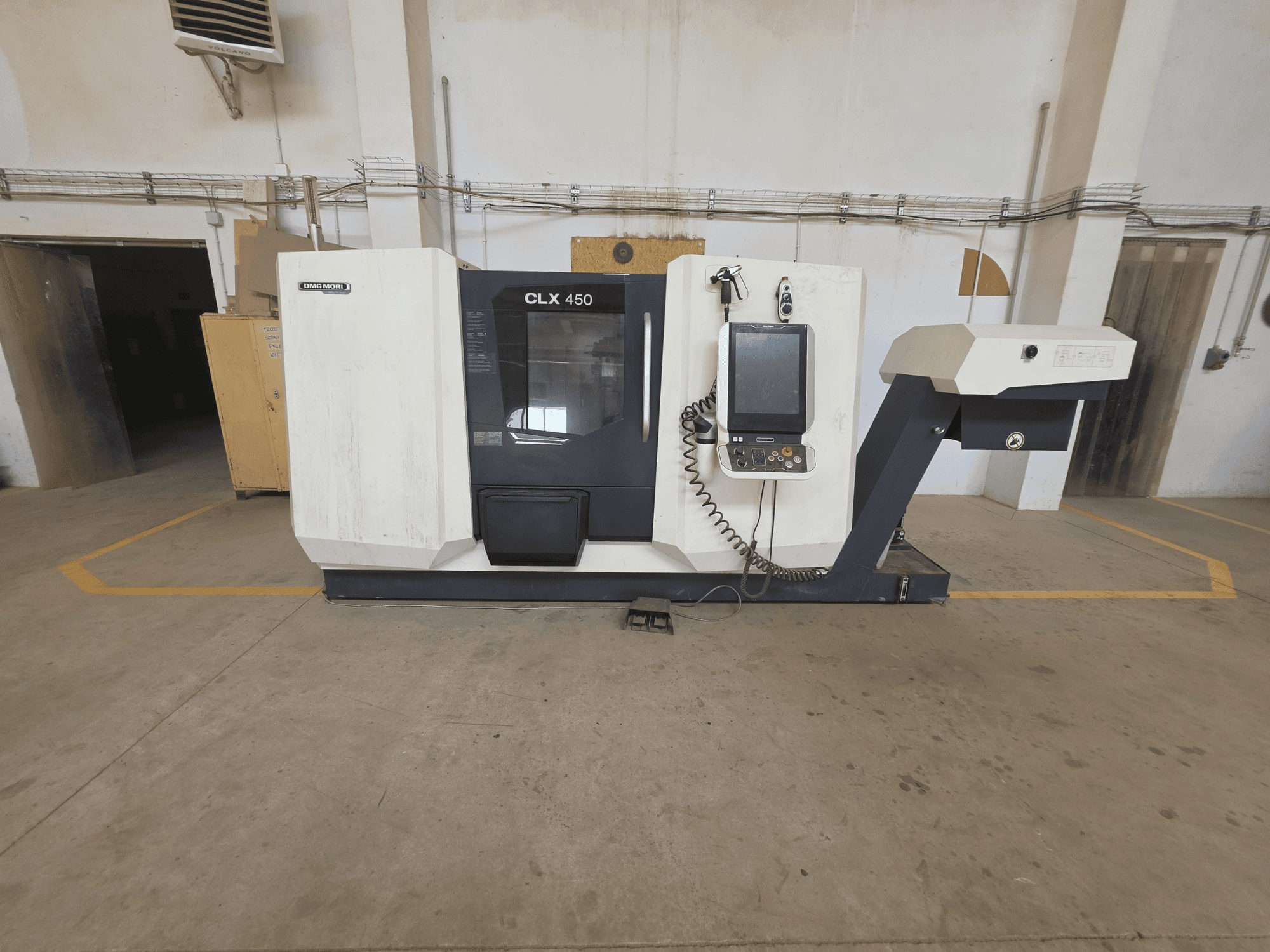

Horizontal view of DMG MORI CLX 450 V4 turning machine, featuring control panel, spindle area, and clean industrial setting.

Thank you for your visit

This machine was recently sold.

DMG MORI - CLX 450 V4PL-TUR-DMG-2022-00003

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 4-axis DMG MORI CLX 450 V4 was manufactured in 2022. It features a maximum turning diameter of 400 mm and a turning length of 800 mm. The machine is equipped with a Siemens Sinumerik 840D control and includes a turret with 12 stations, all with driven tools. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 450 V4 CNC turning center we have for sale. Contact us for further details.

Overview

  • brand: DMG MORI
  • year: 2022
  • MODEL: CLX 450 V4
  • production hours: 1030
  • application type: Turning
  • Location: Poland
  • machine type: Horizontal Turning Machine
  • control unit brand: SIEMENS

Technical Information - DMG MORI CLX 450 V4

Control Unit

  • Control Brand: SIEMENS
  • Control Model: SINUMERIK 840 D

Dimensions

  • Machine Height: 2100 mm
  • Machine Length: 4400 mm
  • Machine Weight: 5900 kg
  • Machine Width: 1900 mm

Movement

  • Number of Axes: 4
  • X-axis Travel: 260 mm
  • Y-axis Travel: 120 mm
  • Z-axis Travel: 800 mm

Technical Specification

  • Counter Spindle: No
  • Driven Tools: Yes
  • Spindle Power: 22 kW
  • Spindle Speed: 4000 RPM
  • Taper Size: VDI 40

Additional Information

  • Working range:

    • Max. turning diameter: 400 mm

    • Max. turning length: 800 mm

    • Swing over cross slide: 320 mm

  • C-axis: full interpolation

  • Main spindle:

    • Spindle nose: A8

    • Spindle motor power: approx. 22/18 kW

  • Turret and tools:

    • Turret: 12 stations

    • All stations with driven tools

  • Performance:

    • Rapid traverse (X/Y/Z): approx. 24 / 10 / 30 m/min

  • Equipment: Tailstock

  • Power supply: 400 V / 50 Hz

  • Condition: Checked by DMG service before disconnection; very good condition with all functions working properly. Service report available for review.

Additional equipment

  • Turning tools installed on the machine and included in the offer.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
