➤ Used DMG MORI CTX Alpha 500 V6 For Sale | gindumac.com

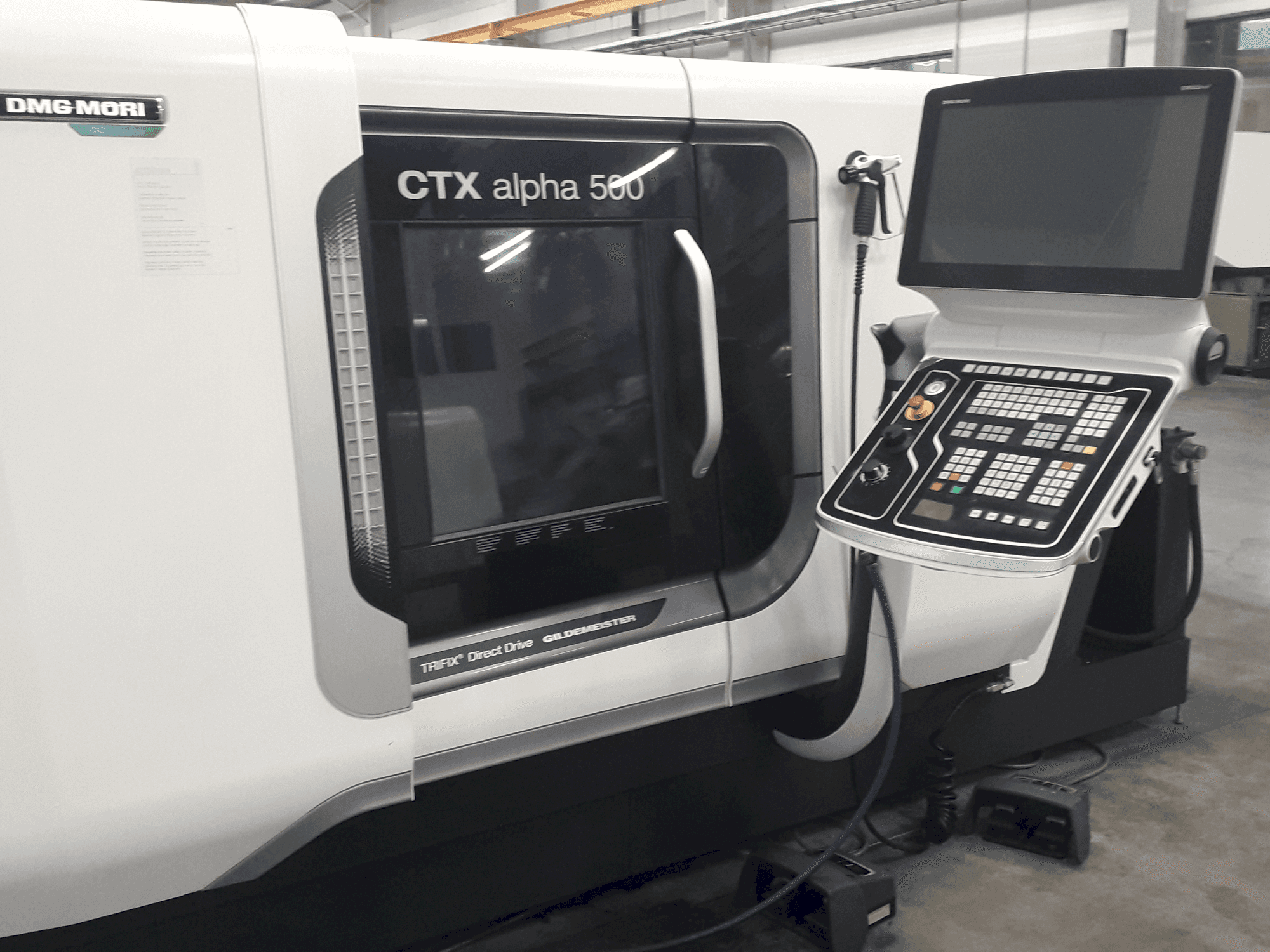

This 5-axis DMG MORI CTX Alpha 500 V6 was manufactured in 2021. A versatile turn-mill centre featuring a Siemens 840D controller, ERGOline interface, and CELOS manufacturing support. It offers a 470 mm machining length, 6000 rpm max speed, and a 12-position Sauter turret with live tooling. Ideal for complex machining tasks. Contact us for more information about this machine.

Overview

brand: DMG MORI
year: 2021
MODEL: CTX Alpha 500 V6
production hours: 13392
application type: Turning
Location: Hungary
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - DMG MORI CTX Alpha 500 V6

Control Unit

Control Brand: SIEMENS
Control Model: 840D with ShopTurn 3G

Movement

Number of Axes: 5

Technical Specification

Spindle Power: 13 kW
Spindle Speed: 6000 RPM

Additional Information

Additional equipment

CELOS Products
DMG MORI Service Agent
DMG MORI NetService
DMG MORI IoT Connector
DMG MORI Messenger V2 SERVICE Camera
Tail Stock
the 2 SMW-Autoblok BBD17/52 which can also be seen on the machine chuck.
and the addition of the software (tccentric turning and milling cycle, as well as a deburring toothing cycle).

Machine Benefits

Technical Machine Benefits

Hydraulic cylinder with Ø52 mm through-hole
12-position sauter turret
Vdi 30 tool mounting (din 69880-30)
Live tool interface (din 5480 standard)
Direct measuring scale on the x-axis
Tool system for turret: trifix® system (din 69880, vdi 3425, din 5480)
Y-axis: ±40 mm travel

Extra Information

Main Spindle Chuck SMW-Autoblok BBD 170/52 Counter Spindle Chuck SMW-Autoblok BBD 175/52 Counter Spindle Option Programmable tailstock force: Adjustable between 80-300 daN Media Coolant filtration: Dual-cartridge filter (50 μm) Coolant cleaning: External flushing system for spindles Coolant tank with 6-bar pump Automation Bar machining package: Fully hydraulic cylinder Ø52 mm Workpiece catcher with conveyor for parts Ø51 × 185 mm (max 3 kg) 4-color operating mode signal light Bar loader interface compatible with IEMCA, Breuning IRCO, LNS

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
