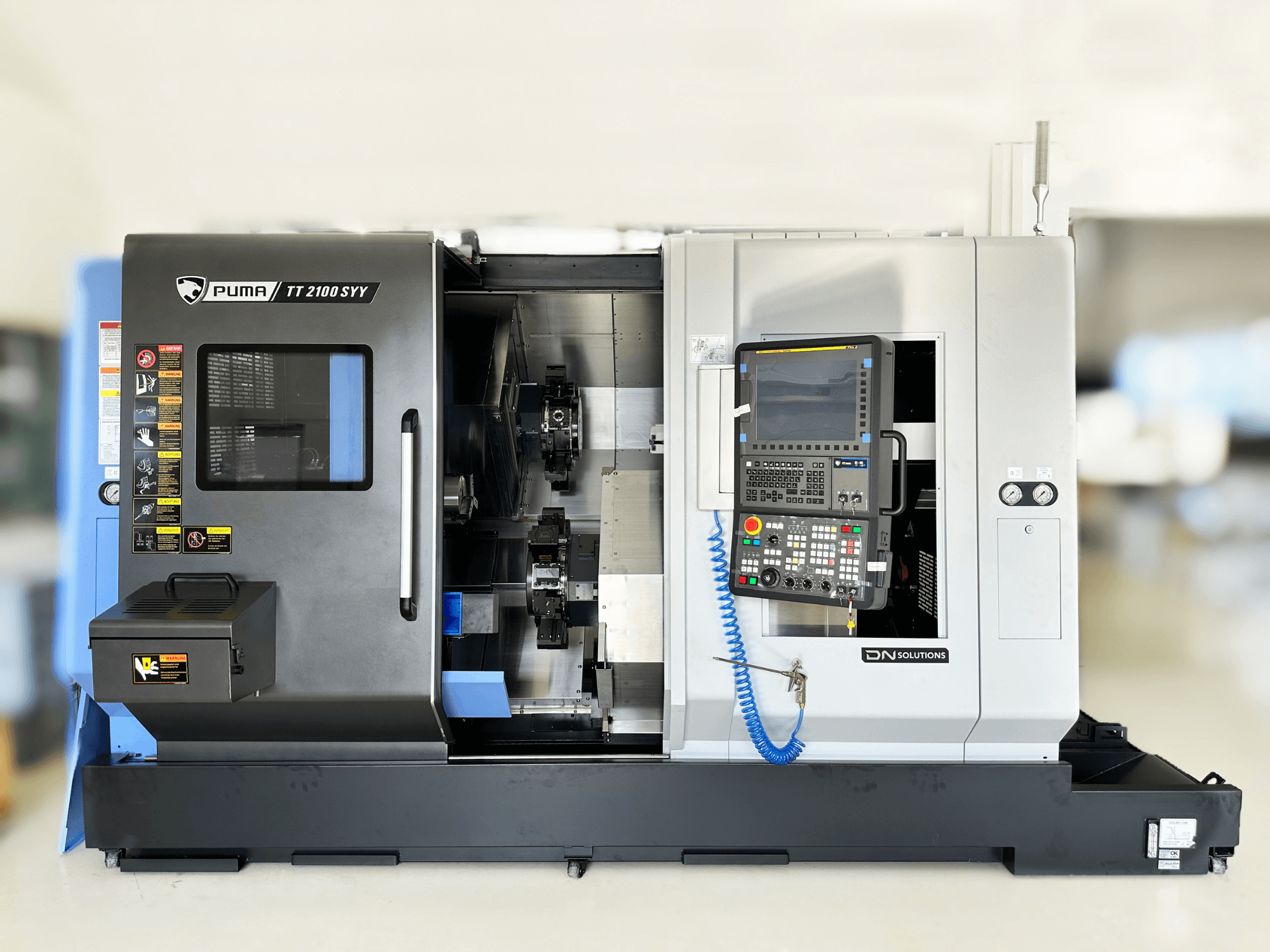

DN SOLUTIONS - PUMA TT2100SYYDE-TUR-PUM-2023-00002

• Chuck size: 8" (204 mm)

• Bar capacity: 65 mm

• X1/X2 travel: 165 / 100 mm

• Z1/Z2 travel: 700 / 700 mm

• Y1/Y2 travel: 30 / 40 mm

• Spindle motor power: 22 / 18.5 / 15 kW

• Turret stations: 24 (12 + 12)

• Turret interface: BMT 55

• Guideway type: High-rigidity linear roller guides

• Spindle type: Integral motor spindle with wide speed range

• Turret capability: Upper and lower turrets with Y-axis and 12 driven stations each

• Structural design: Highly stable Y-axis design for high-volume serial production

Additional equipment

• Cooling and filtration: High-pressure coolant through turret; Oil skimmer

• Sub-spindle features: Coolant supply through sub-spindle; Parts ejector

• Parts handling: Parts catcher; Parts conveyor for both spindles

• Calibration: Tool setter (auto-electric)

• Automation and interfaces: Air conditioning (electrical cabinet); Bar feeder interface; 3-color tower light

• Optional: Chip conveyor (hinge belt conveyor). Price on request

• Machine is delivered with standard basic package: Turret fully equipped, base holder included.

• Optional:

• 5 pcs. External turning tool holders SQ20, BMT 55 (500-0696)

• 2 pcs. Facing tool holders R/L (500-0701)

• 1 pc. Double external turning tool holder HS/GS (500-0868)

• 2 pcs. Double external turning tool holders HS (500-0705)

• 1 pc. Parting tool holder (500-0709)

• 7 pcs. Boring bar holders; BMT 55 ID 32 (500-0698)

• 2 pcs. Triple internal turning tool holder GS (500-0707)

• 2 pcs. Cover IK (500-0711)

• 1 pc. Reducing sleeve set Boring (n/a)

• 2 pcs. Reducing sleeve set OD 32 ID 20/25 (500-0710)

• 1 pc. Adapter set PRECI-FLEX ER25 (BMT 55P) (500-0523)

• 2 angled externally cooled external heat sinks Eppinger

• 2 straight externally cooled external heat sinks Eppinger

Additional Information

As new, showroom model
