➤ Used Hurco TMX8MYS For Sale | gindumac.com

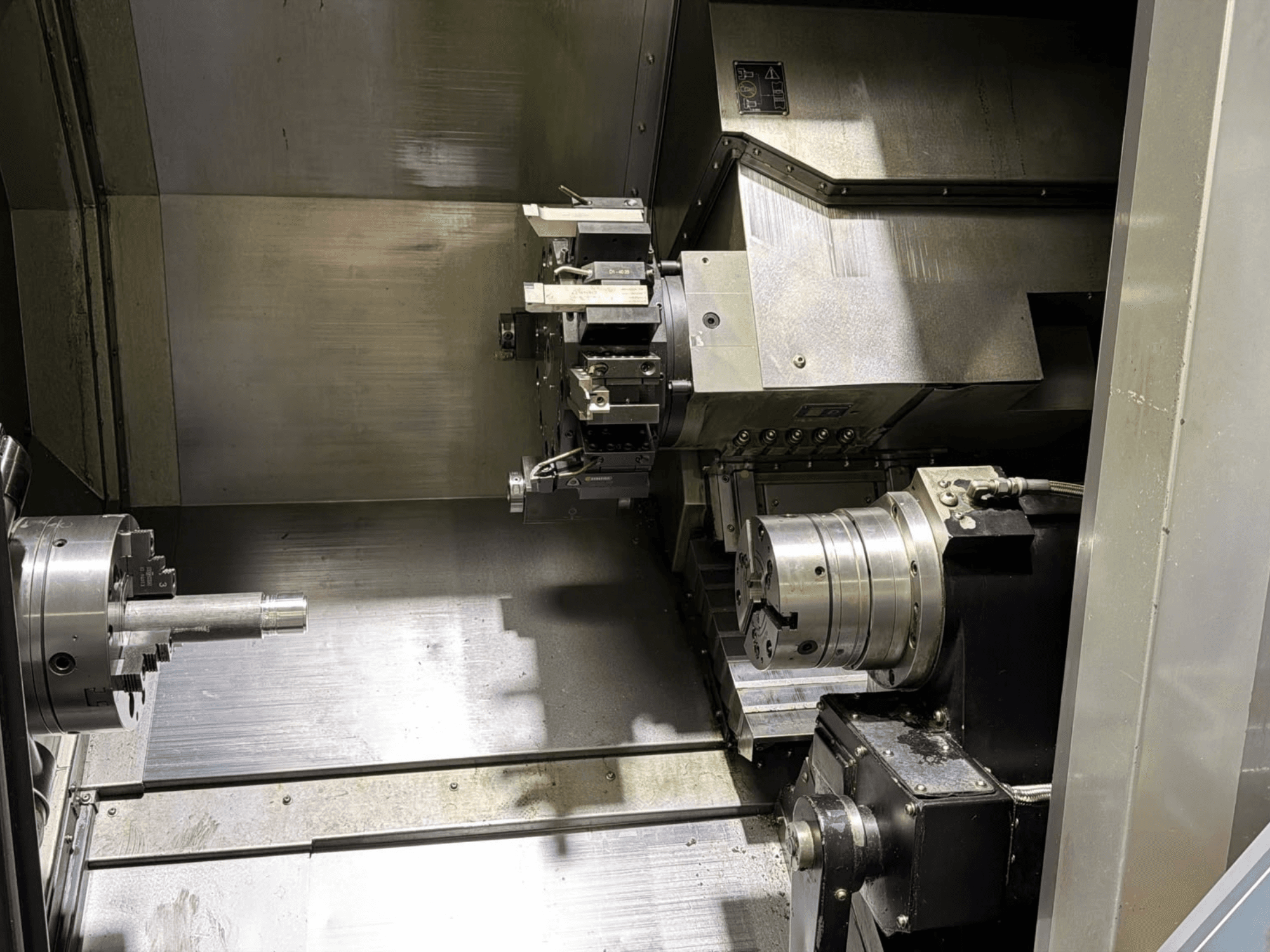

This 4-axis Hurco TMX8MYS was manufactured in 2014. It features a tool turret and includes a main spindle chuck, sub-spindle chuck, and parts catcher. With a robust design, this turn-mill centre is ideal for complex machining tasks. If you are looking to get high-quality turning and milling capabilities, consider the Hurco TMX8MYS turn-mill centre we have for sale. Contact us for further details.

Overview

brand: Hurco
year: 2014
MODEL: TMX8MYS
production hours: 31
application type: Turning
Location: Germany
machine type: Turn-Mill Centre

Technical Information - Hurco TMX8MYS

Movement

Number of Axes: 4
X-axis Travel: 285 mm
Z-axis Travel: 560 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes

Additional Information

- AC Voltage: 400 V (3 Phase)

- Frequency: 50 Hz

- Full Load: 53 KVA

- Largest Motor: 28 KVA

- Interrupt Capacity: 10000 AMPS

- Short Circuit Current: 5 kA RMS Symmetrical

- Max Ambient Temp: 35 DEG. C

- Max Volts: 400 V

- Inventory / Asset Number: Inv.-Nr.: 441007

- Machine Power-On Time: 31h : 31m : 2s

- Main Spindle Operating Time: 0h : 10m : 28s

- Driven Spindle Operating Time: 0h : 0m : 25s

- Counter Spindle Operating Time: 0h : 0m : 0s

- Additional Equipment: Tool turret, main spindle chuck, sub-spindle chuck, parts catcher, driven tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
