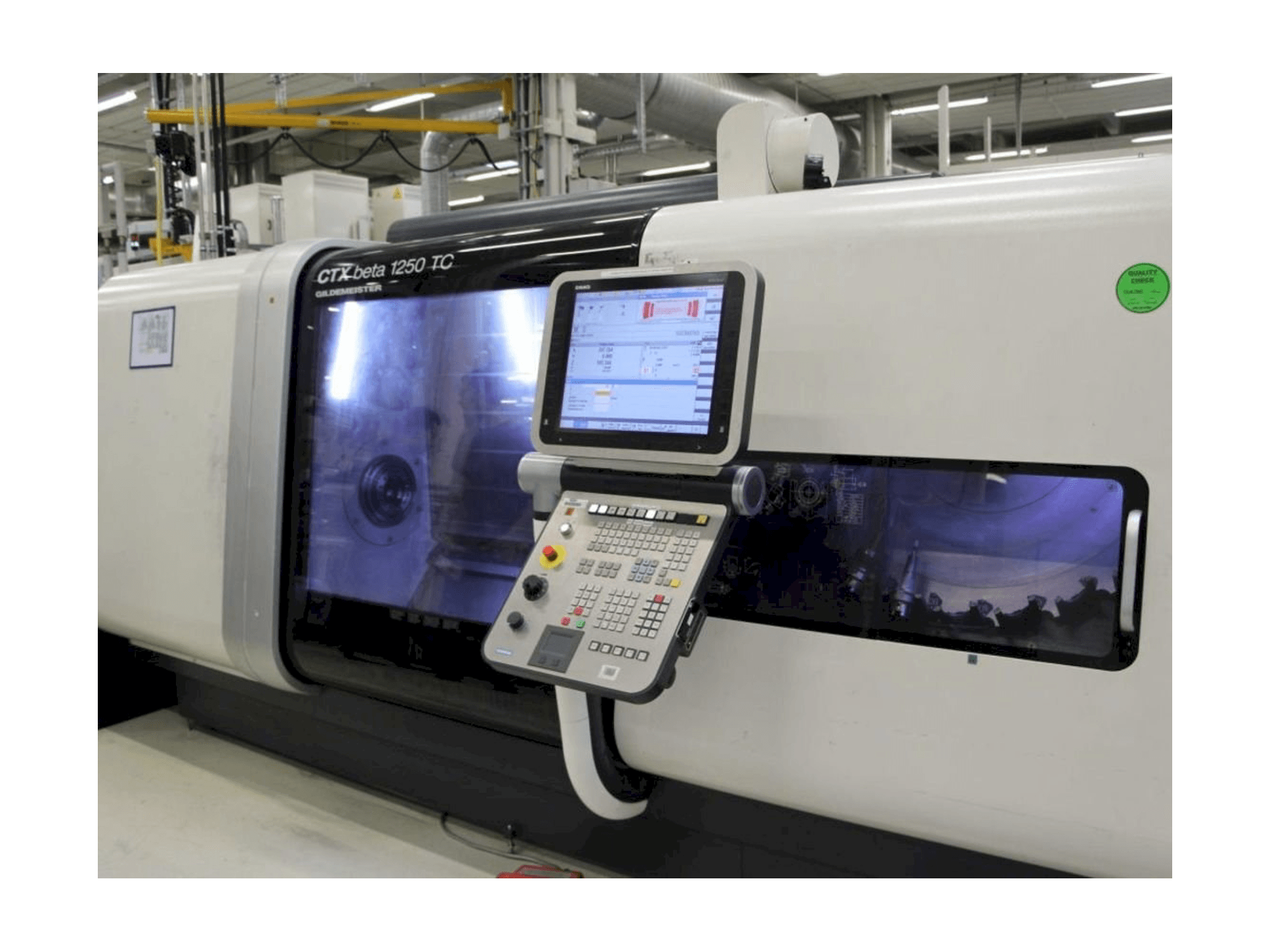

Front view of DMG MORI GILDEMEISTER CTX Beta 1250 TC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI CTX Beta 1250 TC

Photo Gallery

DMG MORI - CTX Beta 1250 TCMD-TUR-DMG-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG MORI GILDEMEISTER CTX beta 1250 TC lathe

This DMG MORI CTX Beta 1250 TC lathe was made in the year 2014 in Italy and has 27453 hours, of which 9161 are spindle hours. It is equipped with a Siemens control unit and has 3 axis. The machine has a max. swing diameter over a bed of 500 mm and a max. swing diameter over a slide of 500 mm.

Overview

brand: DMG MORI
year: 2014
MODEL: CTX Beta 1250 TC
production hours: 27453
application type: Turning
Location: Moldova
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - DMG MORI CTX Beta 1250 TC

General Data

Measurements width: 5700 mm
Measurements depth: 2550 mm
Measurements height: 2200 mm
Machine weight: 8500 kg

Control Unit

Brand: SIEMENS

Main drive

Number of axis: 3

Movement

Y-AXIS Movement: 200 (+/- 100) mm
B-AXIS Movement: 220 (+/- 110) °

Tools

Max weight: 7 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Including documentation as well as software

Technical Machine Benefits

Max. Swing diameter over bed: 500 mm
Max. Swing diameter over slide: 500 mm
Distance between centres: 1425 mm
Spindle nose height from the ground: 1040 (1010 + 30) mm
Tailstock travel: 1200 mm
Machine is equipped with a chip conveyor and a tailstock

Extra Information

attention: The tools shown on the photos are not in scope of delivery! attention: Mandrel as well as coolant treatment installations and pump is not in scope of delivery!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
