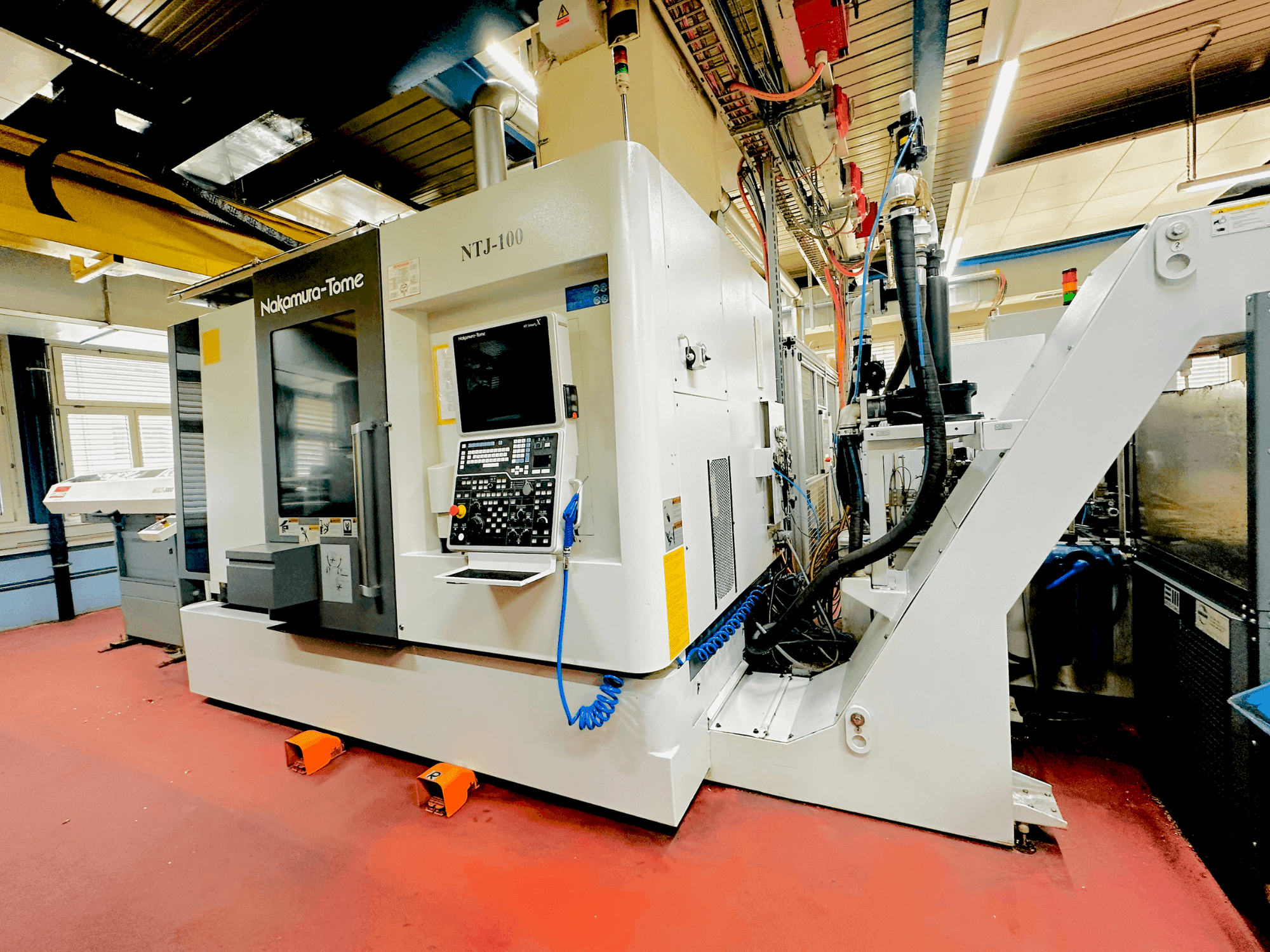

NAKAMURA - NTJ100CH-TUR-NAK-2017-00001

• Increased bar capacity: 65 mm left, 51 mm right

• Workpiece measurement: han-bei measuring probe for automatic workpiece measurement (infrared or radio type) for left and right spindle

• Left + right, with auto swing-in type and 2x 4 measuring directions for quick and precise tool setting via the nc function.

• Operating time 43399h

• Coolant system: coolant through spindle (CTS); coolant float switch for machine stop on low level; additional coolant flushing via the spindle (left and right)

• Bar capacity: Ø 51 mm

• Parts catcher type A with collecting tray, max. Ø 65 x 150 mm, 3.0 kg, spindle side, left, with plastic lining

• Chuck blow-out device for left spindle

• Automatic power shut-off

• Preparation for oil mist extraction system with connection nozzle Ø 150 mm

• Robot/automation prep: pneumatic flap for robot handling on top of the door, opening approx. 400 x 400 mm

• Handwheel for manual tracking of defined contours

• Data server with 1 GB ATA memory card

• Interface for KNOLL system

• Triple signal light


Samsys bar loader with a 1.5 m bar loading capacity has the following dimensions: Length: 225 cm + 43 cm intermediate guide Width: 120 cm (including loading ramp and control panel) Height: 145 cm or 180 cm with the flap open

The machine was mainly used to process aluminium (95%).

Additional equipment

• Samsys bar loader, including extension

• Absolent extraction system

• Slat-belt chip conveyor with interface, time-interval control, and alarm evaluation
