DOOSAN - LYNX 2100LSYAGR-TUR-DOO-2020-00002

Name: DOOSAN LYNX 2100LSYA
Brand: DOOSAN
SKU: GR-TUR-DOO-2020-00002
Price: 99000 EUR
Availability: InStock

99,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used DOOSAN Lynx 2100LSYA - 2020 - Lathe for sale | gindumac.com

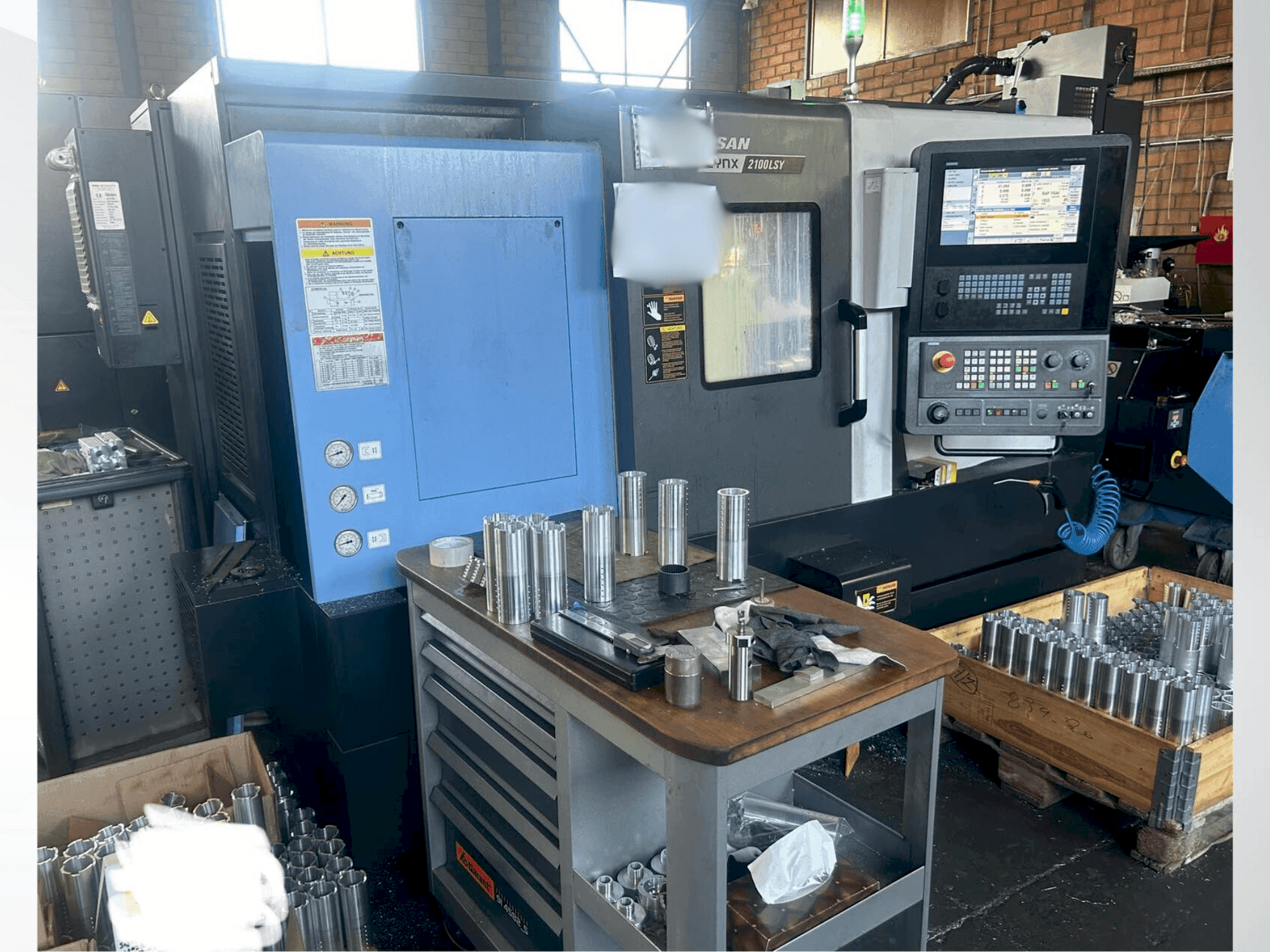

This 5-axis DOOSAN Lynx 2100LSYA lathe was manufactured in 2020. Featuring a SIEMENS SINUMERIK 828D control, it offers spindle speeds up to 6000 rpm and includes a sub-spindle for versatile operations. With a max turning diameter of 300 mm and length of 510 mm, it also has driven tools and rapid traverse rates up to 36 m/min. Consider this Doosan Lynx 2100LSYA lathe, ideal for advanced turning tasks. For more information, please reach out to us.

Overview

brand: DOOSAN
year: 2020
MODEL: LYNX 2100LSYA
application type: Turning
Location: Greece
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - DOOSAN LYNX 2100LSYA

Control Unit

Model: SINUMERIK 828D
Brand: SIEMENS

Main drive

Number of spindles: 2
Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 205 mm
X-AXIS Working Feed: 30 m/min
Y-AXIS Movement: 105 mm
Y-AXIS Working Feed: 10 m/min
Z-AXIS Movement: 560 mm
Z-AXIS Working Feed: 36 m/min

Turret

Number of turrets: 1

Media

Chip conveyor: Yes

Additional Equipment

- OD and face tool holder of main spindle// Double OD and face tool holder of main and sub spindle
- ID tool holder of main spindle// Double ID tool holder of sub spindle
- Triple ID tool holder
- U-Drill cap of Main and sub spindle
- Straight (short) milling tool unit
- Anglular an Anglular (offset) milling tool unit
- Boring tool sleeves of main and sub spindle// U-drill sleeves
- Milling adapters
- SERVO 24ST turret (mechanism/station)
- BMT-45P 20/32 mm Holder mounting type tool size (turning/boring)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum turning diameter: 300 mm
- - Maximum turning length: 510 mm
- - Sub-spindle
- - Driven tools
- - Counter spindle
- - High-speed operations with multiple spindle configurations.
- - Chucks of the main spindle has hard jaws and that of sub spindle has a set of soft jaws.
- - Machine is also equiped with an extra module from siemens for in process tool measuring cycles for tool breakage detection.
Qualitative Machine Benefits:
- - Dvanced control system ensures high precision and operational efficiency.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
