➤ Used Takisawa TS-4000YS For Sale | gindumac.com

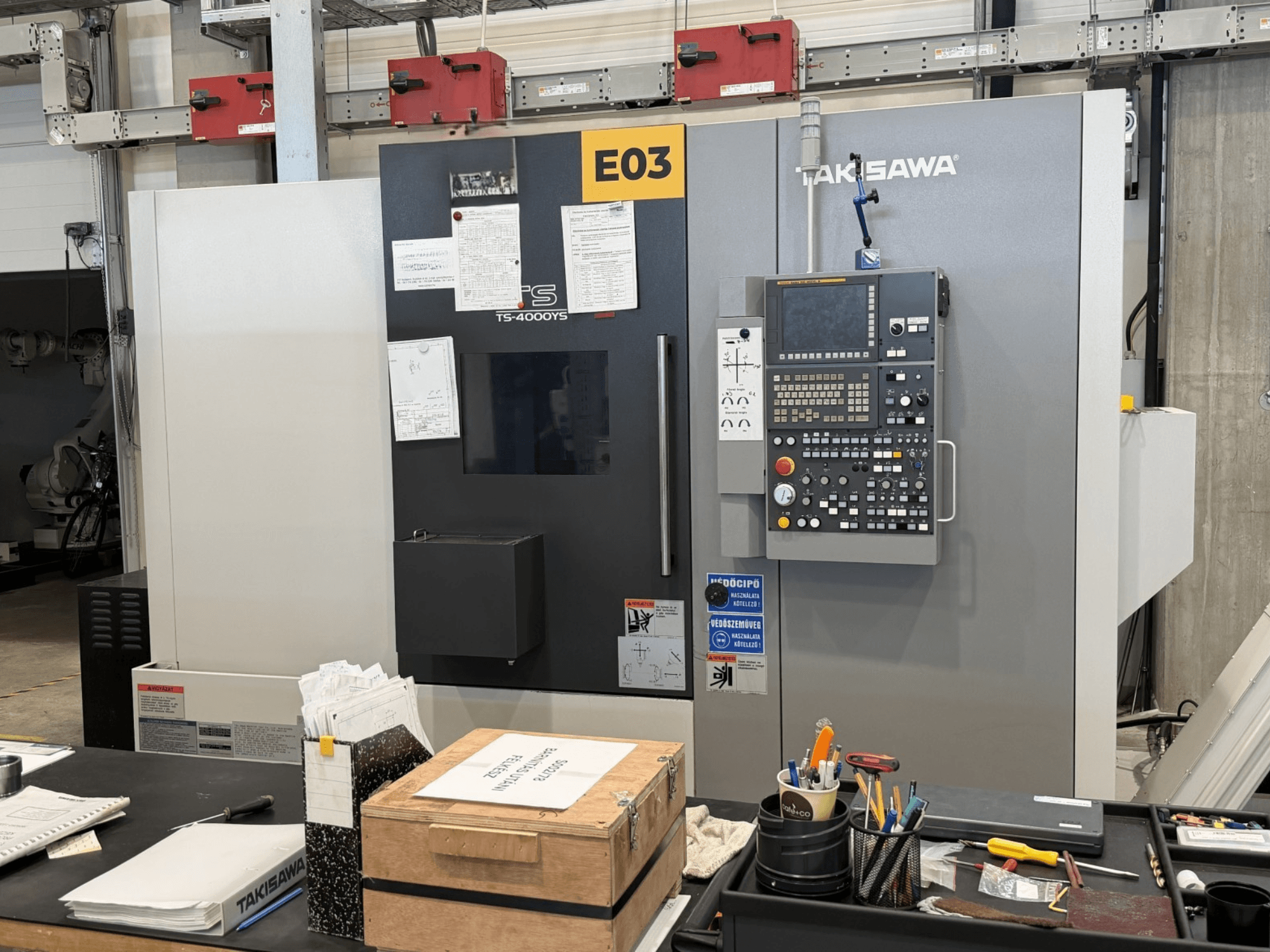

This 6-axis Takisawa TS-4000YS was manufactured in 2021. It features a maximum swing diameter of Ø 600 mm and a turning diameter of Ø 370 mm with a length of 750 mm. The machine includes a powerful 22 kW main motor and a counter spindle with a speed of 6000 rpm. If you are looking to get high-quality turning capabilities, consider the Takisawa TS-4000YS turn-mill centre we have for sale. Contact us for further details.

Overview

brand: Takisawa
year: 2021
MODEL: TS-4000YS
application type: Turning
Location: Hungary
machine type: Turn-Mill Centre
Available from: 28/08/2026
control unit brand: FANUC

Technical Information - Takisawa TS-4000YS

Control Unit

Control Brand: FANUC
Control Model: 32i-B

Dimensions

Machine Height: 2300 mm
Machine Length: 3000 mm
Machine Weight: 6200 kg
Machine Width: 2140 mm

Movement

Number of Axes: 6
X-axis Travel: 325 mm
Z-axis Travel: 840 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Power: 22 kW
Spindle Speed: 4200 RPM

Additional Information

Capacity:
- Max. swing diameter: Ø 600 mm
- Max. turning diameter x length: Ø 370 x 750 mm
- Bar capacity: Ø 82 mm
Main spindle:
- Spindle centerline height from floor: 1140 mm
- Bearing/bore diameter: Ø 140 / Ø 90 mm
- Spindle nose: A2-8
- C-axis resolution: 0,001°
Counter spindle:
- Spindle centerline height from floor: 1140 mm
- Bearing/bore diameter: Ø 90 / Ø 53 mm
- Spindle nose: F-140
- Speed: 6000 rpm (1/min)
- C-axis resolution: 0,001°
Strokes:
- Y: -50 ~ +70 mm
- A: 780 mm
Rapid traverses:
- X: 30 m/min
- Z: 30 m/min
- Y: 10 m/min
- A: 30 m/min
Power:
- Main spindle motor (30 min. / 100% ED): AC 22 / 15 kW
- Max. torque (main spindle): 618 Nm (S3 25%)
- Counter spindle motor (30 min. / 100% ED): AC 11 / 7,5 kW
- Max. torque (counter spindle): 175 Nm (S3 25%)
Driven tools:
- Turret stations: 12 pcs
- Max. speed: 6000 rpm (1/min)
- Drive power (S3 25% / 100% ED): 7,5 / 3,7 kW
- Max. torque: 48 Nm
Tooling:
- Tool shank cross-section: 25 x 25 mm
- Boring bar diameter: Ø 50 mm
Control: CNC path control FANUC 32i-B

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
