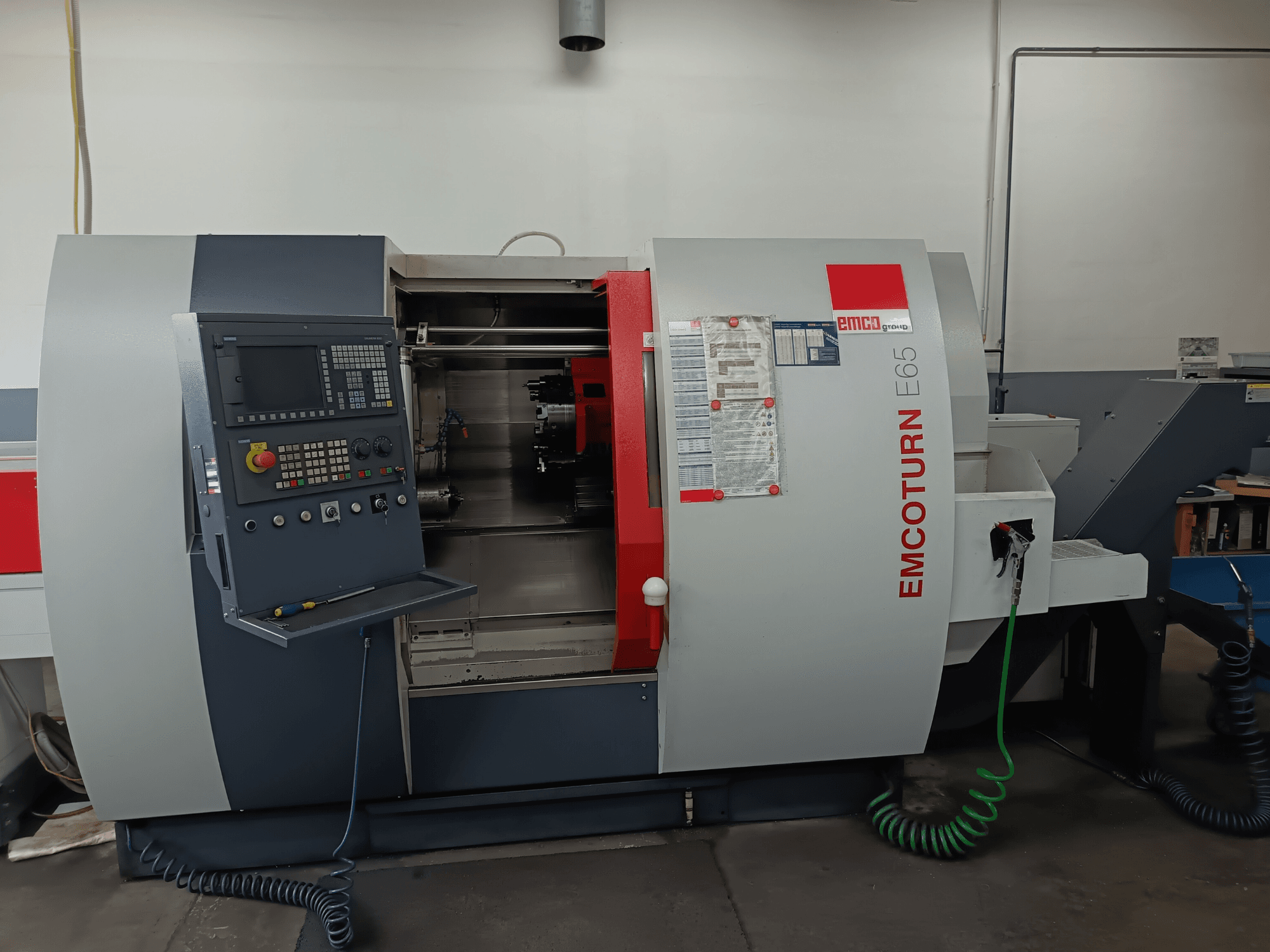

EMCO - EMCO EMCOTURN E65 SI-TUR-EMC-2018-00001

• Work area:

  • Swing over bed: Ø610 mm

  • Swing over cross slide: Ø360 mm

  • Distance between centers: 682 mm

  • Distance between spindle noses: 840 mm

  • Max. machining diameter: Ø500 mm

  • Max. machining length: 520 mm

  • Max. bar capacity: Ø65 mm

• Main spindle (belt driven):

  • Torque (40% DC): 305 Nm

  • Spindle nose: A2-6

  • Bearing Ø: 105 mm

  • Spindle bore: Ø73 mm

  • Max. chuck size: Ø250 mm

• Counter spindle:

  • Speed: 60–5000 rpm

  • Power (40% DC): 11 / 16.5 kW

  • Torque (40% DC): 80 / 125 Nm

  • Spindle nose: A2-6

  • Spindle bore: Ø73 mm

  • Max. chuck: Ø200 mm

• C-axis:

  • Resolution: 0.001°

  • Rapid speed: 100 rpm

• Turret (VDI30):

  • Tool stations: 12

  • Driven tools: yes

  • Max. speed: 5000 rpm

  • Max. power: 6.7 kW

  • Max. torque: 25 Nm

  • Indexing time: 0.2 s

• Rotary tools (VDI30):

  • Speed: 0–5000 rpm

  • Torque: 25 Nm

  • Power: 6.7 kW

• Feed drives:

  • Rapid traverse (X/Y/Z): 30 / 15 / 30 m/min

  • Feed thrust X: 5000 N

  • Feed thrust Z: 7000 N

  • Acceleration: 0.4 m/s²

• Tailstock:

  • Travel: 500 mm

  • Force: 8000 N

  • Taper: MT4

• Coolant system:

  • Tank capacity: 230 l

  • Pump power: 0.57 / 2.2 kW

  • Pressure: 3.5 bar (optional 14 bar)

  • Flow rate: 15 / 65 l/min

• Hydraulic unit:

  • Tank: 10 l

  • Max. pressure: 50 bar

• Pneumatics:

  • Pressure: 6 bar

  • Air consumption: 5 l/min

• Power supply:

  • Voltage: 3x400V

  • Frequency: 50/60 Hz

  • Connected load: 25 / 39 kVA

• Noise level:

  • Average: 75 dB(A)

• Key features:

  • C-axis main spindle

  • Driven tools

  • Hydraulic tailstock

  • ShopTurn programming

  • USB + Ethernet

  • 15" touchscreen + 3D simulation

  • CE documentation

Additional equipment

• Bar feeder: EMCO SL1200

  • Bar diameter: 8–95 mm

  • Bar length: 150–1200 mm

  • Feed rate: 60 m/min

  • Capacity: 10 bars Ø55 mm / 70 bars Ø8 mm

  • Weight: ~500 kg

• Collet chuck: HAINBUCH BZI 100 (A2-8)

  • Max. capacity: Ø100 mm

  • Incl. part stop

  • Max. speed: 5000 rpm

• Parts catcher:

  • Max. length: 175 mm

  • Max. diameter: 65 mm (optional 95 mm)

  • Max. weight: 4.5 kg

• Chip conveyor:

  • Length: 1200 mm

  • Suitable for: long chips, snarled chips, dry & wet machining

• Coolant pistol (Multiflow):

  • Adjustable jet + solenoid valve

  • Magnetic holder + spiral hose
