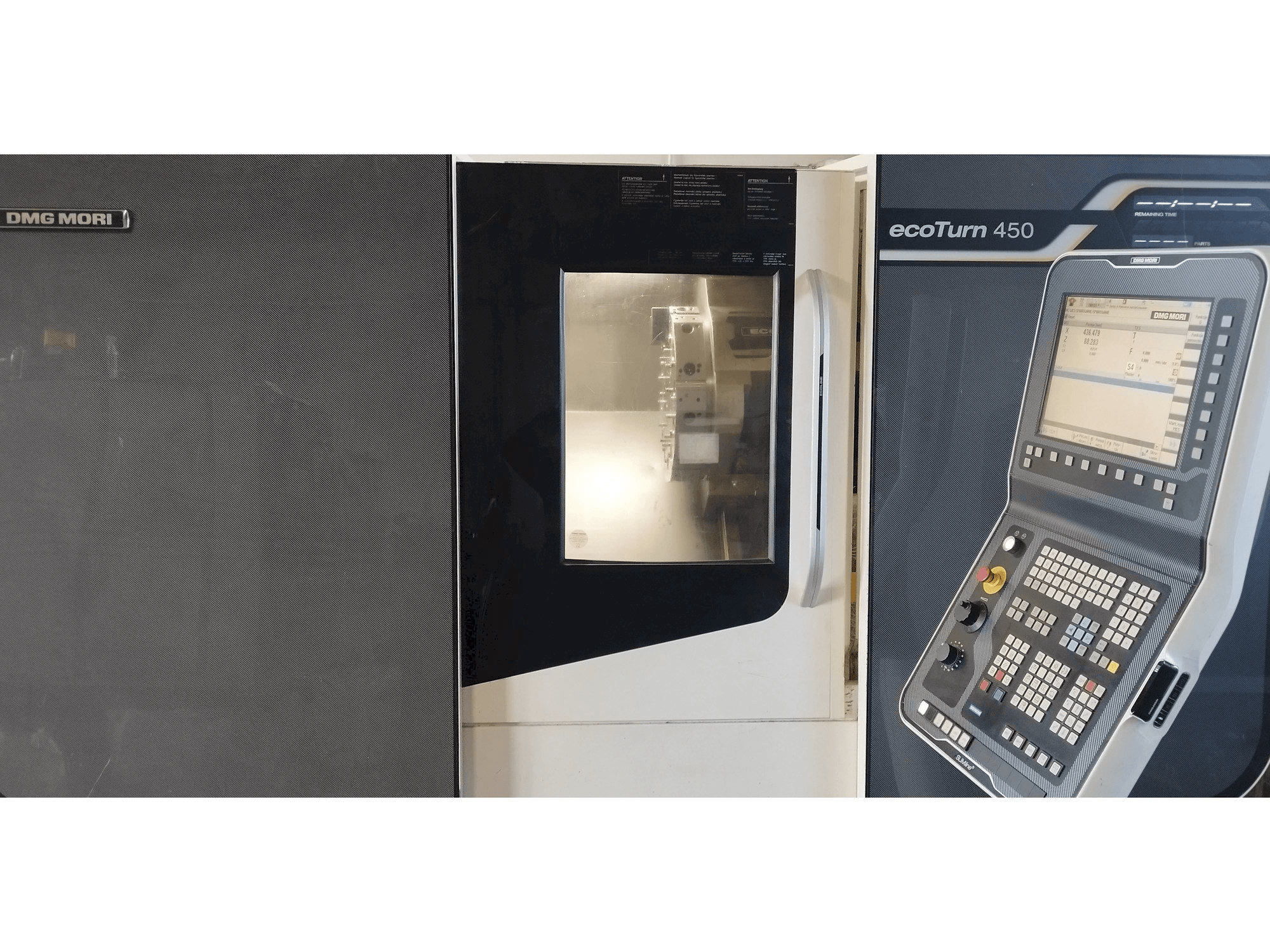

Front view of DMG MORI EcoTurn 450 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI EcoTurn 450

DMG MORI - EcoTurn 450PL-TUR-DMG-2015-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG MORI EcoTurn 450 Lathe

This DMG MORI EcoTurn 450 Lathe was made in 2015 and has 8055 production hours, of which 4360 are spindle hours. It is equipped with a DMG MORI SIEMENS 840D / SLIMline control unit and has 2 axis. The machine has a spindle speed of 4000 rpm, is in good condition and well maintained.

Overview

brand: DMG MORI
year: 2015
MODEL: EcoTurn 450
production hours: 8055
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - DMG MORI EcoTurn 450

General Data

Measurements width: 3000 mm
Measurements depth: 2440 mm
Measurements height: 1905 mm
Machine weight: 5200 kg

Control Unit

Model: SIEMENS 840D/ SLIMline

Main drive

Spindle speed range: 4000 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 267.5 mm
Z-AXIS Movement: 600 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum swing: 650 mm
- - Swing over cross slides: 465 mm
- - Max turning diameter. : 400 mm
- - Max turning z axis: 550 mm
- - Diameter of collet chucks 250/315 mm
- - Spindle tip diameter (flange) fl170 h5 mm
- - Spindle passage diameter: 87 mm
- - Max bar capacity: 600 mm
- - Front bearing diameter :130 mm
- - Ac main drive power (40% / 100% ed) 17. 5 / 12. 5 kw
Qualitative Machine Benefits:
- - Torque (40% / 100% ed) 370 / 280 nm
- - Number of driven tools: 12
- - Tool interface: vdi 40
- - The machine in very good condition ready for test.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
