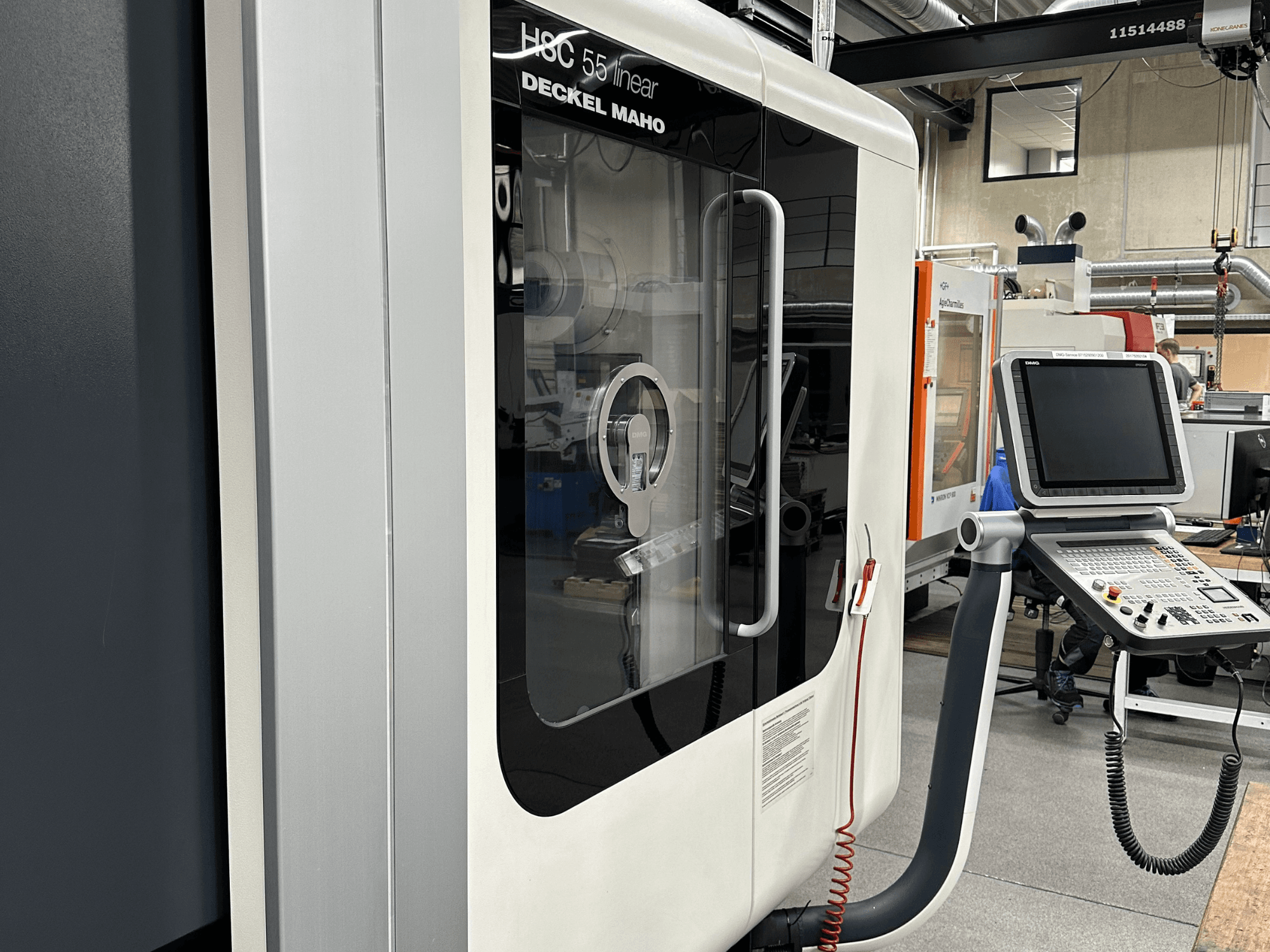

Left view of DMG MORI HSC 55 linear  machine

DMG MORI HSC 55 linear

DMG MORI - HSC 55 linear

2011

169,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DMG Mori HSC 55 linear Universal Machining Center was manufactured in the year 2011 and has 61913 control hours, 59275 machines on hours, 10986 program run hours, and 10631 Spindle running time (spindle exchange at approx.7300 hours). The machine has a spindle speed of 20 - 28000 rpm. It is equipped with a Heidenhain iTNC 530 control unit and has 5 axis.

Overview

  • brand: DMG MORI
  • year: 2011
  • MODEL: HSC 55 linear
  • production hours: 61913
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (universal)
  • availability: Immediately
  • control unit brand: Heidenhain
  • GINDUMAC ID: DE-MIL-DMG-2011-00003

Technical Information

Control Unit

  • Brand: Heidenhain
  • Model: iTNC 530

Main drive

  • Spindle speed range: 20 to 28,000 rpm 1/MIN
  • Spindle motor power: 29/22 kW (40/100%ED)
  • Number of axis: 5

Movement

  • X-AXIS Movement: 450 mm
  • X-AXIS Rapid traverse: 80 m/min
  • Y-AXIS Movement: 580 mm
  • Y-AXIS Rapid traverse: 80 m/min
  • Z-AXIS Movement: 400 mm
  • Z-AXIS Rapid traverse: 80 m/min
  • C-AXIS Movement: 360° MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Measuring length: 400 x 400 mm
      • - Axial run-out of the clamping surface Ø 350 mm
      • - Axial stability of the work spindle: 0,005 mm
      • - Spindle nose : 250 mm
      • - Tool holder hsk-a63 according to din69893
      • - Pickup tool changer 16 places (chain)
      • - Active cooling unit for main spindle and linear drives
      • - Active cooling unit for control cabinet
      • - Direct absolute measuring system incl. Sealing air
      • - Coolant/blast air changeover
    • Qualitative Machine Benefits:
      • - Z-axis extension to z = 460mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
