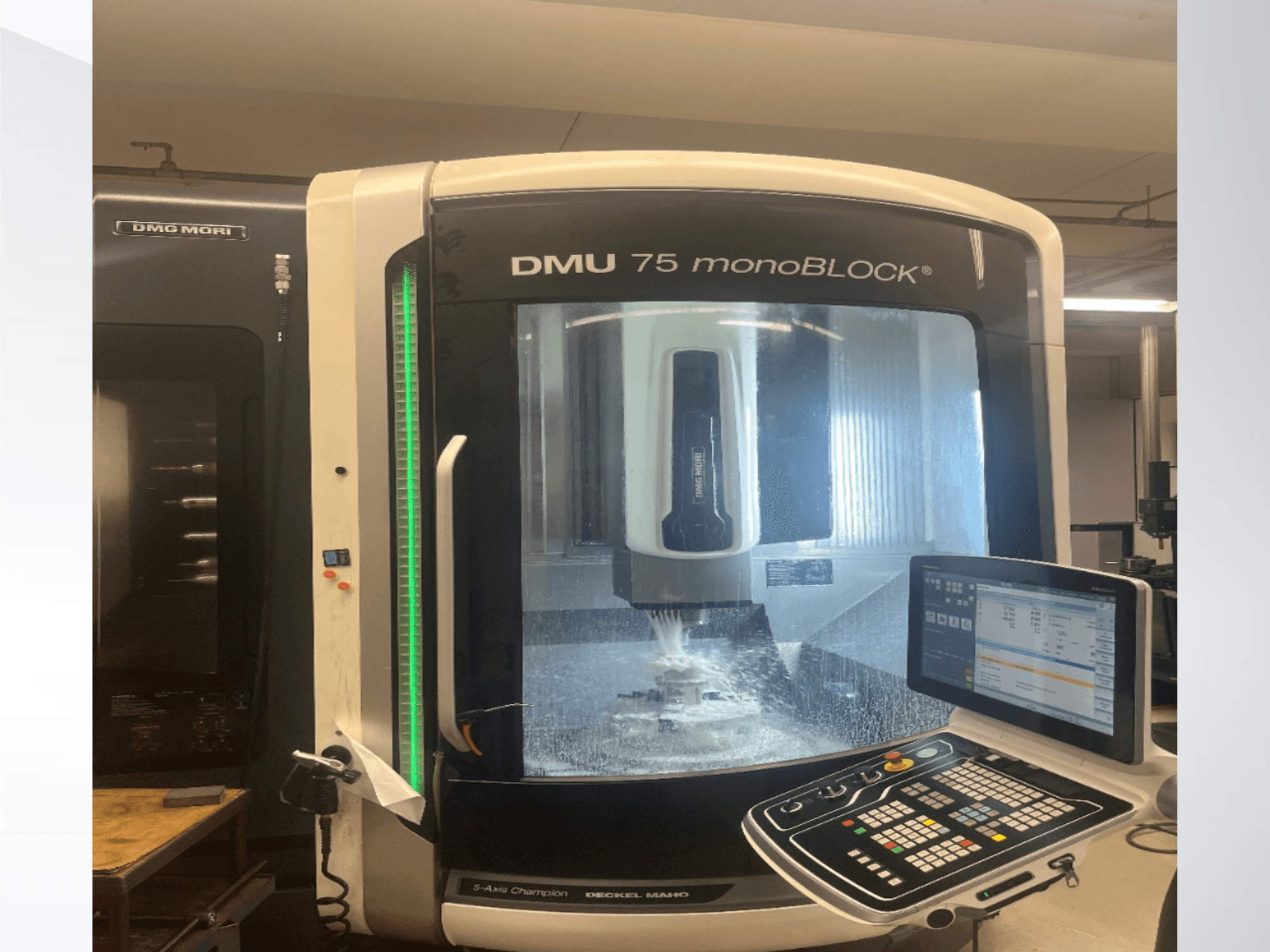

DMG MORI - DMU 75 monoBLOCKDE-MIL-DMG-2017-00007

- Spindle Power: 35 kW (40% duty cycle), 25 kW (100% duty cycle)

- Tool Taper: HSK-A 63 according to DIN 69893)

- Tool Magazine: Chain magazine with double gripper, 60 tool pockets (HSK-A63)

- NC Swivel Rotary Table: Integrated in rigid table, 800 mm x 650 mm

- Control System: CELOS with Siemens 840D sl Operate, including 21.5" ERGOline Control with Multi-Touch Screen

- Features: MPC (Machine Protection Control), Chip flushing, Integrated coolant tank 500 l

- Coolant / Chip Disposal included:

* Production Package: Scraper belt chip conveyor with coolant system 600 liters, paper band filter, discharge height 950 mm, width 670 mm

* Internal Coolant Supply (IKZ): 40 bar / 20 l/min through spindle center (AD)

* External Coolant Supply: 4 bar / 40 l/min

* Washdown Pistol with pump (2 bar / 10 l/min)

* Oil and Emulsion Mist Extraction System: Mechanical filter, airflow rate 600 m³/h

- Measuring / Monitoring:

* Infrared Measuring Probe: Heidenhain TS 649 (HSK-A63)

* 3D quickSET: Tooling check and inspection of kinematic accuracy for 4/5-axis machine configurations
