➤ Used MTcut UDS80H-5A For Sale | gindumac.com

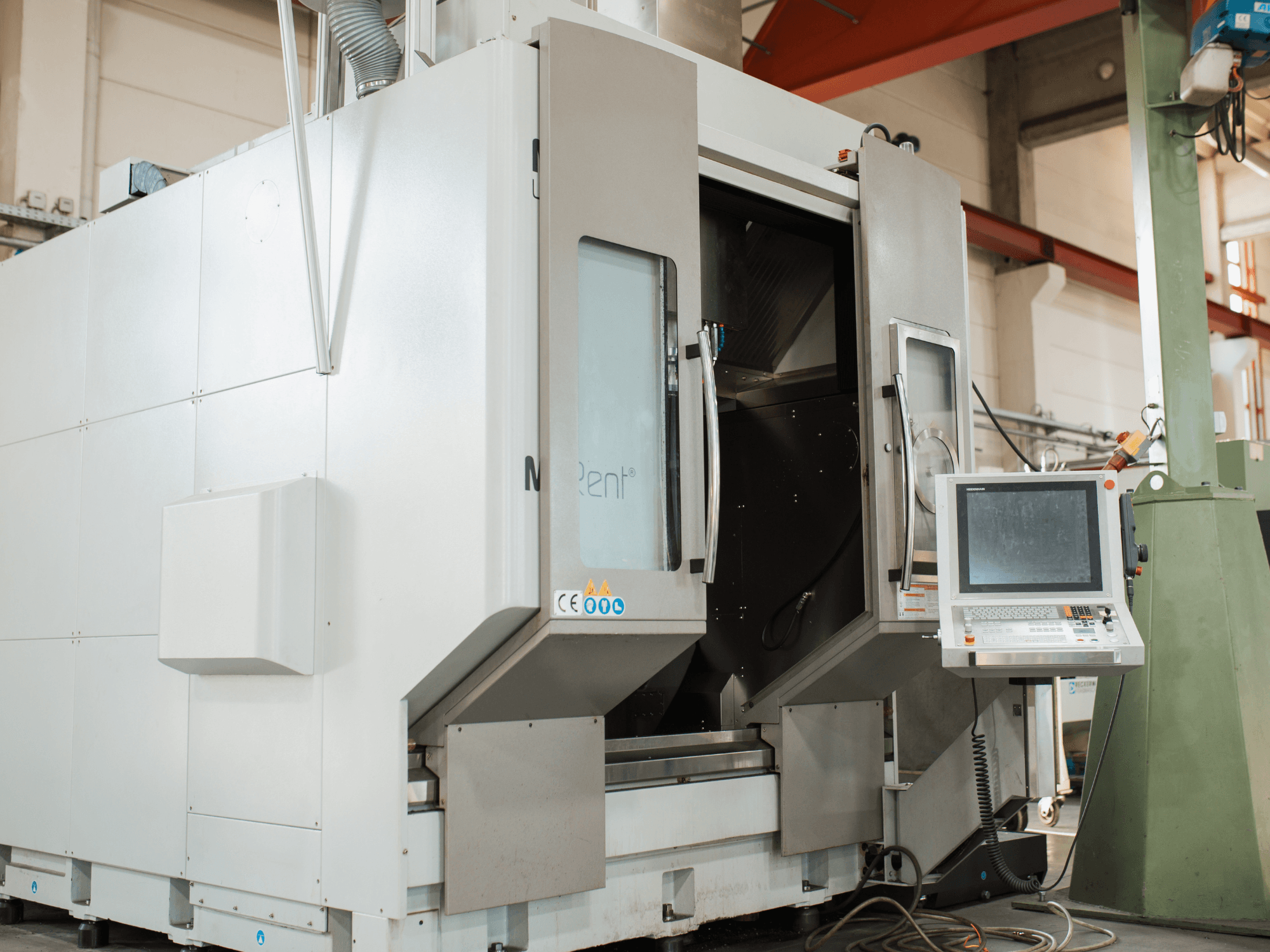

This 5 axis MTcut UDS80H-5A was manufactured in 2019. It features a 20,000 rpm spindle, 120 Nm torque, and 35 kW drive power. Equipped with a HSK63 tool holder, 96-position tool changer, and a Kessler rotary tilting table with an 800 mm diameter. Includes Heidenhain TNC 640 control, 15" TFT screen, and Ethernet connectivity. Ideal for precision machining with its Heidenhain glass scales and BLUM laser tool measurement. Contact us for more information about this machine.

Overview

brand: MTcut
year: 2019
MODEL: UDS80H-5A
production hours: 2215
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MTcut UDS80H-5A

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 640

Movement

Number of Axes: 5

Technical Specification

Spindle Power: 35 kW
Spindle Speed: 20000 RPM
Taper Size: HSK 63

Additional Information

Operating hours: Control unit 6,904 h; Machine 5,480 h; Program runtime 2,215 h
Spindle: 120 Nm torque, separate spindle cooling for constant temperature
Tool interface: HSK63 with blow-out function
Rotary table: 800 mm diameter; Kessler rotary tilting table with 2 A-axes and 1 C-axis, direct-drive torque motors
Feedback: Heidenhain glass scales in all 5 axes
Tool changer: 96 positions with double-arm gripper
Control: 15" color TFT screen
Connectivity: Ethernet interface, 2x USB ports
Control functions: Plain text programming; short block processing time; create new program while another is running; proven Heidenhain machining cycles
Electronic handwheel
CE certified

Additional equipment

Chip conveyor
Coolant system
Internal high-pressure coolant 50 bar with belt filter system
Coolant and compressed air gun
BLUM laser tool measurement
Heidenhain TS460 workpiece probe system for HSK63 with radio and infrared transmission
Heidenhain KinematicsOpt including Heidenhain calibration sphere KKH 250
Extraction system: Filtermist FX4002, air volume 1,250 m³/h
Rotating viewing window
Work area light
Tool package

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
