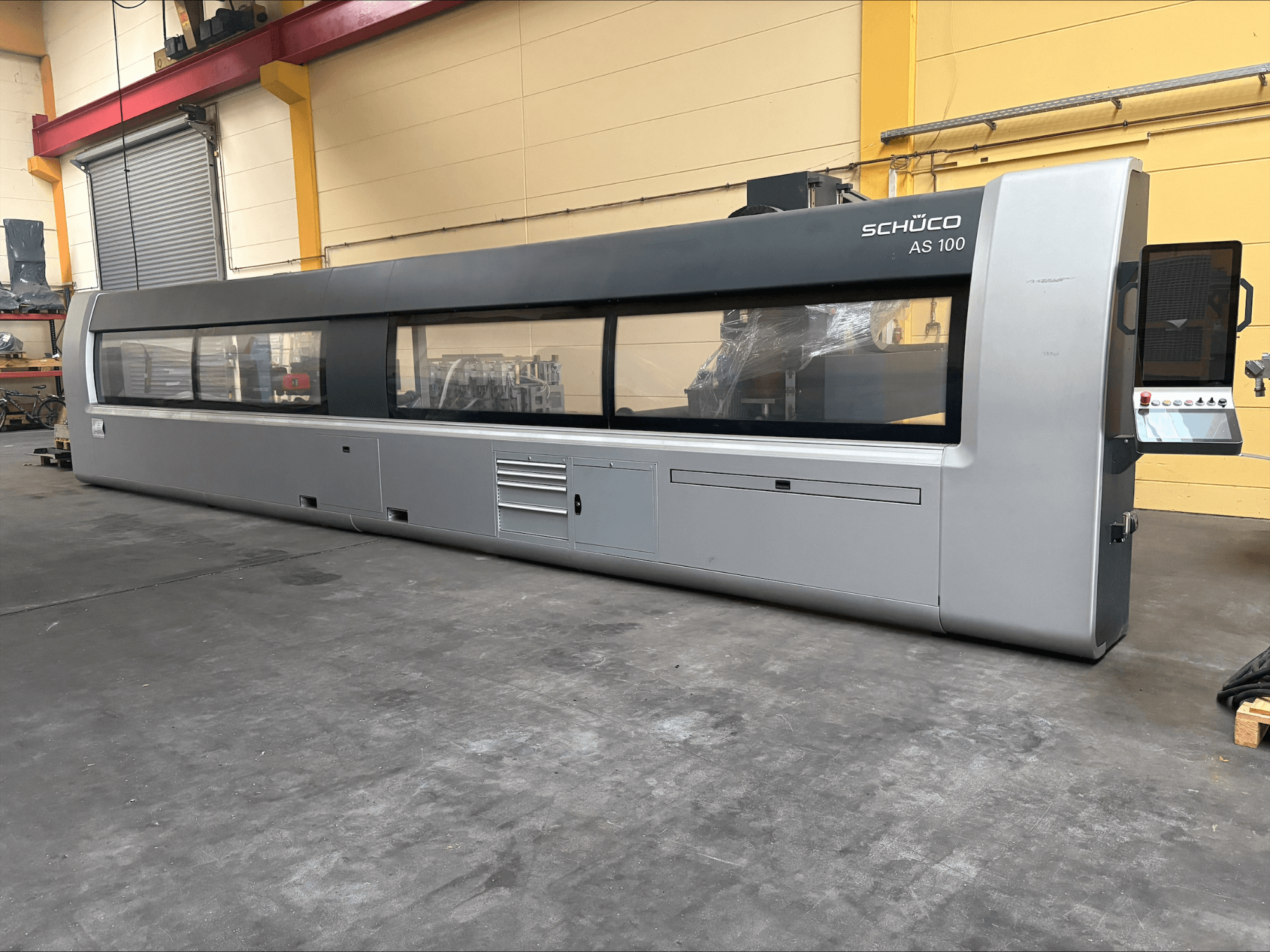

This 5-axis SCHÜCO AS 100 was manufactured in 2022. It features a machine bed length of 9,000 mm and allows for 6-sided processing with two 5-axis towers. The machine includes 5 movable clamping blocks with independent drives and a saw blade diameter of 450 mm. If you are looking to get high-quality profile machining capabilities, consider the SCHÜCO AS 100 universal machining centre we have for sale. Contact us for further details.
Overview
- brand: SCHÜCO
- year: 2022
- MODEL: AS 100
- production hours: 6314
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand:
Technical Information - SCHÜCO AS 100
Dimensions
- Machine Height: 3125 mm
- Machine Length: 7170 mm
- Machine Weight: 26500 kg
- Machine Width: 22000 mm
Movement
- Number of Axes: 5
- X-axis Travel: 8500 mm
- Y-axis Travel: 740 mm
- Z-axis Travel: 1120 mm
Technical Specification
- Spindle Power: 12 kW
- Spindle Speed: 24000 RPM
Additional Information
Machine bed length: 9,000 mm
Max profile length: 7,500 mm
Machining units: 2 x 5-axis towers
Machining sides: 6-sided processing possible
Clamping units: 5 movable clamping blocks with independent drives
Saw blade diameter: 450 mm
Cutting angle: 90° (per cutting diagram)
Control: AS 100 control module (leased via SchüCal)
Software: SchüCal integration
Additional equipment
Combined loading and unloading magazine
Barcode scanner (included); optional portable barcode scanner
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
