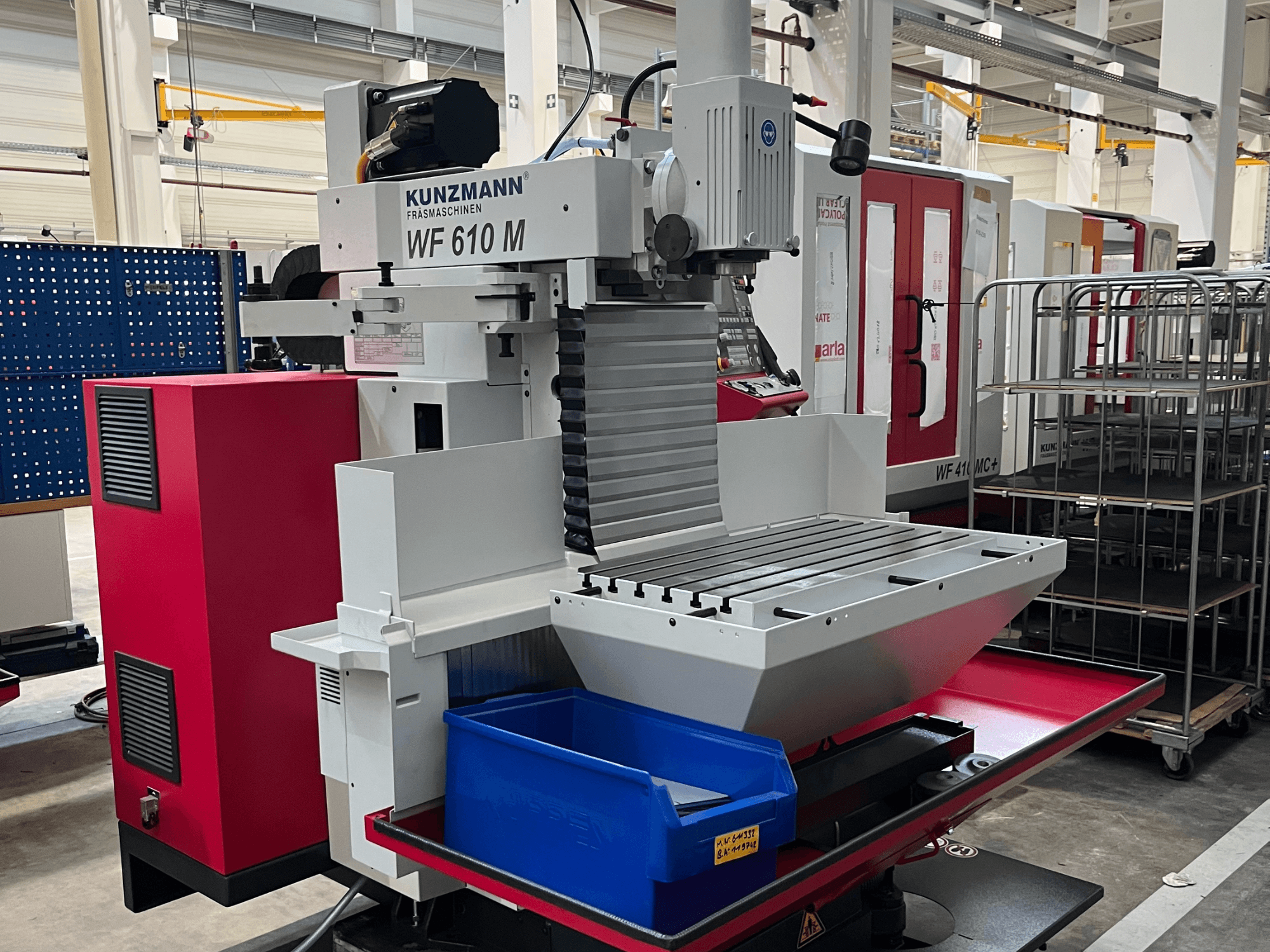

KUNZMANN - WF 610 MDE-MIL-KUN-2026-00001

- New Machine

- Main drive: Electronically regulated stepless main drive for vertical milling spindle

- Spindle drive power: 8.5 kW (S1 - 100% ED) / 16.2 kW (S6 - 25% ED)

- Tool interface: SK 40 DIN ISO 7388

-1 Form AD (formerly DIN 69871 Form AD) with pull stud DIN ISO 7388-3 Form AD (formerly DIN 69872)

- Feed drives: Electronically regulated stepless servo drive per axis

- Rapid traverse rate X / Y / Z: up to max. 5 / 5 / 4 m/min (stepless)

- Table type: Rigid angle table (Winkeltisch, starr)

- Clamping surface: 800 x 425 mm

- T-slots: 6 x 14 H7 (pitch / spacing: 63 mm)

- Max. table load: 300 kg

- Vertical milling head: Swivelling +/- 90°, manually extendable quill with lever, stroke 70 mm (clampable), speed-dependent air cooling

- Tool clamping: Automatic mechanical tool clamping, clamping force 10,000 N (hydraulic release)

- Measuring system: Distance-coded linear scale systems, direct, incremental, resolution 0.001 mm

- Safety handwheels: In all 3 axes

- Electronic handwheel: Portable HEIDENHAIN HR 510 FS with integrated axis selection keys, feed rate potentiometer, and emergency stop button (including bracket on control panel)

- Operating voltage: 400 V / 3-phase / 50 Hz

- Nominal current / Backup fuse: 20 A / 25 A

- Connected load: 13 kVA - Control voltage: 24 V

- Base machine installation weight: approx. 2,000 kg (including fluids, without options/tools)

- Max. transport weight: 2,100 kg

- Coolant system: Free-standing container, capacity 66 liters

- Central lubrication: Automatic central lubrication system with separate, easily accessible residual oil container

- Work light: LED flexible arm lamp

- Machine leveling elements: 1 set = 4 pieces
