SAMAG - TFZ 2L-1000DE-MIL-SAM-2019-00001

Name: SAMAG TFZ 2L-1000
Brand: SAMAG
SKU: DE-MIL-SAM-2019-00001
Price: 235000 EUR
Availability: InStock

235,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SAMAG TFZ 2L-1000 For Sale | gindumac.com

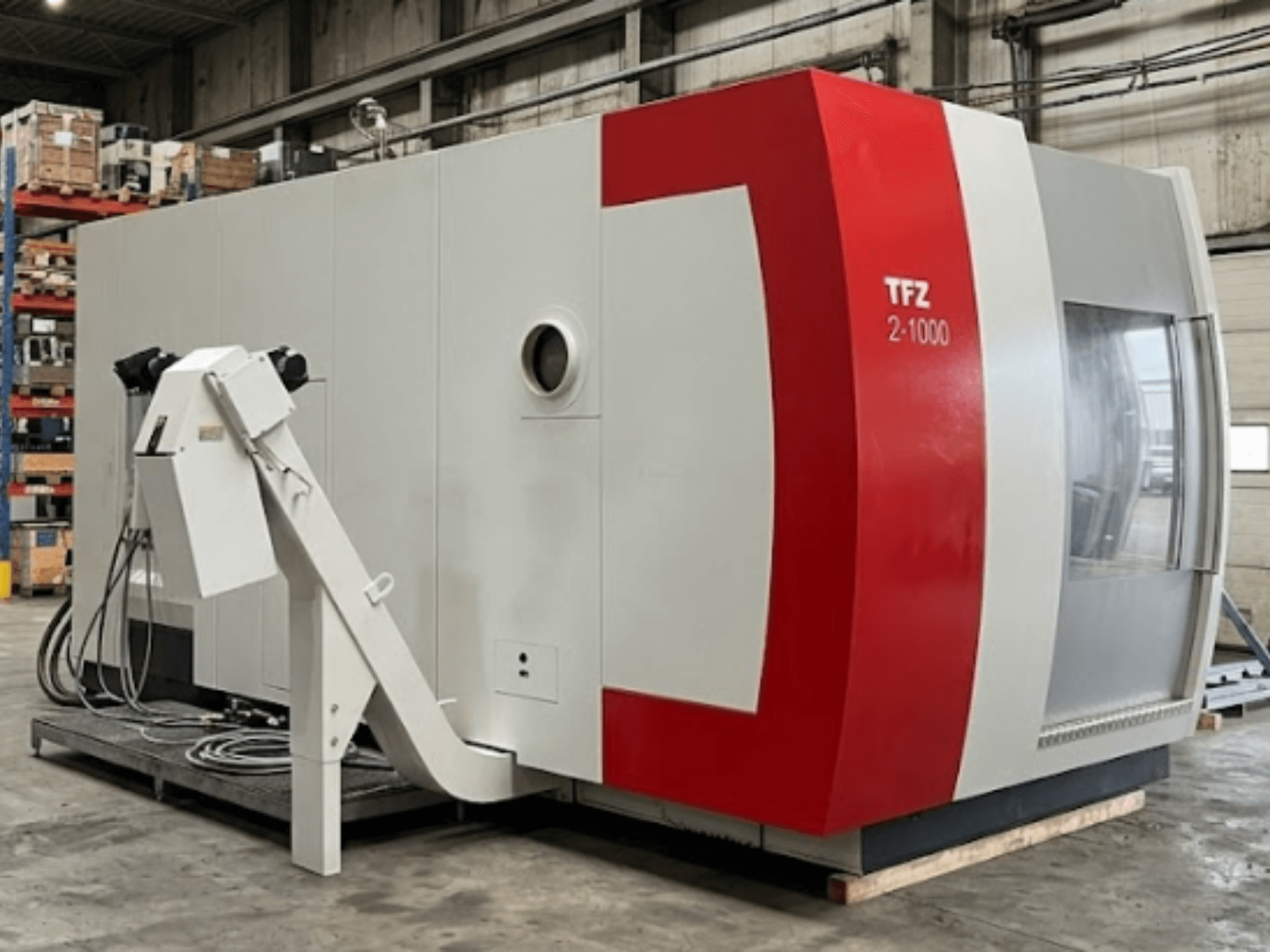

This 6-axis SAMAG TFZ 2L-1000 was manufactured in 2019. It features a travel extension of 1,600 mm in the X-axis, 1,250 mm in the Y-axis, and 1,100 mm in the Z-axis. The machine is equipped with a reinforced main spindle drive of 15/23 kW and a tool changer with 24 positions. If you are looking to get high-quality deep hole drilling and milling capabilities, consider the SAMAG TFZ 2L-1000 universal machining centre we have for sale. Contact us for further details.

Overview

brand: SAMAG
year: 2019
MODEL: TFZ 2L-1000
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - SAMAG TFZ 2L-1000

Control Unit

Control Brand: HEIDENHAIN

Movement

Number of Axes: 6
X-axis Travel: 1600 mm
Y-axis Travel: 1250 mm
Z-axis Travel: 1100 mm

Technical Specification

Spindle Speed: 6000 RPM
Taper Size: HSK 63
Tool Stations: 24

Additional Information

- Number of Axes: 6 Axes (Linear X, Y, Z, W axes; A-swivel axis +/- 30°; B-rotary table axis 360°)

- Travel Extension Y-axis: 1,250 mm

- Main Spindle Drive: Reinforced 15/23 kW (for standard spindle 6,000 rpm)

- Drilling Diameter Range: Ø 4 - 36 mm

- Tool Changer: 24 positions for HSK-A 63 spindle with cover

- Cooling Medium: Emulsion execution with enclosed roof and extraction unit

- Measuring System: Direct measuring system in all main axes

- Probing Systems: Heidenhain TS 460 touch probe, Heidenhain TT 460 3D infrared touch system, and Ø 25 mm calibration ball

- Monitoring & Kinematics: Safety query chip cartridge, collision monitoring with 3D acceleration sensor, DCM (Dynamic Collision Monitoring), and QCK (Quick Check Kinematics)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
