- ➤ Used DMG Mori Seiki NLX1500MC/500 | Horizontal Lathe

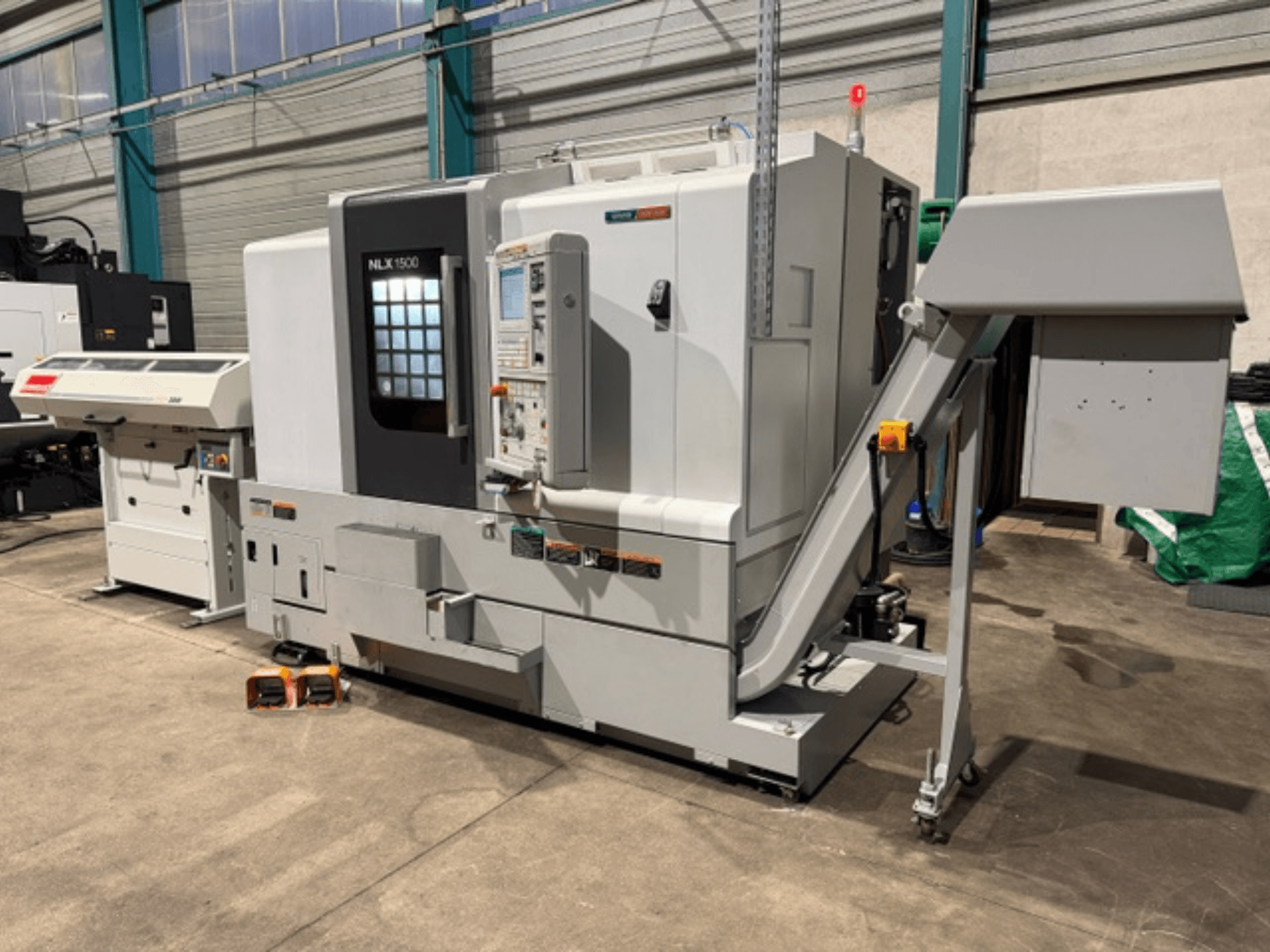

This 3s DMG Mori Seiki NLX1500MC/500 horizontal turning machine was manufactured in 2014. It features a maximum turning diameter without interference of 366 mm, X-axis travel of 260 mm, and Z-axis travel of 590 mm. With a spindle speed of 6,000 rpm and a turret with 12 driven stations, consider the opportunity to buy this DMG Mori Seiki NLX1500MC/500 horizontal turning machine. Contact us for further details.
Overview
- brand: DMG Mori Seiki
- year: 2014
- MODEL: NLX1500MC/500
- application type: Turning
- Location: France
- machine type: Horizontal Turning Machine
Technical Information - DMG Mori Seiki NLX1500MC/500
Dimensions
- Machine Height: 2120 mm
- Machine Length: 2900 mm
- Machine Weight: 5500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 260 mm
- Z-axis Travel: 590 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 6000 RPM
Additional Information
Operating hours: 11,996
Control: MAPPS M730BL
Max. turning diameter without interference: 366 mm
C-axis: 360,000°
Turning length: 515 mm
Spindle nose: A2-5"
Spindle bore: 61 mm
Bar capacity: Ø 52 mm
Turret: 12 stations (all driven), indexing time 0.25 sec
Driven tools: 6,000 rpm, 5.5 kW
Tailstock: programmable (B-axis), stroke 564 mm
Coolant pump
Oil cooler
Electronic handwheel
3-color status lamp
Air-conditioned electrical cabinet
Condition/availability: machine in perfect condition; excellent appearance; very good condition; videos available; immediately available
Additional equipment
Chip conveyor
Bar feeder interface
Bar feeder: SAMSYS MULTI-3000 (short bar, 1000 mm)
Hydraulic chuck: KITAGAWA BB208, Ø 165 mm
Collet chuck: HAINBUCH COMBI TOPlus size 65
HAINBUCH collets: Ø 6.5 – 10 – 16 – 18 – 20 – 25 – 26 – 30 – 40 mm
Square collets: 20×20 – 35×35 – 40×40 mm
Hex collet: 14 mm
Tool measuring probe arm
7 driven toolholders (3 axial, 4 radial)
15 static toolholders
Parts catcher
Automatic door opening/closing
Isolation transformer
Documentation & CD-ROM
Transport and handling clamping brackets
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
