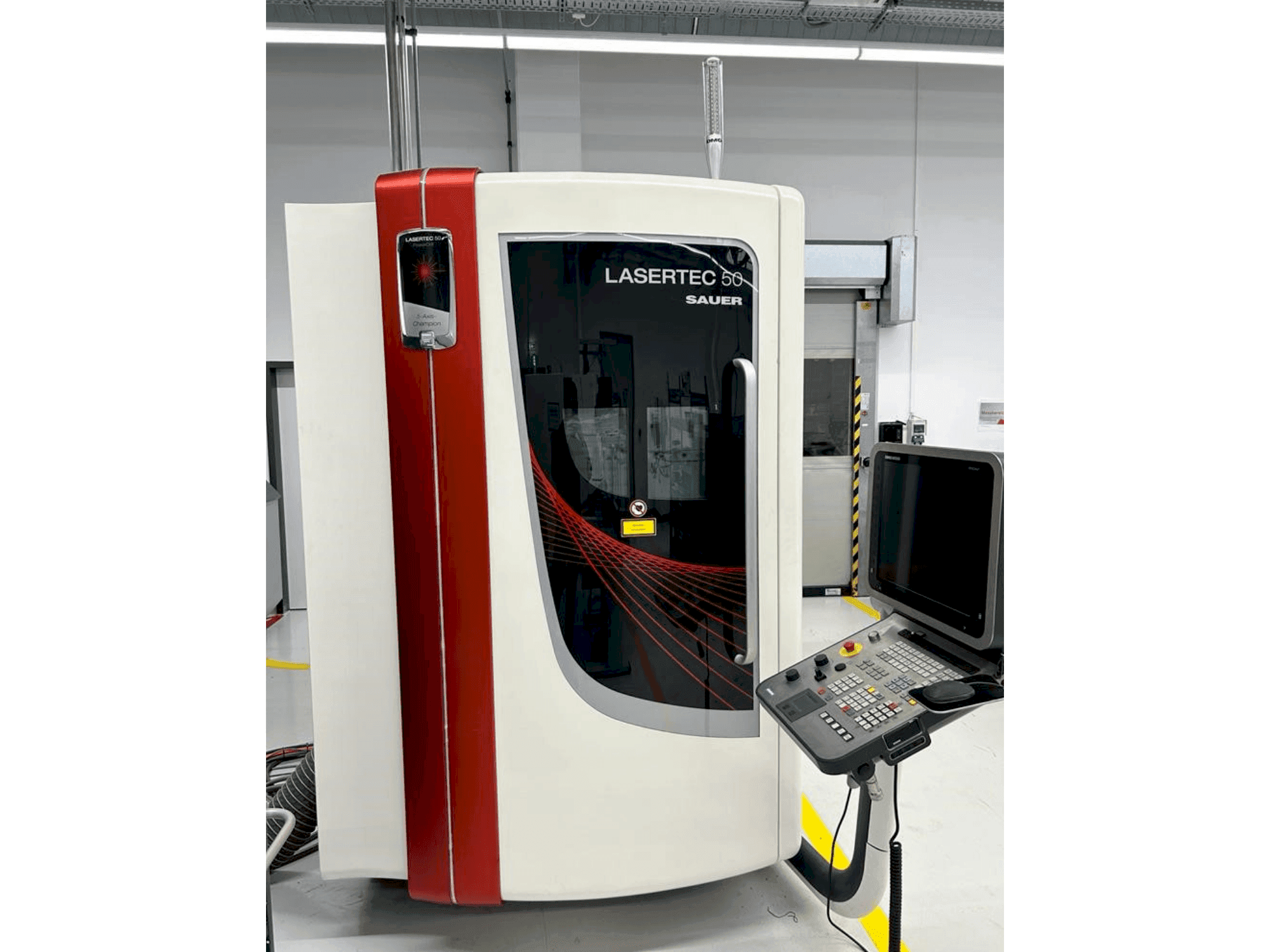

Front view of DMG SAUER  LASERTEC 50  machine

DMG SAUER LASERTEC 50

DMG - SAUER LASERTEC 50

2010

110,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DMG SAUER LASERTEC 50 5-axis laser precision machine was manufactured in the year 2010 in Germany. It is currently still in production but with direct availability. It is in a very good condition with in total 81,142 machine on hours and 14,393 cutting hours. The machine comes with a LASAG FLS 352 A laser (2011), a Keller L-CUT-1-P2-B60-V extraction system (2010) and a KKT OLB 10 SA chiller (2014). See attached the original tech specs as PDF in German.

Overview

  • brand: DMG
  • year: 2010
  • MODEL: SAUER LASERTEC 50
  • production hours: 14393
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (universal)
  • availability: Immediately
  • GINDUMAC ID: DE-MIL-DMG-2010-00002

Technical Information

General Data

  • Measurements width: 2875 mm
  • Measurements depth: 3440 mm
  • Measurements height: 2772 mm
  • Machine weight: 5000 kg

Movement

  • X-AXIS Movement: 500 mm
  • X-AXIS Rapid traverse: 60 m/min
  • Y-AXIS Movement: 500 mm
  • Y-AXIS Rapid traverse: 60 m/min
  • Z-AXIS Movement: 700 mm
  • Z-AXIS Rapid traverse: 30 m/min
  • B-AXIS Movement: -90 / +160 MM
  • C-AXIS Movement: n x 360 MM

    Additional Equipment

    • - LASAG FLS 352 A laser (2011)
    • - Keller L-CUT-1-P2-B60-V extraction system (2010)
    • - KKT OLB 10 SA chiller (2014)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Basic machine: cnc laser precision machine // lasertec 50 precisiontool 500 mm x 500 mm x 700 mm traverse path // cross slide with linear drives // vertical axis (z-axis) with linear guides and ball screw drive // full enclosure (laser protection class 1) with 1 laser safety window // solid machine base frame made of mineral casting // lasag nd:yag laser fls (300 watts) // processing head (100 mm focal length) // motorized expander 1 - 6 times // rod quality
        • - Control unit: 3d path control // siemens 840 d solutionline
        • - Work table: nc swivel rotary table // highly dynamic and precise // with two torque motors for workpieces up to 200mm diameter // max. Load up to 14 kg
        • - Work table options: ks attachment flange // hsk-63 with radial and angular alignment for manual clamping clamping of the customer pallet 200 x 280 mm // pallet requires an hsk-63 holder
        • - Camera through beam path with gooseneck led incident light source // collision switch for processing head (3-axis acting)
        • - Control options: 5-axis transformation // electronic handwheel // programmable process gas pressure
        • - Mg signal light display of 4 machine statuses: "program active", "laser warning", "fault", "setup mode"
        • - 3d measuring probe renishaw omp 400 automatically extending
        • - Additional laser protection window 297 mm x 210 mm // extraction unit with secondary filter stage // cooling unit for laser fls and linear motors // water-water heat exchanger
        • - Dmg powertools
      • Qualitative Machine Benefits:
        • - Cutting of pcd / cbn blanks in three to five axes: 10x faster compared to wire edm
        • - Laser cutting of pcd / cbn inserts in 2d and directly on the shank tool
        • - 5-axis precision machine with linear drives in x / y for > 1g acceleration
        • - Highly dynamic torque motors in both rotary axes (b- and c-axis)
        • - High positioning accuracy of ≤ 8 μm
        • - Ccd camera and 3d touch probe for fast set-up
        • - User-friendly siemens 840d solutionline with special software features
        • - A very good accessibility of the laser for adjustment and maintenance work

      Extra information

      • - Machine is currently in production but immediately available

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
