➤ Used DN SOLUTIONS MYNX 6500 II For Sale | gindumac.com

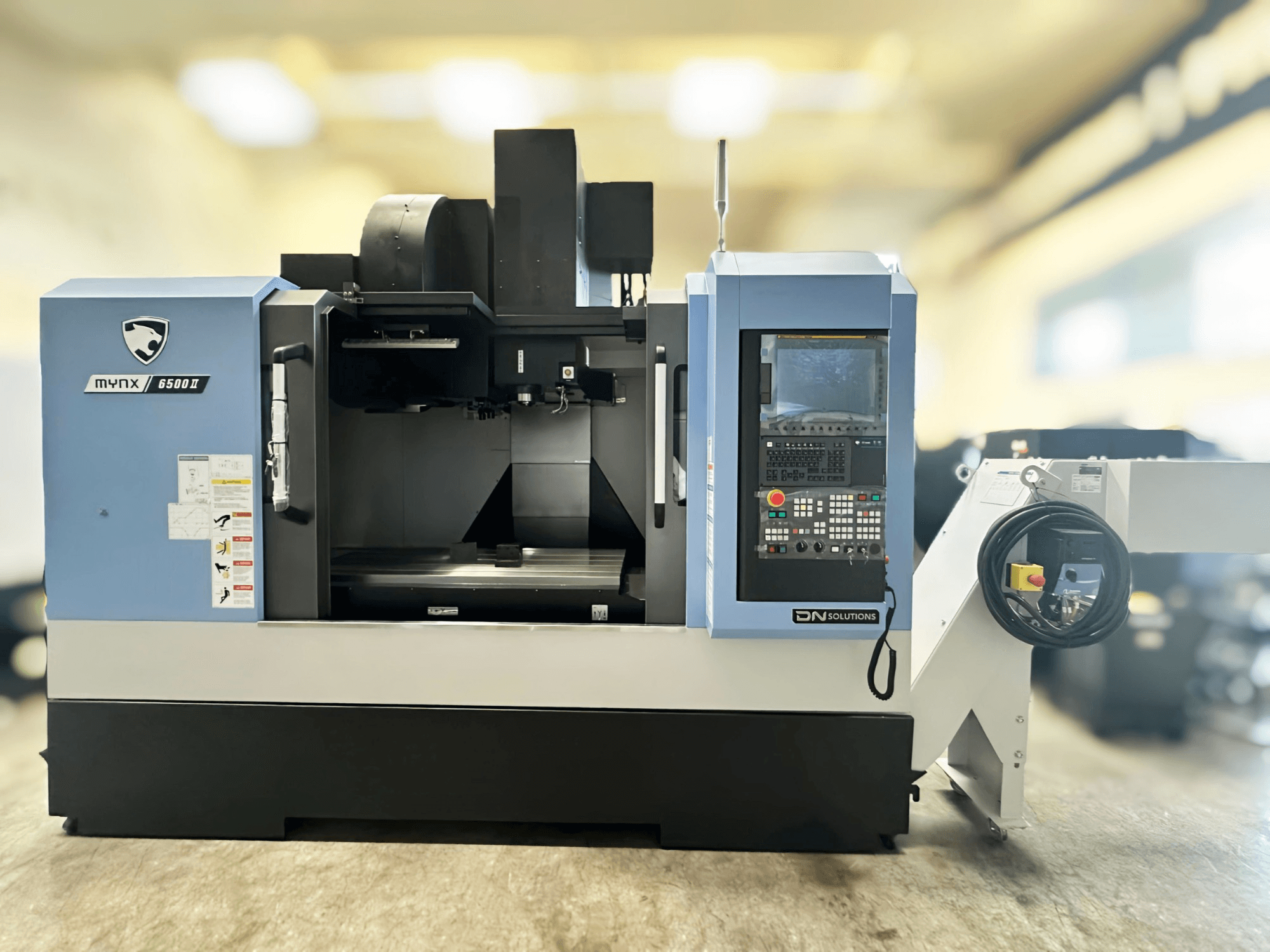

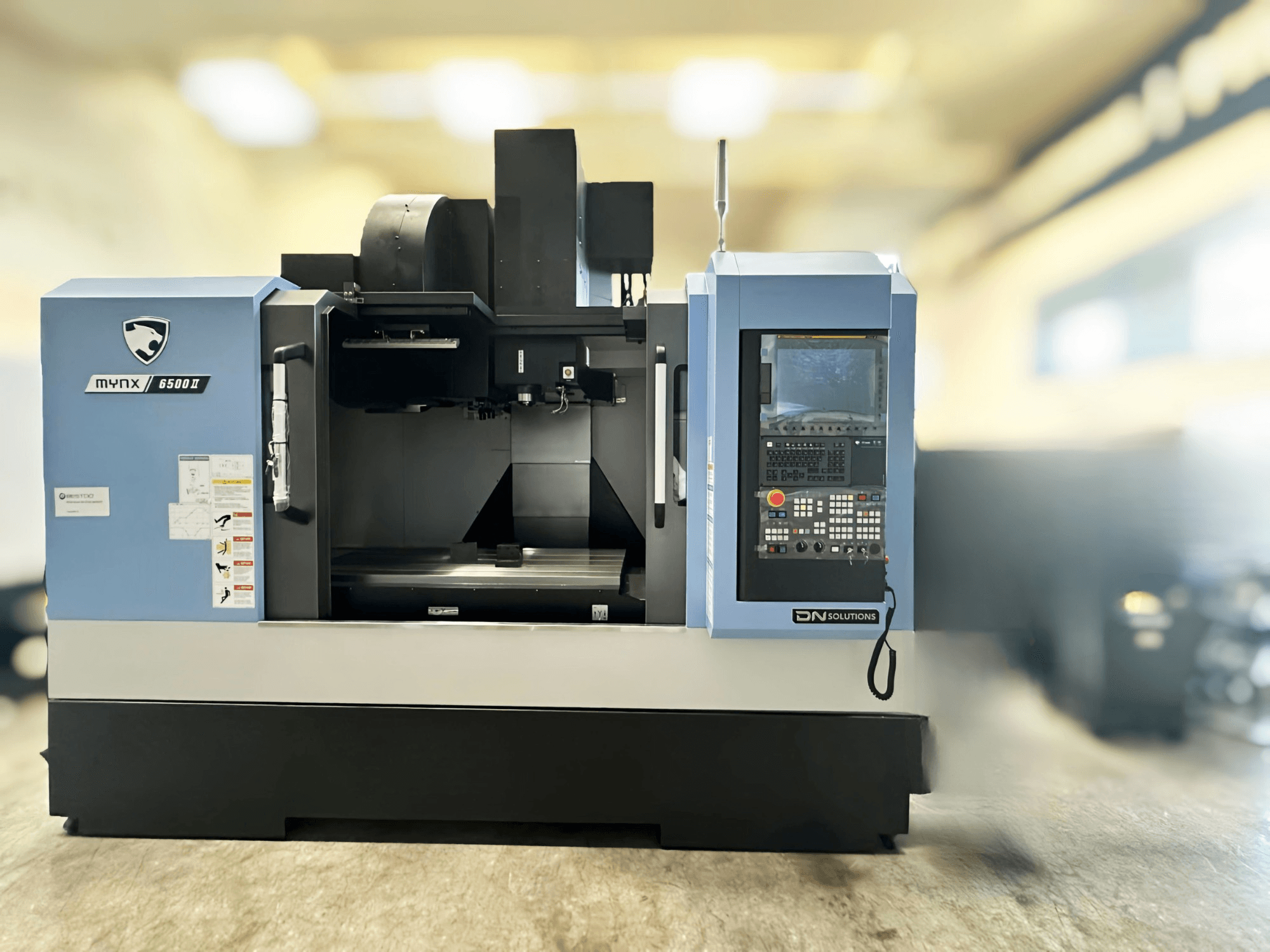

This 3-axis DN SOLUTIONS MYNX 6500 II was manufactured in 2022 but was never in production. It features a table size of 1,400 x 670 mm and a rapid traverse of 30 m/min in both X and Y axes. The machine is designed for heavy-duty milling with box guideways for maximum rigidity. If you are looking to get high-quality milling capabilities, consider the DN SOLUTIONS MYNX 6500 II vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DN SOLUTIONS
year: 2022
MODEL: MYNX 6500 II
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DN SOLUTIONS MYNX 6500 II

Control Unit

Control Brand: FANUC
Control Model: 0i-F

Dimensions

Machine Height: 3107 mm
Machine Length: 2692 mm
Machine Width: 3350 mm

Movement

Number of Axes: 3
X-axis Travel: 1270 mm
Y-axis Travel: 670 mm
Z-axis Travel: 625 mm

Technical Specification

Spindle Power: 15 kW
Spindle Speed: 12000 RPM
Taper Size: ISO 40

Additional Information

As new, showroom model
Table size: 1,400 x 670 mm
Rapid traverse (X/Y/Z): 30 / 30 / 24 m/min
Tool magazine capacity: 40 stations
Maximum workpiece weight: 625 kg
Guideway type: Box guideways on all axes
Memory: 400 tool offset memory slots
Cooling system: Milling spindle cooling
Stability/construction: Highly stable design for heavy-duty milling; box guideways provide maximum rigidity and vibration damping
Spindle: High-performance spindle with high torque characteristics
Automation/Safety (machine features): Load monitoring; Auto shut-off
Maximum height when the Z-axis is fully extended: 3107mm

Additional equipment

Oil skimmer (filtration)
Bar feeder interface (prepared for external bar feeder)
basic package of tool holders included
no bar feeder included (can be purchased optional, price upon request)
no chuck included
retrofits possible (price upon request)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
