POSmill - CE1000DE-MIL-POS-2023-00002

Name: POSmill CE1000
Brand: POSmill
SKU: DE-MIL-POS-2023-00002
Price: 79000 EUR
Availability: InStock

79,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used POSmill CE1000 For Sale | gindumac.com

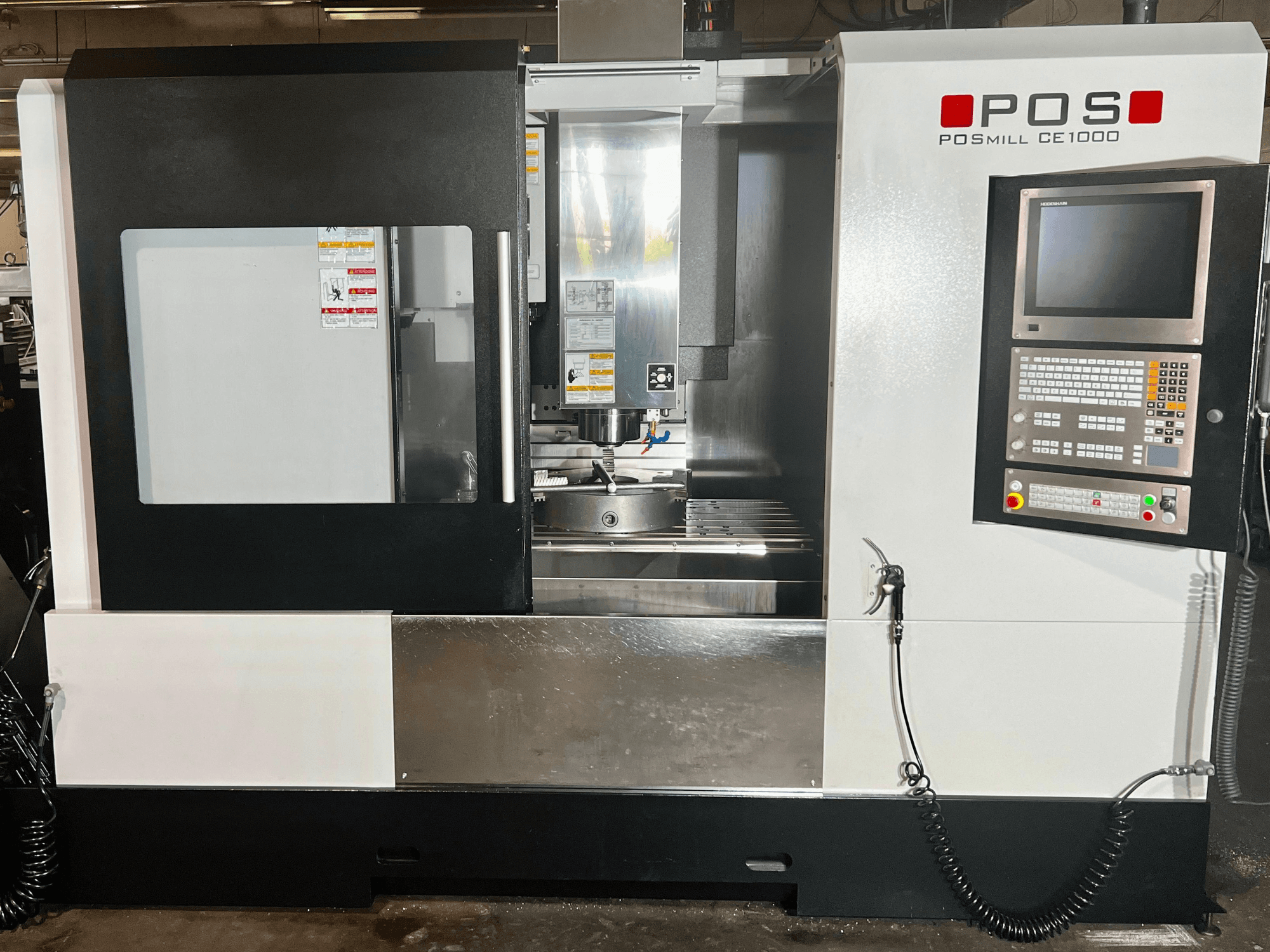

This 3-axis POSmill CE1000 was manufactured in 2023. It features an X-axis travel of 1,060 mm, Y-axis travel of 600 mm, and Z-axis travel of 600 mm. The machine is equipped with a Heidenhain TNC 640 control unit and has a maximum spindle speed of 10,000 rpm. If you are looking to get high-quality machining capabilities, consider the POSmill CE1000 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: POSmill
year: 2023
MODEL: CE1000
production hours: 533
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - POSmill CE1000

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 640

Dimensions

Machine Weight: 7800 kg
Table Length: 1200 mm
Table Width: 600 mm

Movement

Number of Axes: 3
X-axis Travel: 1060 mm
Y-axis Travel: 600 mm
Z-axis Travel: 600 mm

Technical Specification

Spindle Speed: 10000 RPM
Taper Size: ISO 40
Through-spindle Coolant: Yes

Additional Information

- Coolant Supply Through Spindle / High Pressure: 20 bar

- Rated Power: 30 kVA

- Voltage: 400 V (3-Phase, 50 Hz)

- Full Load Current: 52 A

- Max. Current Load: 250 A

- Short-Circuit Resistance: 25 kA

- Spindle Hours: 533 h

- Power-on Hours Machine / Control: 2,410 h / 2,436 h

- Tool Changer: 40-fold ISO 40

- Internal Coolant Supply (IKZ): 20 bar with belt filter system

- Equipment: Documentation/Manual, chip conveyor, external high-pressure coolant unit/tank with filtration, pneumatic maintenance unit, electronic handwheel

- Condition: Very good, fully functional; checked in late 2025 with no defects found

- Usage History: Exclusively soft-annealed tool steels (no hard or dry machining)

- Measuring Systems: Heidenhain linear measuring system (X, Y, Z), Wireless Pick Up tool measuring system 35.40 TS, Workpiece measuring system 25.50-HDR

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
