- Doosan Puma 3100L Lathe

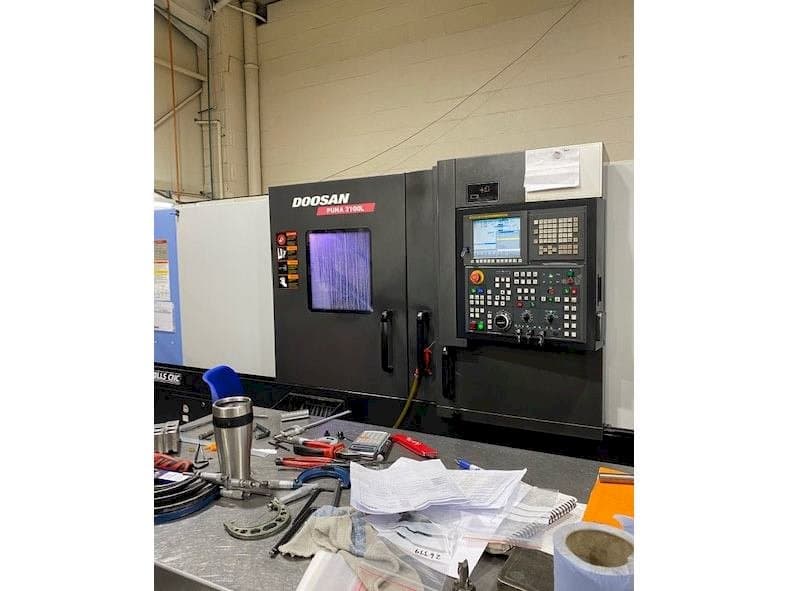

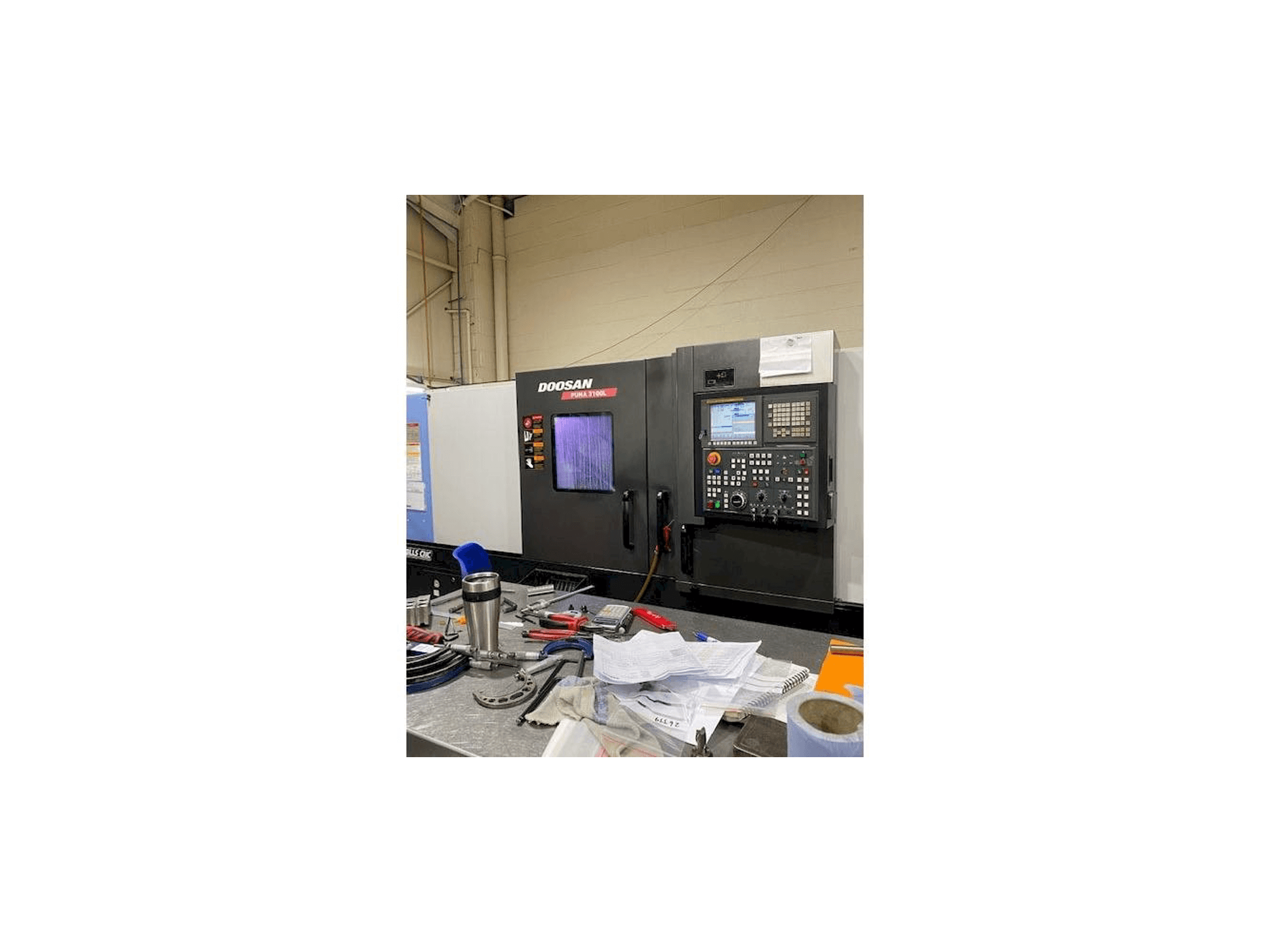

This Doosan Puma 3100L Lathe was made in 2013 in the United States. It is equipped with a FANUC i Series with iGuide control unit and has 2 axis. The machine has a spindle speed of 2800 rpm, is in very good condition and well maintained.
Overview
- brand: DOOSAN
- year: 2013
- MODEL: 3100L
- application type: Turning
- Location: United Kingdom
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DOOSAN 3100L
Control Unit
- Control Brand: FANUC
- Control Model: i Series with iGuide
Dimensions
- Machine Depth: 2067 mm
- Machine Height: 2010 mm
- Machine Weight: 7350 kg
Movement
- Number of Axes: 2
- X-axis Travel: 293 mm
- Z-axis Travel: 1350 mm
Technical Specification
- Number of Tools: 10
- Spindle Speed: 2800 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition!
- Chuck diameter: 300mm
Technical Machine Benefits
- Swing over bed 850 mm
- Swing over the cross-slide: 670mm
- Maximum cutting diameter: 525 mm
- Maximum cutting length: 1310mm
- Spindle motor power: 22/18. 5kw
- Spindle nose: a2-11
- Bar capacity: 102mm
- Rapid feedrates: xz: 30m/minute
- 3tailstock quill diameter 100mm, mt #5
- Swarf conveyor, tool setter, 3 jaw chuck, tooling, coolant, interlocked guards, low volt light
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
