DOOSAN - DNM 5700 SI-MIL-DOO-2021-00004

Name: DOOSAN DNM 5700
Brand: DOOSAN
SKU: SI-MIL-DOO-2021-00004
Price: 87000 EUR
Availability: InStock

87,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN DNM 5700 For Sale | gindumac.com

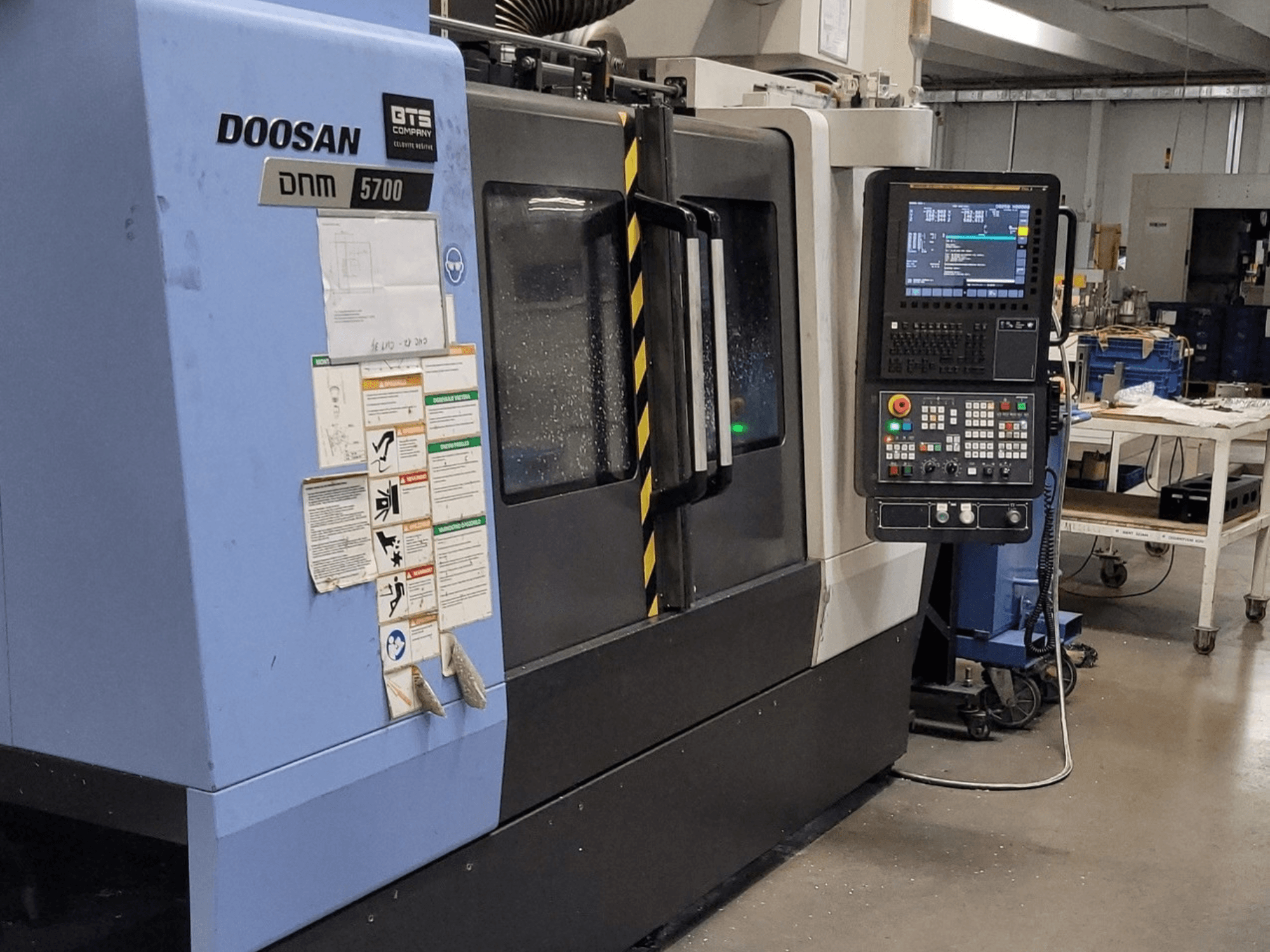

This 3-axis DOOSAN DNM 5700 was manufactured in 2021. It features an impressive X-axis travel of 1,050 mm, Y-axis travel of 570 mm, and Z-axis travel of 510 mm. The machine is equipped with a maximum spindle speed of 12,000 rpm and a tool magazine capacity of 30 tools. If you are looking to get high-quality machining capabilities, consider the DOOSAN DNM 5700 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2021
MODEL: DNM 5700
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN DNM 5700

Control Unit

Control Brand: FANUC
Control Model: i Series

Movement

Number of Axes: 3
X-axis Travel: 1050 mm
Y-axis Travel: 570 mm
Z-axis Travel: 510 mm

Technical Specification

Spindle Power: 18.5 kW
Spindle Speed: 12000 RPM
Taper Size: BT 40
Tool Stations: 30

Additional Information

2 units available
CNC control: FANUC i Series (15" display, 2 MB program storage / up to 1,000 programs, Ethernet connection)
Rapid traverse X: 36 m/min
Rapid traverse Y: 36 m/min
Rapid traverse Z: 30 m/min
Spindle torque: 118 Nm
Through-spindle coolant: 12 bar
Coolant gun
Ball screw nut cooling
Tool breakage detection in the magazine
Automatic doors
Robot interface
Preparation for 4th axis
Coolant level sensor
Mist collector interface

Additional equipment

LNS MH500 chip conveyor
Belt-type oil skimmer
HIWIN RCV 250 rotary table (4th axis)
HIWIN RTS 250 support (tailstock/support for 4th axis)
Hydraulic unit 200 bar, 2 A+B
Hydraulic fixture support for 4th axis
Seat air check

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
