➤ Used DOOSAN DNM650 For Sale | gindumac.com

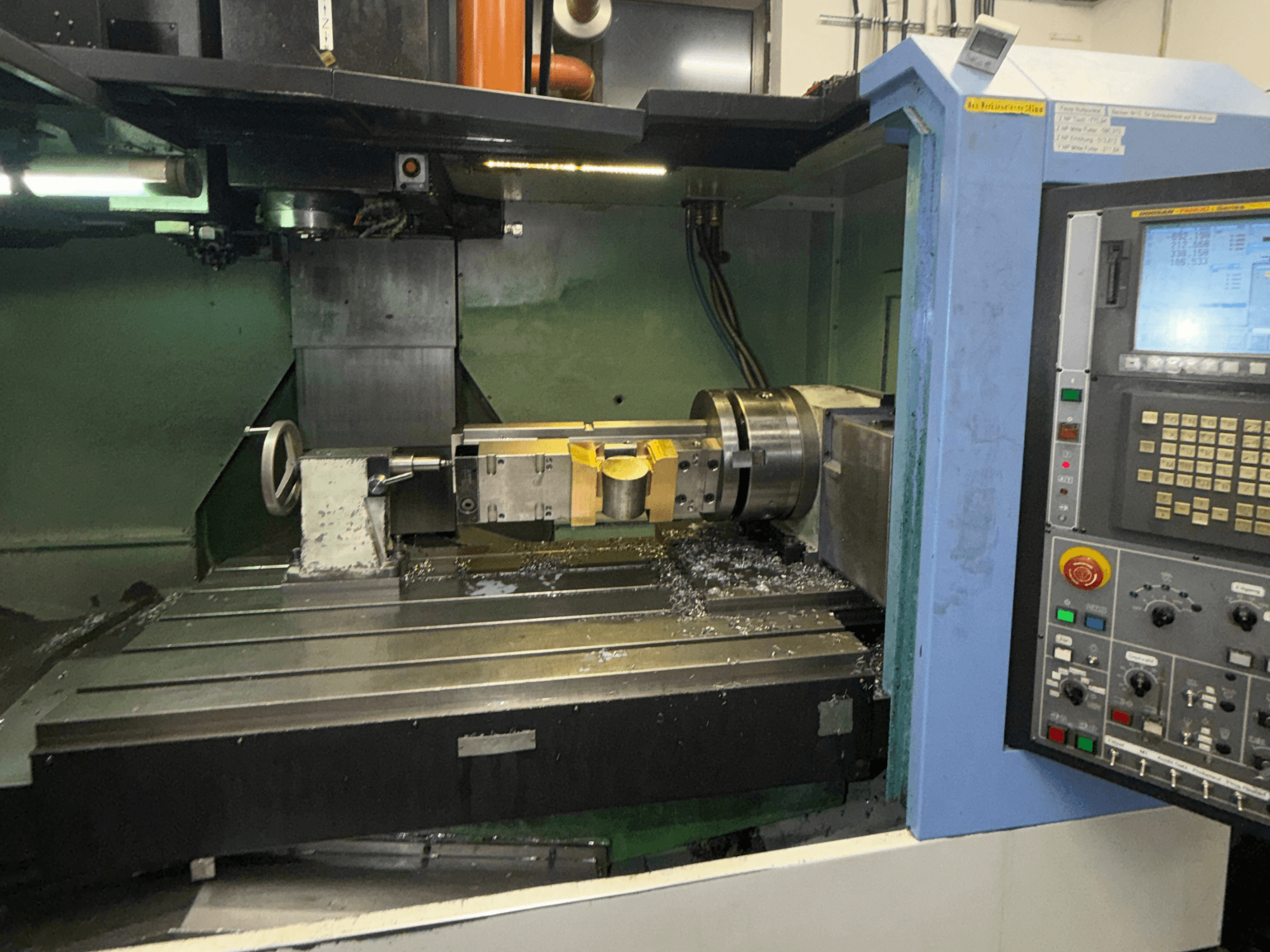

This 4-axis DOOSAN DNM650 was manufactured in 2010. It features a robust weight of 8500 kg and is equipped with a Fanuc Series control system. The machine includes a 4th axis rotary table unit mounted on the main table, enhancing its versatility. If you are looking to get high-quality machining capabilities, consider the DOOSAN DNM650 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2010
MODEL: DNM650
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN DNM650

Control Unit

Control Brand: FANUC

Dimensions

Machine Weight: 8500 kg

Movement

Number of Axes: 4
X-axis Travel: 1270 mm

Technical Specification

Spindle Speed: 12000 RPM

Additional Information

- Mains Connection: AC 220 V, 3-Phase, PE, 50/60 Hz

- Rated Power: 42.55 kVA

- Interrupting Capacity: 5 kA

- Full Load Current: 124.30 A

- Short Circuit Capacity: 35 kA

- Circuit Diagram Version: DM50H00ZA03

- Weight: 8500 kg

- Control System: Fanuc Series

- Additional Equipment: 4th axis rotary table unit mounted on the main table, signal stack light, mist extraction ducting system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
