➤ Used DOOSAN DNM 6700 For Sale | gindumac.com

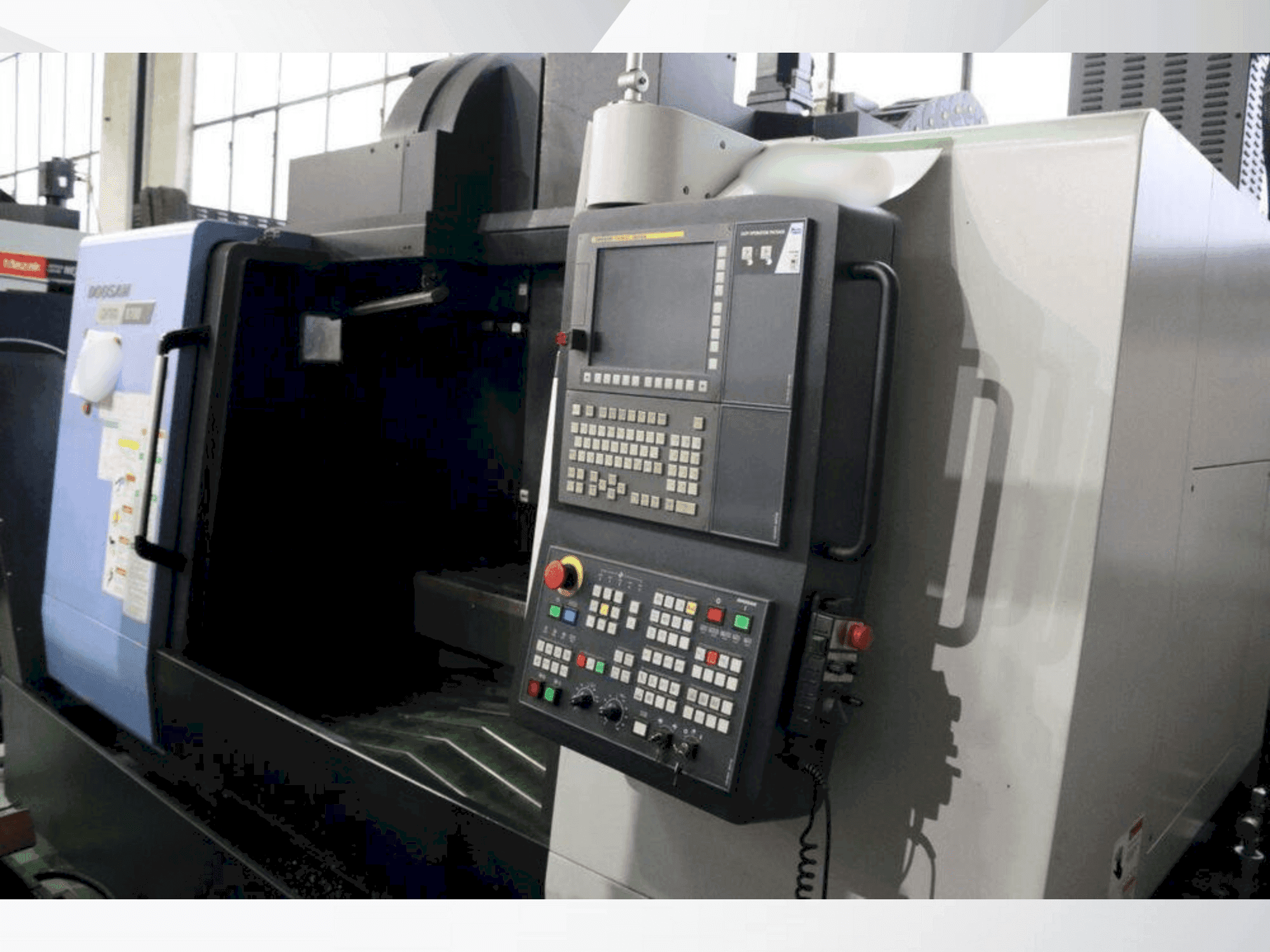

This 4-axis DOOSAN DNM 6700 vertical machining center was manufactured in 2017. Ideal for precision machining, it offers robust construction and reliability. Consider the opportunity to buy this DOOSAN DNM 6700 vertical machining center. Contact us for more information.

Overview

brand: DOOSAN
year: 2017
MODEL: DNM 6700
application type: Milling
Location: Switzerland
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN DNM 6700

Control Unit

Control Brand: FANUC
Control Model: F0i-F

Dimensions

Machine Height: 3120 mm
Machine Length: 2597 mm
Machine Weight: 8500 kg
Machine Width: 3350 mm
Table Length: 1500 mm
Table Load: 1300 kg
Table Width: 670 mm

Movement

Number of Axes: 3
X-axis Travel: 1300 mm
Y-axis Travel: 670 mm
Z-axis Travel: 625 mm

Technical Specification

Spindle Power: 18.5 kW
Spindle Speed: 12000 RPM
Taper Size: BT 40

Additional Information

Additional equipment

Spindle Cooler: Included
Preparation for 4th Axis: Pneumatic Clamping Line
Torque Monitoring: Tool Monitoring Systems

Machine Benefits

Technical Machine Benefits

Coolant pump medium pressure type 1: 19 bar, 1. 5 kw, 18 l/min
Cyclone filter: 25 um
Hinged belt conveyor: ejection left or right side
Oil separator: belt type

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
