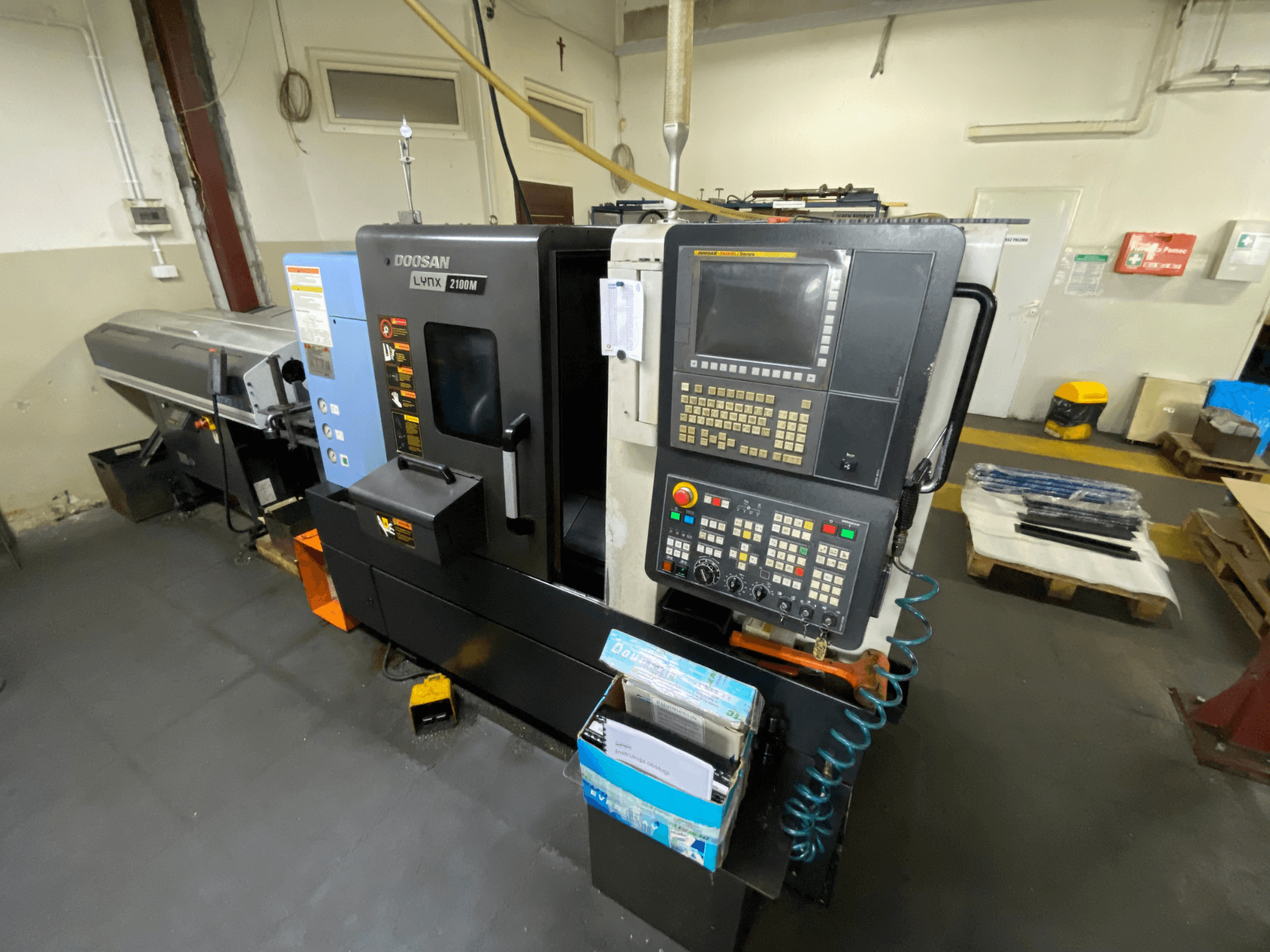

DOOSAN LYNX 2100MA horizontal turning machine seen from a side view, featuring control panel, tools, and work area.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN LYNX 2100MA

Photo Gallery

DOOSAN - LYNX 2100MAPL-TUR-DOO-2017-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN LYNX 2100MA For Sale | gindumac.com

Horizontal turning machine manufactured in 2017. This DOOSAN LYNX 2100MA features a maximum turning diameter of 300 mm and a turning length of 510 mm. It is equipped with a 12-station drum turret and driven tools, providing versatility in machining. If you are looking to get high-quality turning capabilities, consider the DOOSAN LYNX 2100MA machine we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2017
MODEL: LYNX 2100MA
production hours: 9271
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN LYNX 2100MA

Control Unit

Control Brand: FANUC
Control Model: i Series

Dimensions

Machine Weight: 2750 kg

Movement

Number of Axes: 3
X-axis Travel: 205 mm
Z-axis Travel: 510 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Power: 15 kW
Spindle Speed: 6000 RPM
Tool Stations: 12

Additional Information

Maximum turning diameter: 300 mm
Maximum turning length: 510 mm
Swing over bed: 600 mm
Bar capacity through spindle: 51 mm
Spindle bore: 61 mm
Spindle nose: A2-5
Rapid traverse X / Z: 30 / 36 m/min
C-axis resolution: 0.001°
Turret: 12-station drum turret with driven tools
Driven tool speed: 6,000 rpm
Driven tool motor power: 3.7 kW
Tool shank size: 20 × 20 mm
Boring bar shank diameter: 32 mm
Chuck size: 6" hydraulic chuck
Tailstock quill diameter: 65 mm
Tailstock quill taper: MT4
Tailstock quill stroke: 80 mm
Total parts counter: 393,105 pcs (control counter)
Cutting time: 9,271 h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
