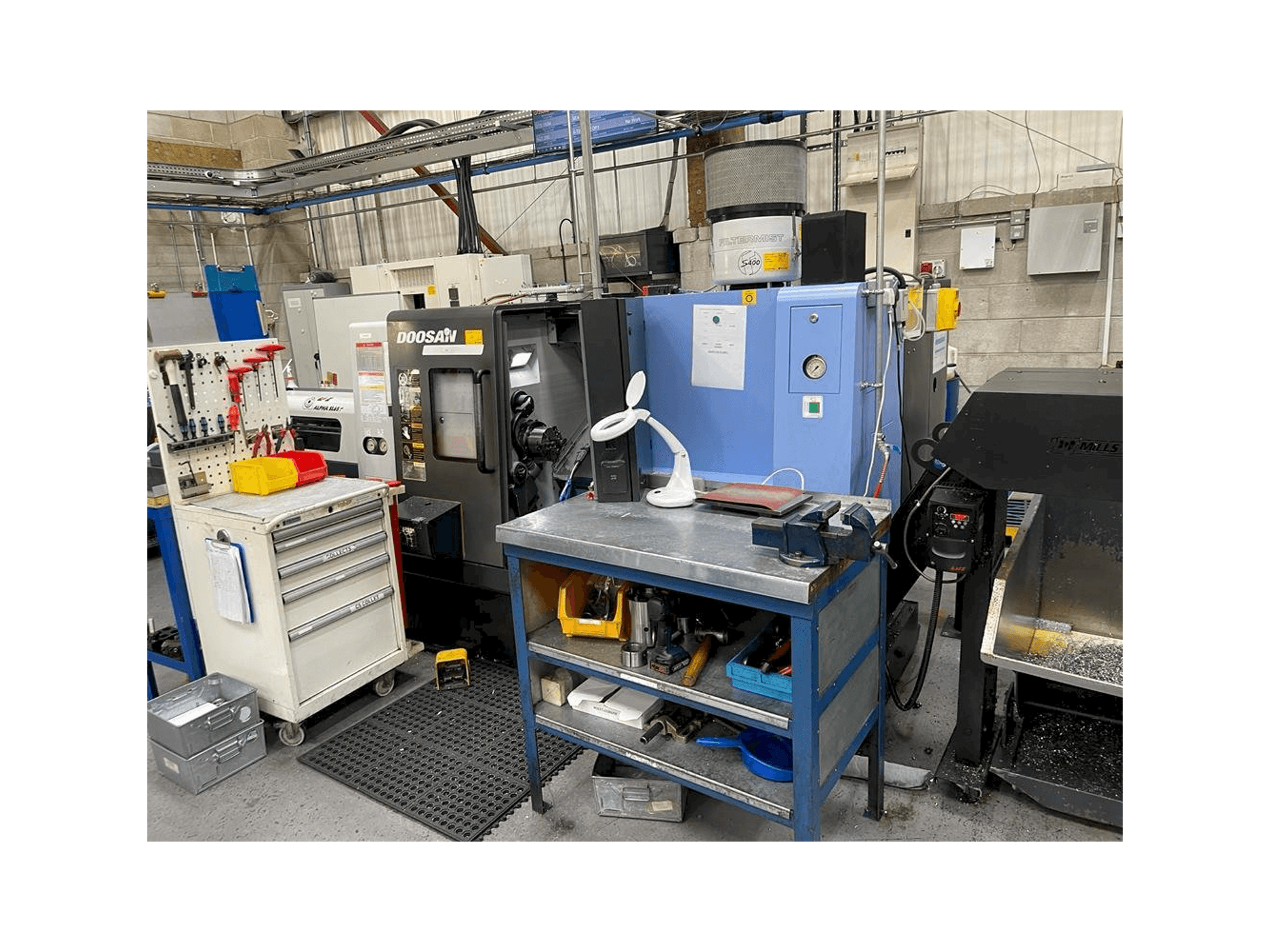

Front view of Doosan Lynx 220 LMA  machine

Doosan Lynx 220 LMA

Doosan - Lynx 220 LMA

2014

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Doosan Lynx 220 LMA Lathe machine was built in the year 2014. It is equipped with a FANUC i Series control unit and has 3 axis. The machine has a spindle speed of 6000 rpm and is in very good condition.

Overview

  • brand: Doosan
  • year: 2014
  • MODEL: Lynx 220 LMA
  • application type: Turning
  • Location: United Kingdom
  • machine type: Lathe
  • availability: Sold
  • control unit brand: Fanuc
  • GINDUMAC ID: GB-TUR-DOO-2014-00006

Technical Information

General Data

  • Measurements width: 2630 mm
  • Measurements depth: 1600 mm
  • Measurements height: 1655 mm
  • Machine weight: 3100 kg

Control Unit

  • Brand: Fanuc
  • Model: i Series

Main drive

  • Number of spindles: 1
  • Spindle speed range: 6000 1/MIN
  • Spindle motor power: 15/11 kW

Movement

  • X-AXIS Movement: 175 mm
  • Z-AXIS Movement: 550 mm

Turret

  • Number of turrets: 1

Tools

  • Slots in storage: 24

Media

  • Chip conveyor: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Swing over bed 510 mm, over carriage 290 mm
      • - Maximum machining diameter 250 mm
      • - Maximum machining length 510 mm
      • - Bar capacity 51 mm
      • - Turret positions 24 (positions 1-12 driven)
      • - 0. 001 degree c axis
      • - Tailstock (taper mt #4, quill diameter/ stroke 65/80mm)
      • - 3 jaw chuck, magazine barfeed, swarf conveyor,
      • - Tool setter, parts catcher
      • - 3 controlled axes (x, z, c)
    • Qualitative Machine Benefits:
      • - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
