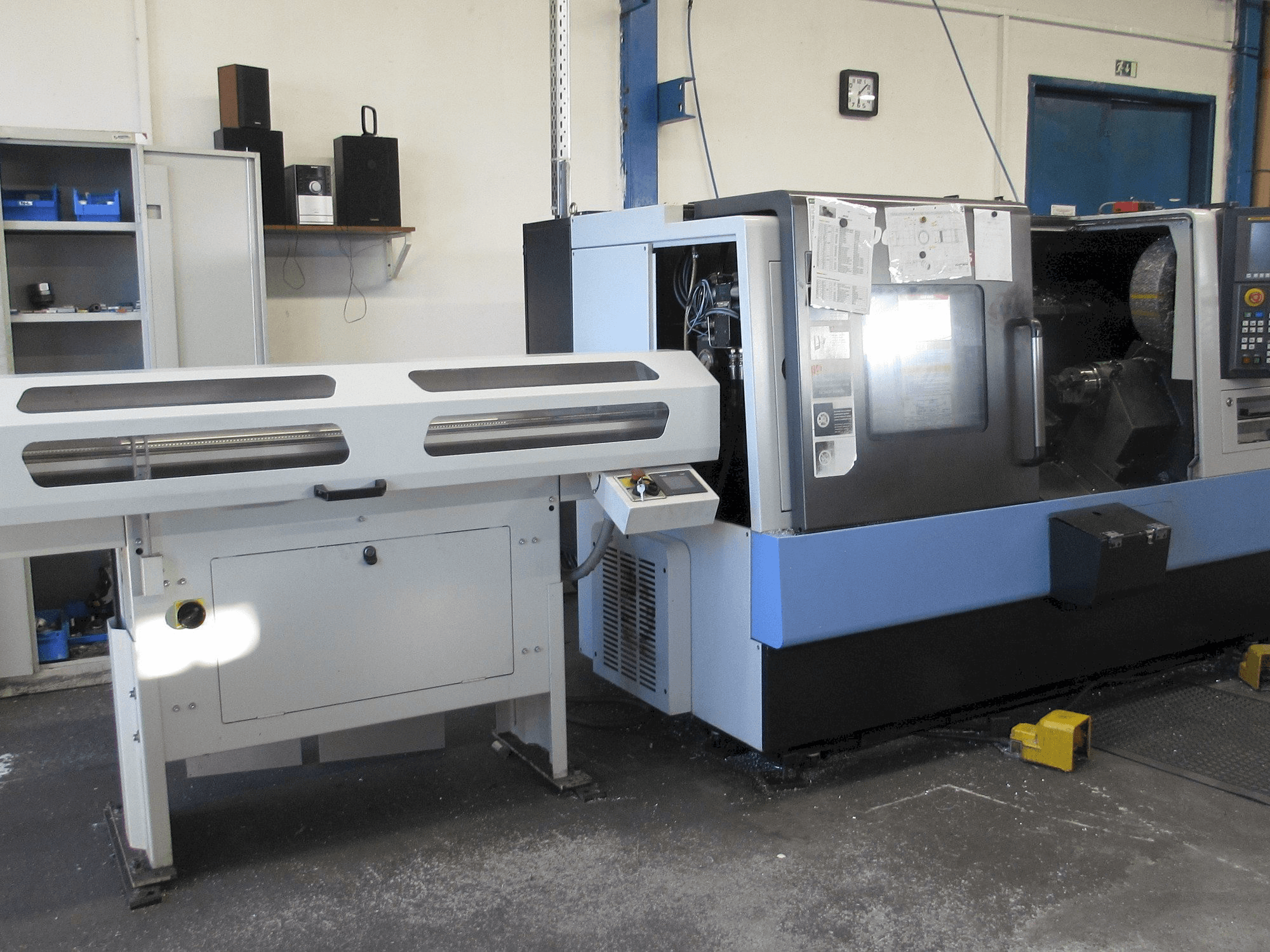

Front view of Doosan Lynx 220 LMS machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Lynx 220 LMS

Photo Gallery

DOOSAN - Lynx 220 LMSCZ-TUR-DOO-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Lynx 220 LMS Lathe

This Doosan Lynx 220 LMS Lathe was built in 2012 in South Korea and has been operative for 22600 hours, from which 8650 are cutting hours. It is equipped with a FANUC iSeries Control unit. This machine's main spindle and sub spindle can operate with a speed up to 6000 rpm.

Overview

brand: DOOSAN
year: 2012
MODEL: Lynx 220 LMS
production hours: 8650
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN Lynx 220 LMS

General Data

Measurements width: 2763 mm
Measurements depth: 1627 mn MM
Measurements height: 1655 mm
Machine weight: 3400 kg

Control Unit

Model: iSeries
CNC main language: Czech
CNC language customizable: Yes
Brand: FANUC

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 11/15 kW

Movement

X-AXIS Movement: 205 mm
Z-AXIS Movement: 550 mm
B-AXIS Movement: 550 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional Information

Additional equipment

Bar feeder Spacesaver 2500

Machine Benefits

Technical Machine Benefits

Swing over bed/saddle 600/400 mm
Max. Turning length 510 mm
Max. Turning diameter 300 mm
Main & sub spindle speed 6000 rpm
Spindle thru hole diameter 61 mm
C axis 0. 001 degrees (main spindle, subspindle)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
