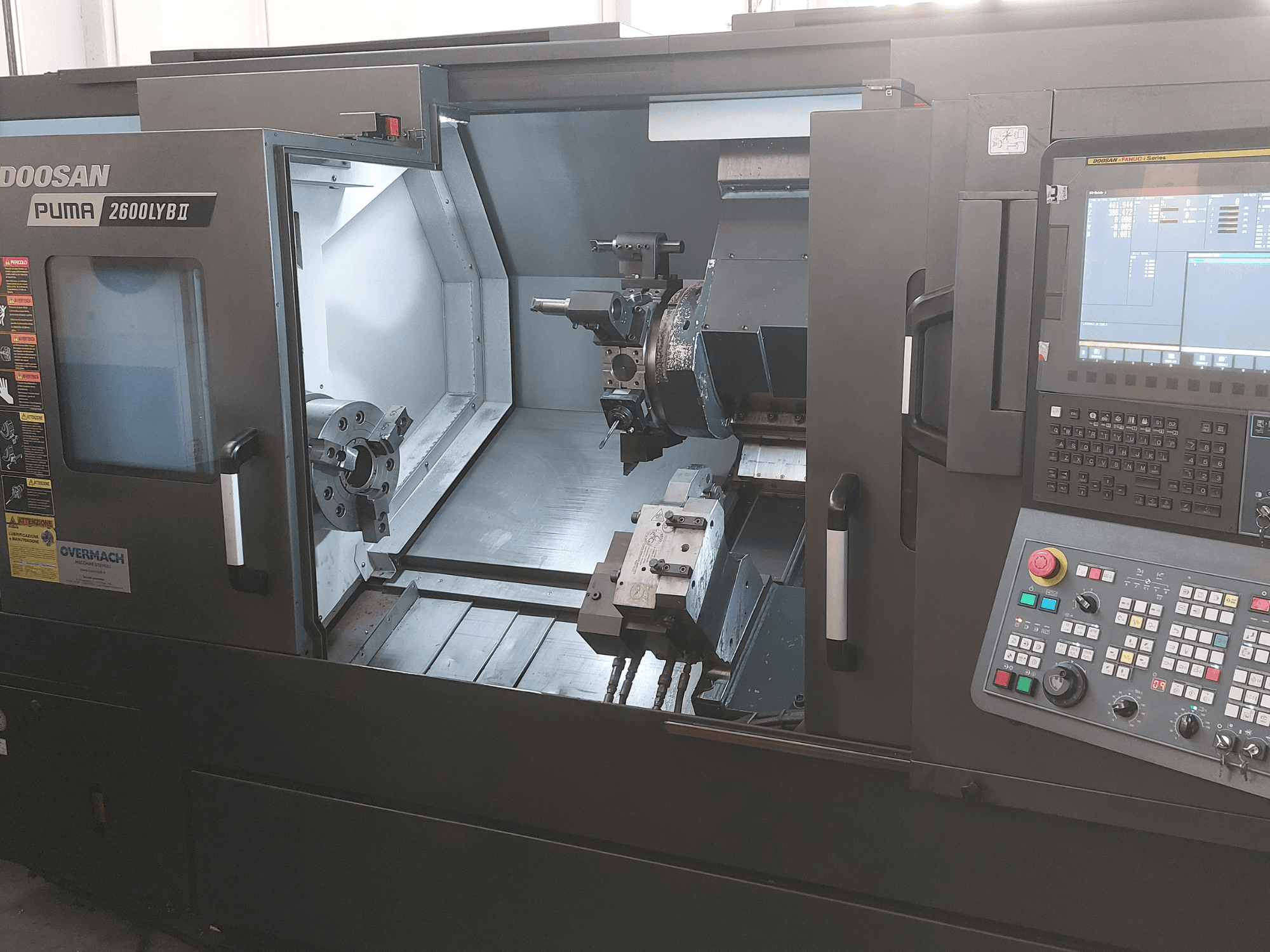

DOOSAN Puma 2600 LYB II Horizontal Turning Machine in front view, showcasing interior with chuck, tool holder, and control panel.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Puma 2600 LYB II

Photo Gallery

DOOSAN - Puma 2600 LYB IIIT-TUR-DOO-2021-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Puma 2600 LYB II For Sale | gindumac.com

This 4-axis DOOSAN Puma 2600 LYB II was manufactured in 2021. It features a maximum turning diameter of 376 mm and a turning length of 1,350 mm. The machine includes a 12-station turret, a live tailstock, and a steady rest with a diameter range from 40 mm to 200 mm. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma 2600 LYB II horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2021
MODEL: Puma 2600 LYB II
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - DOOSAN Puma 2600 LYB II

Dimensions

Machine Height: 2163 mm
Machine Length: 4438 mm
Machine Weight: 7500 kg
Machine Width: 2005 mm

Movement

Number of Axes: 4
X-axis Travel: 260 mm
Y-axis Travel: 105 mm
Z-axis Travel: 830 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Power: 22 kW
Spindle Speed: 2800 RPM

Additional Information

Capacity
- Swing over bed: 780 mm
- Swing over carriage: 630 mm
- Recommended turning diameter: 315 mm
- Max turning diameter: 376 mm
- Max turning length: 1,350 mm
- Bar capacity: 102–103 mm
Main spindle
- Nose: ASA A2-11
- Bearing diameter: 160 mm
- Through-spindle bore: 115 mm
- C-axis indexing accuracy: 0.001°
Turret
- Stations: 24 (option installed; standard 12)
- Tool size: 25 mm
- Boring bar capacity: 50 mm
- Indexing time: 0.15 s
- Live tool speed: 5,000 rpm
Axes
- C rotation: 360°
Rapid traverse
- X: 30 m/min
- Z: 30 m/min
- C: 10 m/min
Tailstock
- Type: Live tailstock
- Quill diameter: 100 mm
- Taper: MT5
- Quill stroke: 100 mm
Motor / Power
- Live tool motor: 7.5 / 1.5 kW
- Feed motor: 3.0 / 4.0 / 3.0 kW
- Coolant pump motor: 0.4 kW
- Electrical capacity: 46.40 kVA

Additional equipment

315 mm chuck
MORARI steady rest, 40–200 mm diameter range
Three motorized radial Eppinger live toolholders/spindles
Tool presetting system (tool presetter)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
