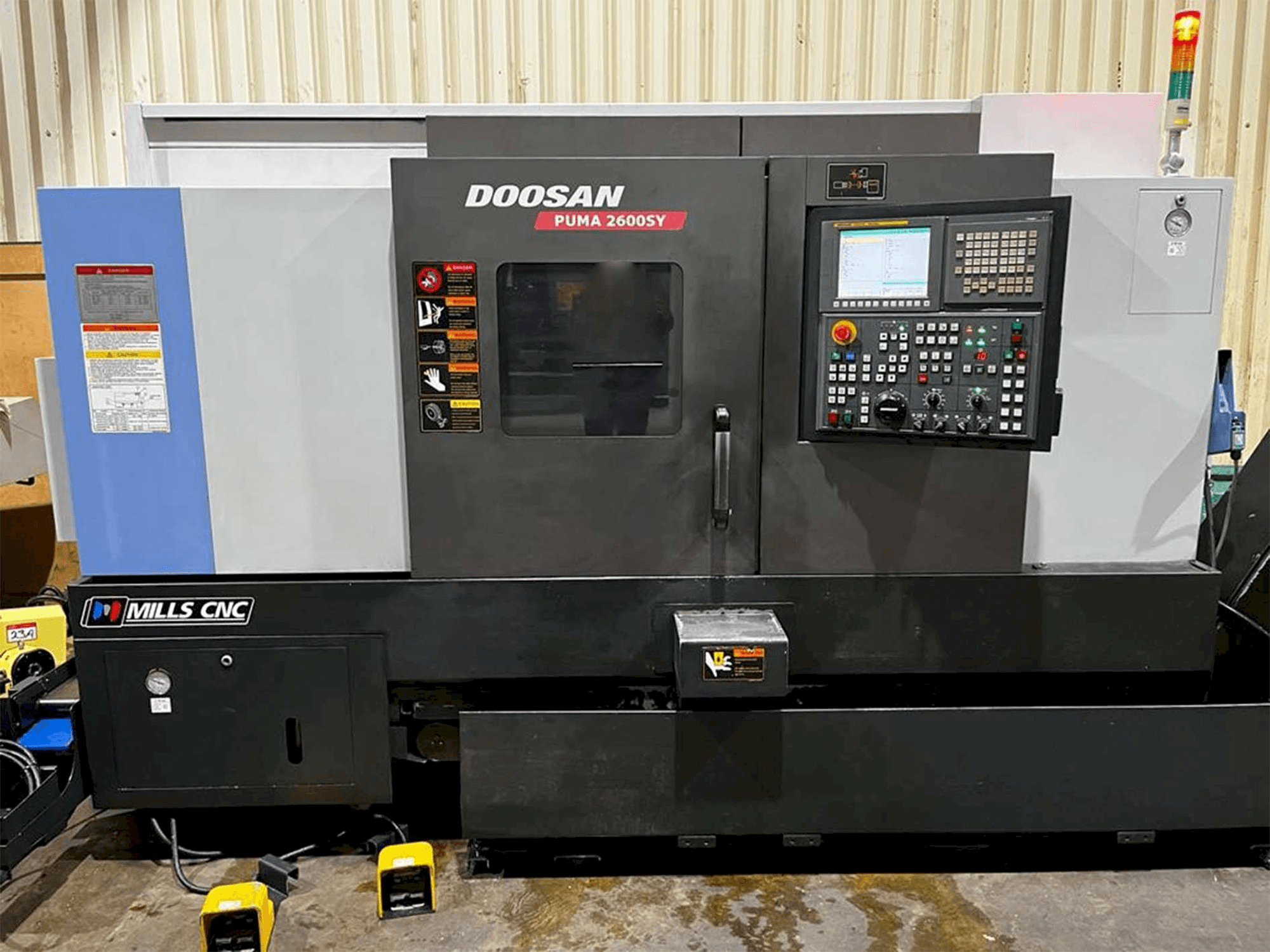

Front view of Doosan Puma 2600SY  machine

DOOSAN Puma 2600SY

DOOSAN - Puma 2600SY

2012

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Doosan 2600SY Lathe machine was manufactured in South Korea in the year 2012. This 4 axis machine operates through a Fanuc I Series control unit. It incorporates a spindle speed of 3500 rpm and a sub-spindle speed up to 4500 rpm. The machine is in very good condition and includes manuals.

Overview

  • brand: DOOSAN
  • year: 2012
  • MODEL: Puma 2600SY
  • application type: Turning
  • Location: United Kingdom
  • machine type: Lathe
  • availability: Sold
  • control unit brand: Fanuc
  • GINDUMAC ID: GB-TUR-DOO-2012-00003

Technical Information

General Data

  • Measurements width: 6600 mm
  • Measurements depth: 1863 mm
  • Measurements height: 2163 mm
  • Machine weight: 6000 kg

Control Unit

  • Brand: Fanuc
  • Model: i Series

Main drive

  • Number of spindles: 2
  • Spindle speed range: 3500 1/MIN
  • Number of axis: 4

Movement

  • X-AXIS Movement: 260 mm
  • Y-AXIS Movement: +/- 52.5 mm
  • Z-AXIS Movement: 830 mm

Turret

  • Number of turrets: 1

Tools

  • Slots in storage: 12

Media

  • Chip conveyor: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Turning over bed 780 mm, over carriage 630 mm
      • - Maximum machining diameter 376 mm
      • - Maximum machining length 760 mm
      • - Bar capacity 76 mm
      • - Main spindle motor power 22/15 kw
      • - Turret milling power 5. 5 kw; speed 5000 rpm
      • - 0. 001 degree c axis
      • - Subspindle speed 4500 rpm, power 7. 5 kw
      • - 3 jaw chuck, tooling
      • - Tool setter, parts catcher, coolant
    • Qualitative Machine Benefits:
      • - Very good condition
      • - Includes machine manual

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
