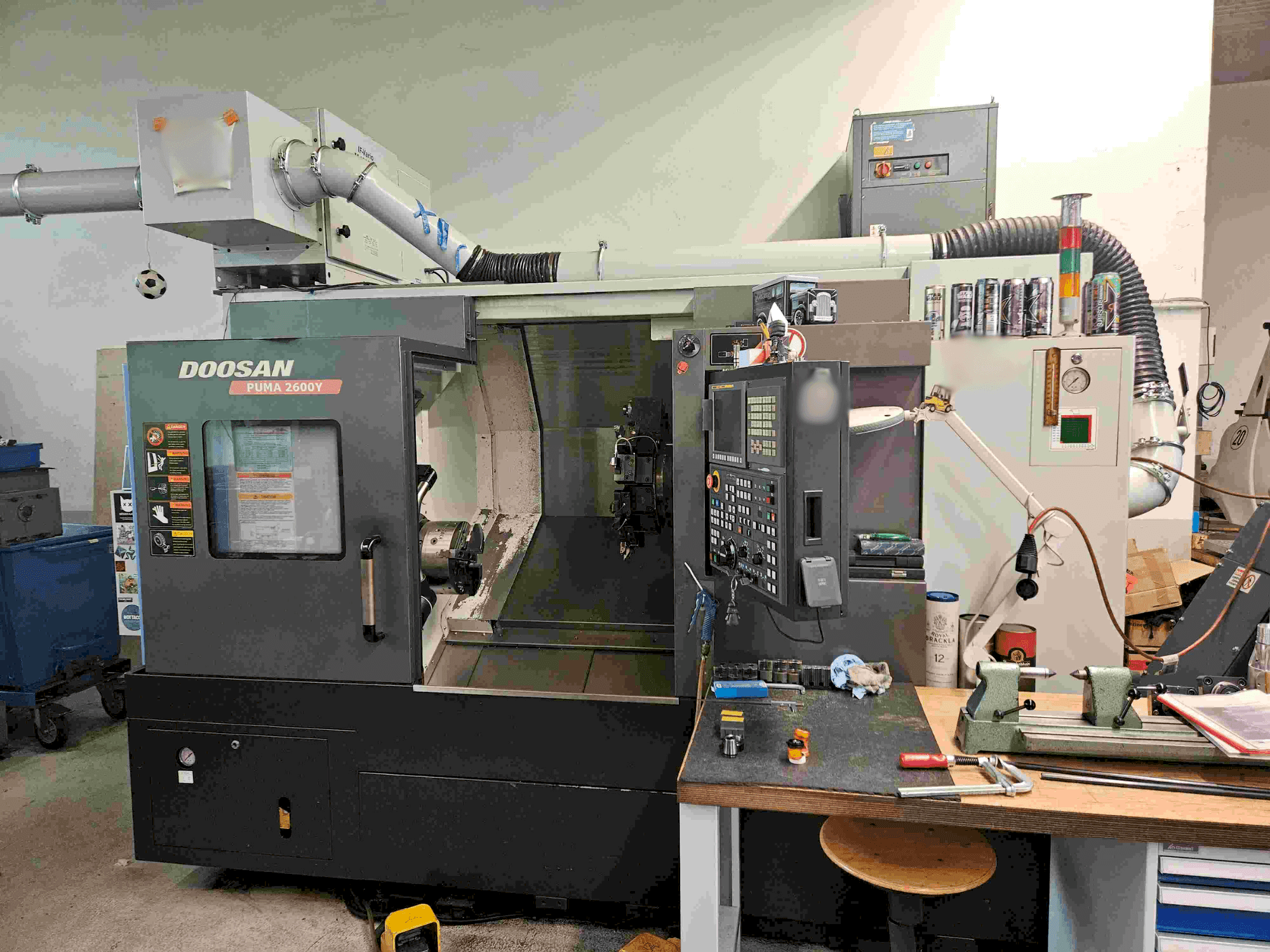

Front view of DOOSAN PUMA 2600Y  machine

DOOSAN - PUMA 2600YDE-MIL-DOO-2012-00002

73,500 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp

This 3-axis DOOSAN PUMA 2600Y was manufactured in 2012. It features a max. swing diameter of 680 mm, max. turning diameter of 376 mm, and max. turning length of 760 mm. Equipped with a spindle speed of 5000 rpm and a rapid traverse rate of 30 m/min in X and Z, and 10 m/min in Y. It also includes a combination holder and both axial and angle drilling/milling units. For more information about this horizontal machining center, please reach out to us.


  • brand: DOOSAN
  • year: 2012
  • MODEL: PUMA 2600Y
  • production hours: 5250
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (horizontal)
  • availability: Immediately

Technical Information - DOOSAN PUMA 2600Y

General Data

  • Measurements width: 1868 MM
  • Measurements depth: 3600 MM
  • Measurements height: 2163 MM
  • Machine weight: 6000 KG

Main drive

  • Spindle speed range: 5000 1/MIN


  • X-AXIS Movement: 260 mm
  • X-AXIS Rapid traverse: 30 m/min
  • Y-AXIS Movement: 830 mm
  • Y-AXIS Rapid traverse: 30 m/min
  • Z-AXIS Movement: 105 mm
  • Z-AXIS Rapid traverse: 10 m/min


  • Slots in storage: 12

    Additional Equipment

    • - Combination holder D50x100
    • - axial drilling and milling unit
    • - angle drilling and milling unit
    • - straight drilling/milling device: torque max 50 Nm, speed max 6000 1/min, tool holder ER-32 QF

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Maximum swing diameter: 680 mm
        • - Swing diameter above the carriage: 630 mm
        • - Recommended turning diameter: 255 mm
        • - Maximum turning diameter: 376 mm
        • - Maximum turning length: 760 mm
        • - Rod clearance: 76 mm
        • - Spindle diameter: 86mm
        • - Tool size external tools: 25mm
        • - Diameter of boring bar holder: 50mm
        • - Tailstock: penole diameter 100mm, penole inner ball mt5
      • Qualitative Machine Benefits:
        • - Control on: 12061h
        • - Processing time: 4485h

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
