DOOSAN 3100L

Photo Gallery

DOOSAN - 3100LGB-TUR-DOO-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

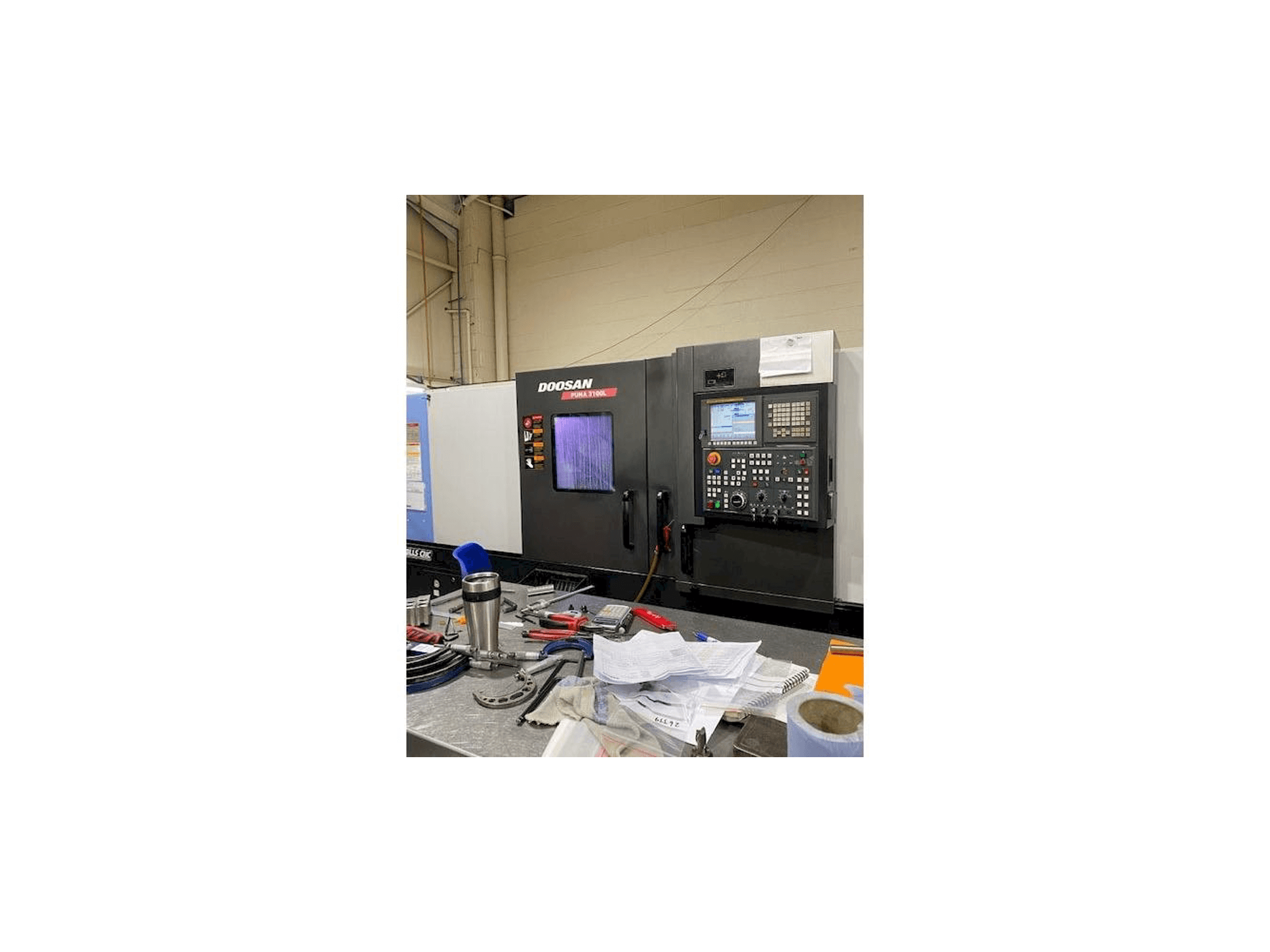

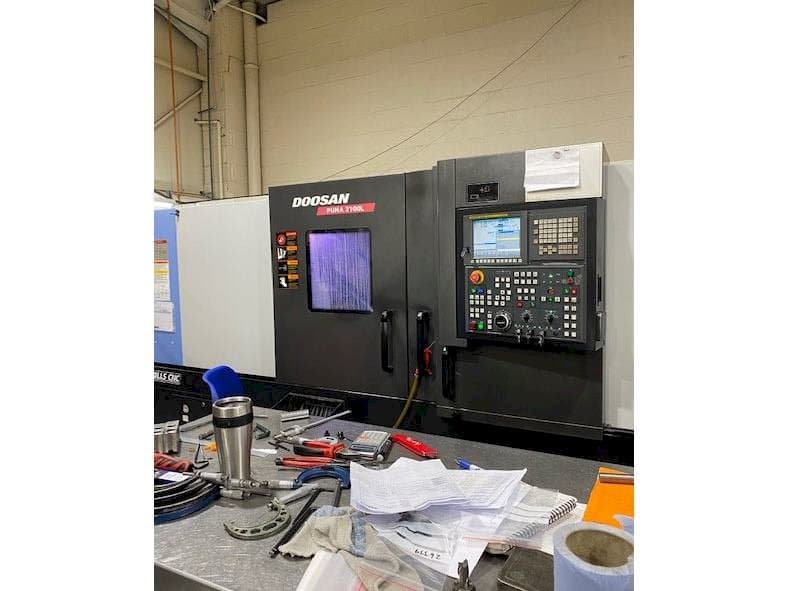

Doosan Puma 3100L Lathe

This Doosan Puma 3100L Lathe was made in 2013 in the United States. It is equipped with a FANUC i Series with iGuide control unit and has 2 axis. The machine has a spindle speed of 2800 rpm, is in very good condition and well maintained.

Overview

brand: DOOSAN
year: 2013
MODEL: 3100L
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN 3100L

General Data

Measurements width: 5599 mm
Measurements depth: 2067 mm
Measurements height: 2010 mm
Machine weight: 7350 kg

Control Unit

Model: i Series with iGuide
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 2800 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 293 mm
Z-AXIS Movement: 1350 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 10

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition!
Chuck diameter: 300mm

Technical Machine Benefits

Swing over bed 850 mm
Swing over the cross-slide: 670mm
Maximum cutting diameter: 525 mm
Maximum cutting length: 1310mm
Spindle motor power: 22/18. 5kw
Spindle nose: a2-11
Bar capacity: 102mm
Rapid feedrates: xz: 30m/minute
3tailstock quill diameter 100mm, mt #5
Swarf conveyor, tool setter, 3 jaw chuck, tooling, coolant, interlocked guards, low volt light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
