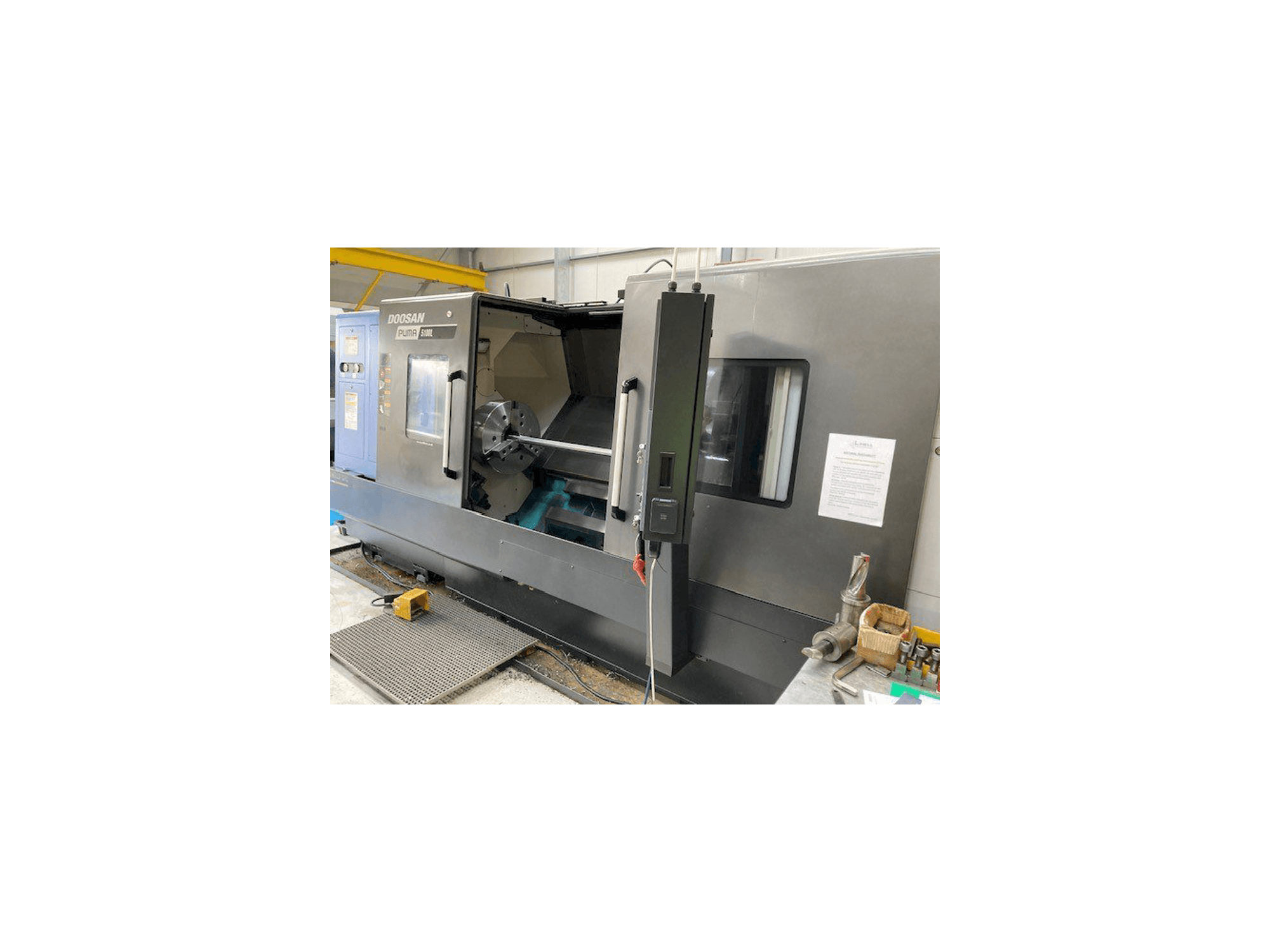

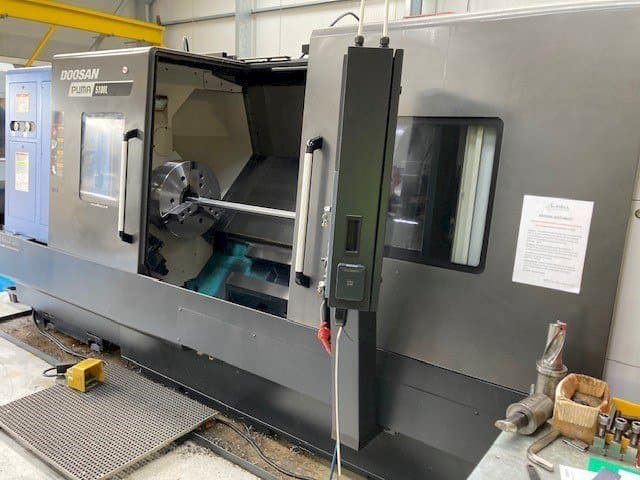

DOOSAN PUMA 5100LB Lathe

This DOOSAN 5100LB Lathe was made in 2018. It is equipped with a Fanuc Series OiT control unit and has 2 axis. The machine has a spindle speed of 1500 rpm.

Overview

brand: DOOSAN
year: 2018
MODEL: 5100LB
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: Fanuc

Technical Information - DOOSAN 5100LB

Control Unit

Brand: Fanuc
Model: Series OiT

Main drive

Spindle speed range: 1500 1/MIN
Number of axis: 2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 900 mm
- - Swing over saddle: 690 mm
- - Max turning dia: 650 mm
- - Distance between centres: 204. 2 mm
- - Spindle bore: 181 mm
- - Bore through draw tube: 166. 5mm
- - Spindle power: 37/45 kw
- - Machine with: 530mm 3 jaw hydraulic chuck
Qualitative Machine Benefits:
- - Oil skimmer
- - Swarf conveyor
- - Flood coolant through turret

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
