Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DOOSAN - 700LGB-TUR-DOO-2014-00007
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- Doosan Puma 700L Lathe

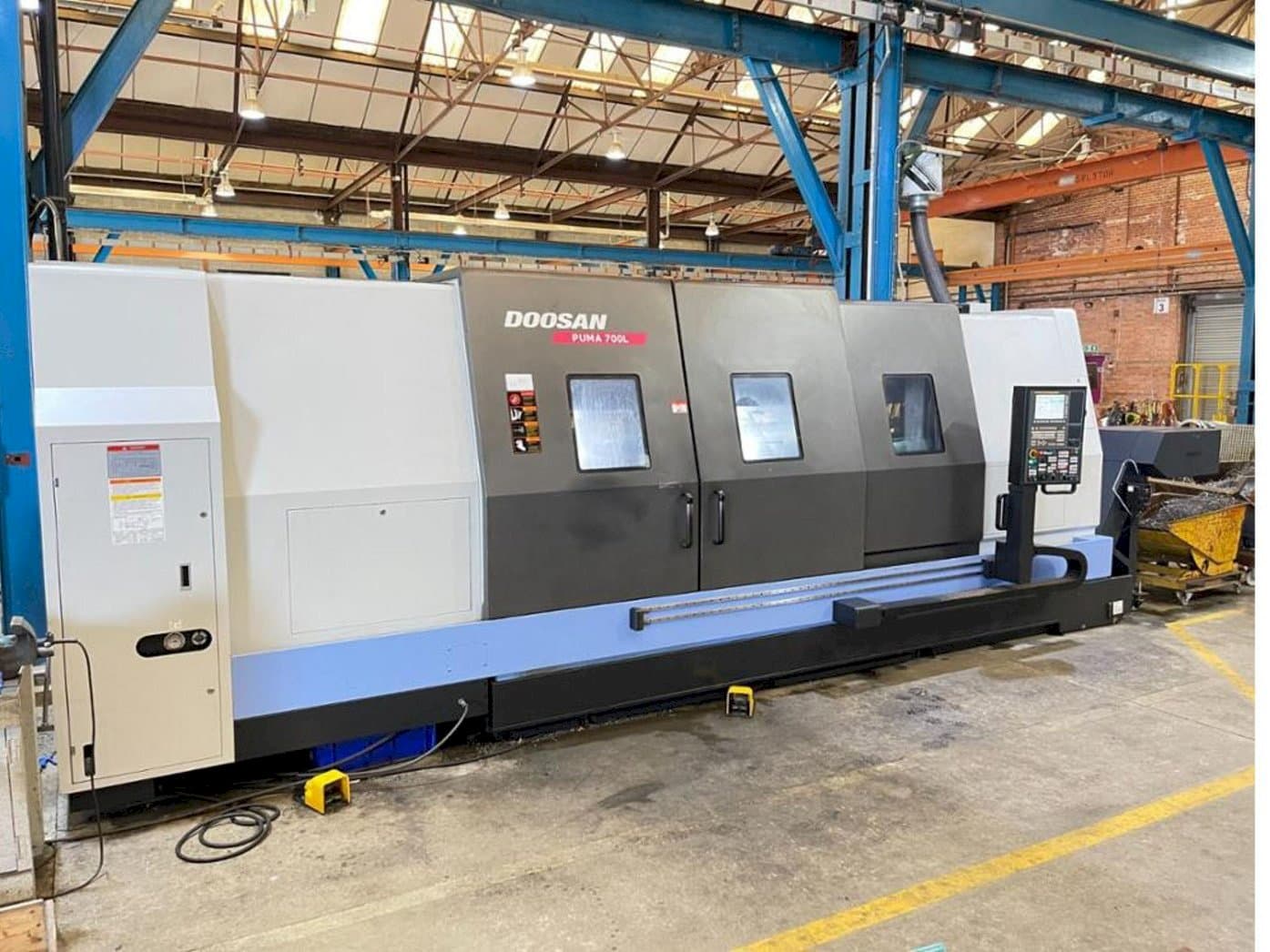

This Doosan 700L Lathe was manufactured in the year 2014 in South Korea. It is equipped with a Fanuc Series 32i-Model B control unit and has 2 axis. The machine has a spindle speed of 1500 rpm.
Overview
- brand: DOOSAN
- year: 2014
- MODEL: 700L
- application type: Turning
- Location: United Kingdom
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - DOOSAN 700L
General Data
- Measurements width: 8510 mm
- Measurements depth: 2770 mm
- Measurements height: 2590 mm
- Machine weight: 21800 kg
Control Unit
- Model: Series 32i-Model B
- Brand: FANUC
Main drive
- Number of spindles: 1
- Spindle speed range: 1500 1/MIN
- Number of axis: 2
Movement
- X-AXIS Movement: 470 mm
- Z-AXIS Movement: 470 mm 3235
Turret
- Number of turrets: 1
Tools
- Slots in storage: 12
- Max tool diameter: 32x32 mm
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Max. Swing 1030 mm
- - Swing over the cross-slide: 800mm
- - Maximum cutting diameter : 900mm
- - Maximum cutting length: 3200mm
- - Bar capacity: 164mm
- - Chuck size: 609mm
- - Rapid feedrates: xz: 12 x 10m/minute
- - Spindle motor power: 45/37kw
- - Tailstock body travel: 3135mm, quill diameter 160mm, quill stroke 150mm, taper mt #6
- - Spindle nose: a1-15
- Qualitative Machine Benefits:
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
