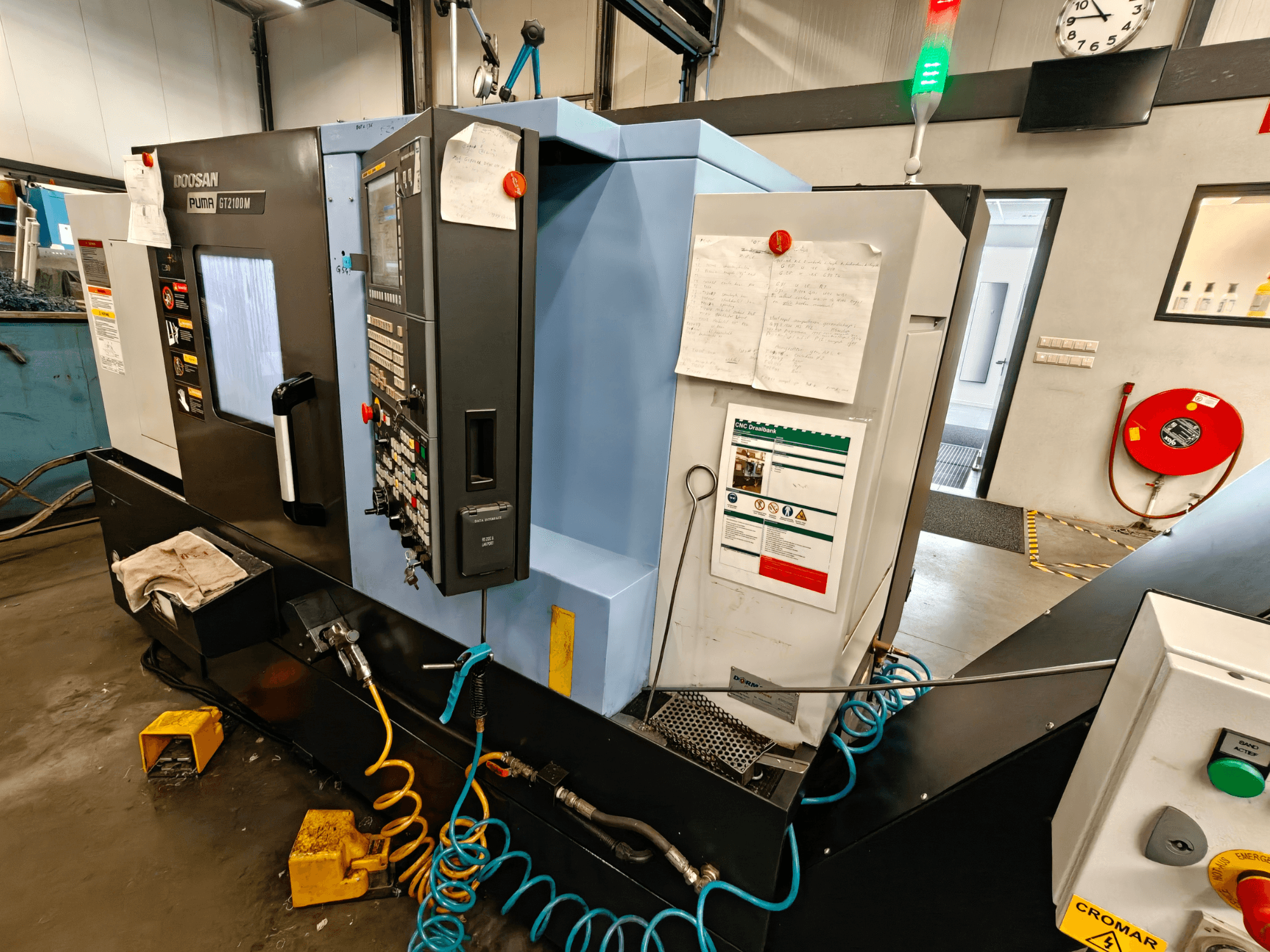

Front view of DOOSAN Puma GT 2100M horizontal turning machine with control panel, safety features, and maintenance notes visible.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Puma GT 2100M

Photo Gallery

DOOSAN - Puma GT 2100MNL-TUR-DOO-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Puma GT 2100M For Sale | gindumac.com

This 3-axis DOOSAN Puma GT 2100M was manufactured in 2017. It features a maximum turning diameter of 300 mm and a turning length of 513 mm. The machine is equipped with 12 tool stations and offers rapid traverse speeds of 24 m/min in the X-axis and 30 m/min in the Z-axis. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma GT 2100M horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2017
MODEL: Puma GT 2100M
production hours: 2896
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Puma GT 2100M

Control Unit

Control Brand: FANUC
Control Model: i-series

Dimensions

Machine Height: 1700 mm
Machine Length: 2834 mm
Machine Weight: 3600 kg
Machine Width: 1628 mm

Movement

Number of Axes: 3
X-axis Travel: 230 mm
Z-axis Travel: 580 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Speed: 4500 RPM

Additional Information

Swing over bed: 600 mm
Swing over saddle: 390 mm
Recommended turning diameter: 210 mm
Max. turning diameter: 300 mm
Max. turning length: 513 mm
Bar working diameter: 65 mm
Spindle nose: ASA A2-6
Spindle bearing diameter (front): 110 mm
Spindle through-hole diameter: 76 mm
Minimum spindle indexing angle (C-axis): 0.001°
Number of tool stations: 12
OD tool size: 25 mm
Boring bar diameter: 40 mm
Indexing time (1st swivel time): 0.15 s
Rotary tool spindle speed: 5,000 rpm
Rapid traverse (X-axis): 24 m/min
Rapid traverse (Z-axis): 30 m/min
Quill diameter: 80 mm
Quill bore taper (live): MT4
Quill travel: 80 mm
Electric power supply: 30.43 kVA

Additional equipment

None specified (no robots, automation or bar feeder listed)
Tools excluded; available at additional cost

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
