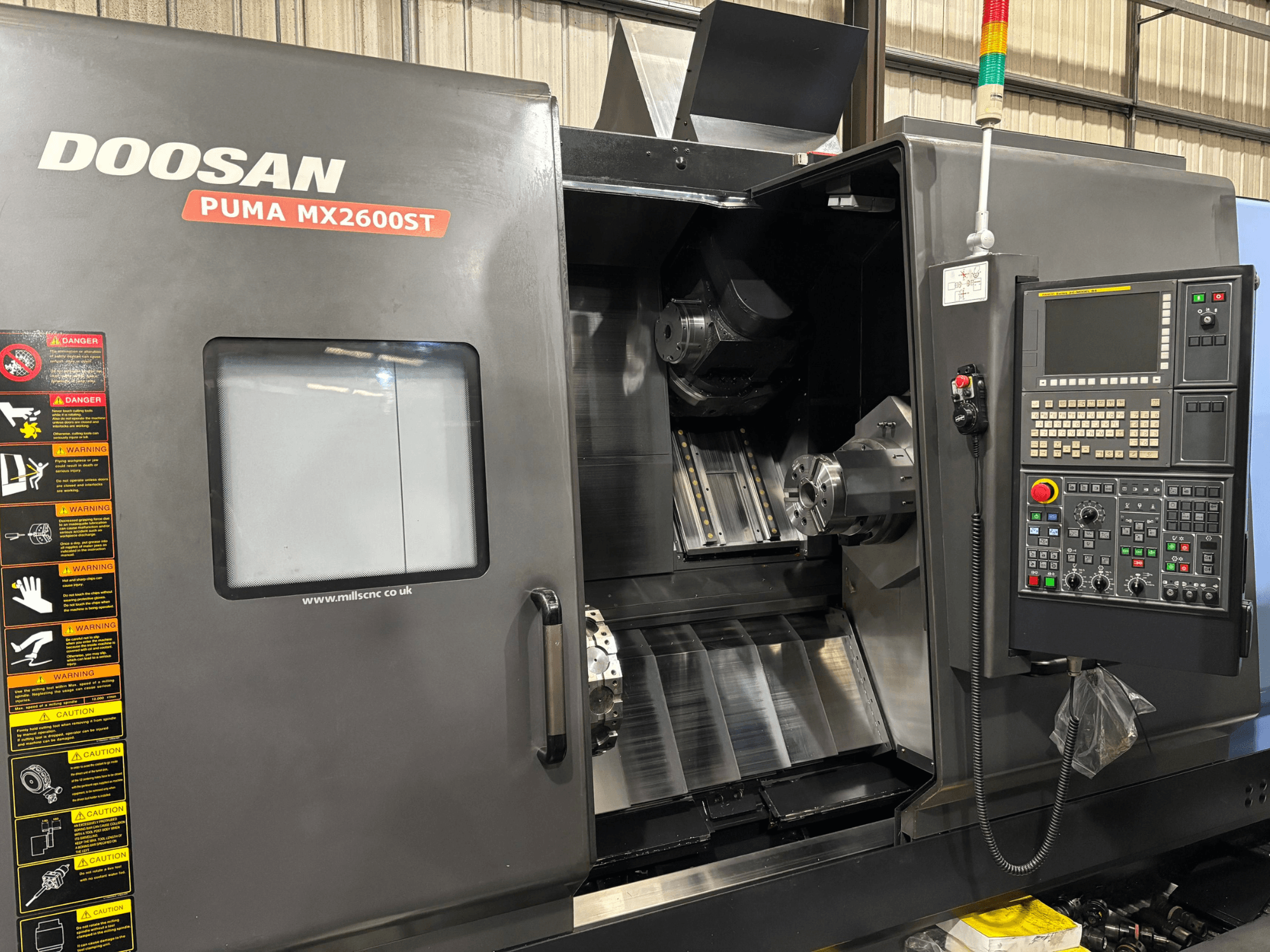

This 7-axis DOOSAN Puma MX2600ST was manufactured in 2014, featuring a robust horizontal turning machine design. It includes a B-axis of +/-120 degrees, extensive X, Y, Z travels, and a bar capacity of 76mm. The machine is equipped with a FANUC 31i-Model B5 control, a 40 station tool changer, and a 22kW spindle motor. If you are looking to get high-quality turning capabilities consider the DOOSAN Puma MX2600ST machine we have for sale. Contact us for more information.
Overview
- brand: DOOSAN
- year: 2014
- MODEL: Puma MX2600ST
- application type: Turning
- Location: United Kingdom
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DOOSAN Puma MX2600ST
Control Unit
- Control Brand: FANUC
- Control Model: Series 31i-MODEL B5
Dimensions
- Machine Weight: 15500 kg
Movement
- Number of Axes: 7
- X-axis Travel: 630 mm
- Y-axis Travel: 115 mm
- Z-axis Travel: 1585 mm
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 4000 RPM
Additional Information
B-axis: +/-120 degrees
X2-axis travel: 220 mm
Z2-axis travel: 1515 mm
Bar capacity: 76 mm
Chuck size: 250 mm (10")
Swing: 1000 mm
Maximum cutting diameter: 760 mm
Standard cutting diameter: 255 mm
Maximum cutting length: 1540 mm
Milling spindle speed: 12,000 rpm
Main spindle nose: A2-8
Main spindle C-axis: 0.001 degree
Sub spindle nose: A2-8
Sub spindle speed: 4000 rpm
Sub spindle C-axis: 0.001 degree
Sub spindle stroke (A-axis): 1550 mm
Tool changer capacity: 40 stations
Tool interface: CAPTO C6
Lower turret
Additional equipment
Swarf (chip) conveyor
Through-spindle coolant
Remote hand wheel
Tool setter
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
