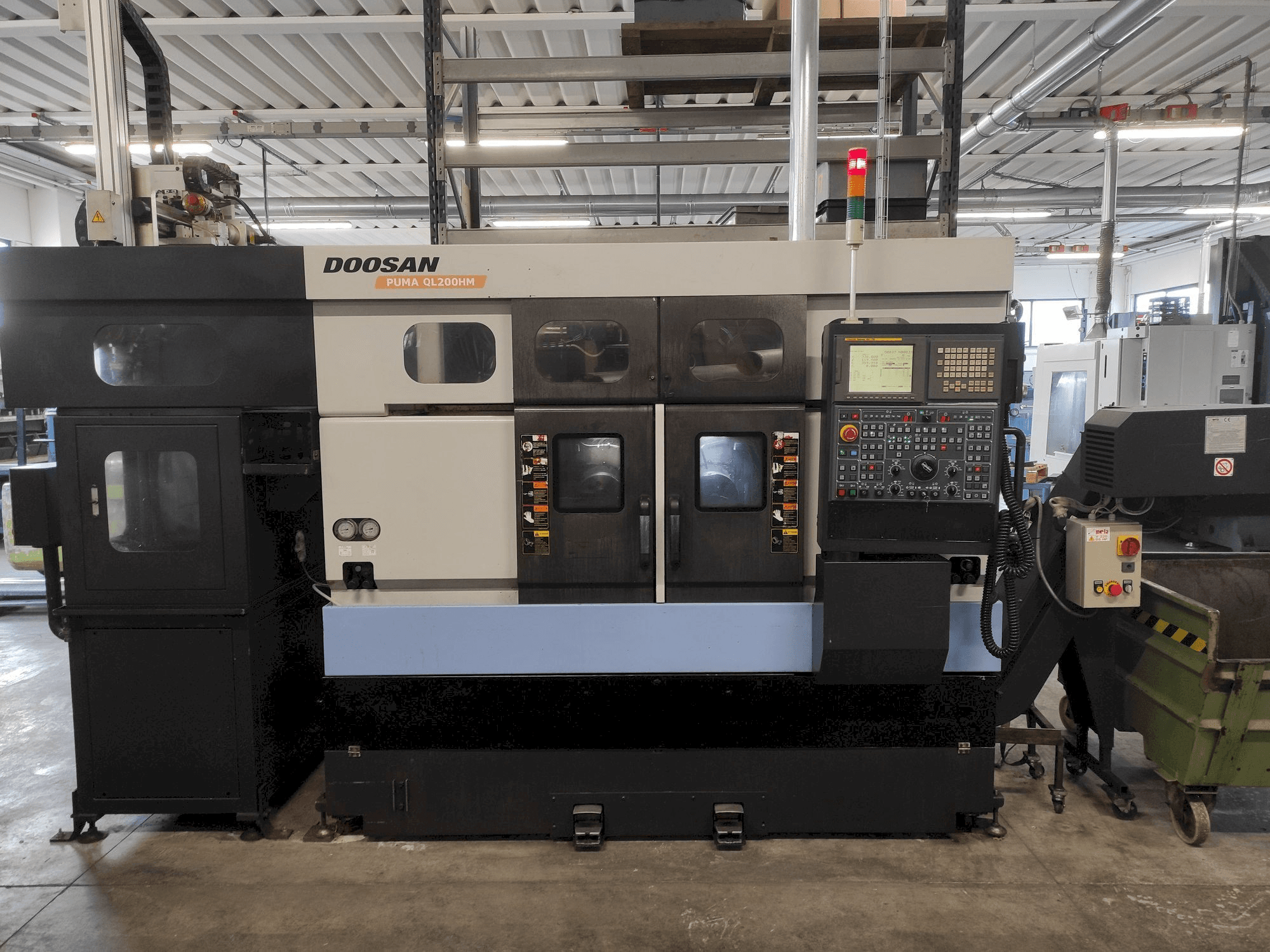

Front view of Doosan Puma QL200HM machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN QL200HM

Photo Gallery

DOOSAN - QL200HMIT-TUR-DOO-2008-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Puma QL200HM Lathe

This Doosan QL200HM Lathe was manufactured in the year 2008 in Korea. It is equipped with a Fanuc Series 18i-TB control unit. The machine has a spindle speed of 40-4000 rpm.

Overview

brand: DOOSAN
year: 2008
MODEL: QL200HM
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN QL200HM

Control Unit

Control Brand: FANUC
Control Model: Series 18i-TB

Dimensions

Machine Weight: 7200 kg

Movement

C-axis: 360°
X-axis Travel: 180 mm

Technical Specification

Spindle Power: 11 kW
Spindle Speed: 4000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Prismatic guides and counter guides coated with anti-friction material
Cast iron pallet, separate type (l+r), inclination
Maximum power available starting from the speed of: 562 min^-1
Max. Torque spindle motor (cont. /30 min. ): 187/255 nm
Front bearing diameter: 100mm
Internal diameter of the tie rod: 52 mm
C2 axis positioning continuous spindle angular, interpolating, resolution
Automatic bidirectional turret, without lifting, controlled by electric motor, with hydraulic locking; connection type: vdi-30 radial
Motorized turret stations: 12 nr
Coupling disc diameter: 150 mm

Technical Machine Benefits

Standard 3-jaw hydraulic chuck, diameter: 210 mm
Series of soft jaws and series of reversible hardened jaws
Maximum power available starting from the speed of: 529 min^-1
Max. Torque spindle motor (cont. /30 min. ): 198/270 nm
Front bearing diameter: 100mm
Chuck diameter: 62 mm
Internal diameter of the tie rod: 52 mm
C1 axis positioning continuous spindle angular, interpolating, resolution
Standard 3-jaw hydraulic chuck, closed type, diameter: 210 mm
Series of soft jaws and series of reversible hardened jaws -

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
