DOOSAN - SMX 3100PL-TUR-DOO-2014-00002

Name: DOOSAN SMX 3100
Brand: DOOSAN
SKU: PL-TUR-DOO-2014-00002
Price: 153000 EUR
Availability: InStock

153,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN SMX 3100 For Sale | gindumac.com

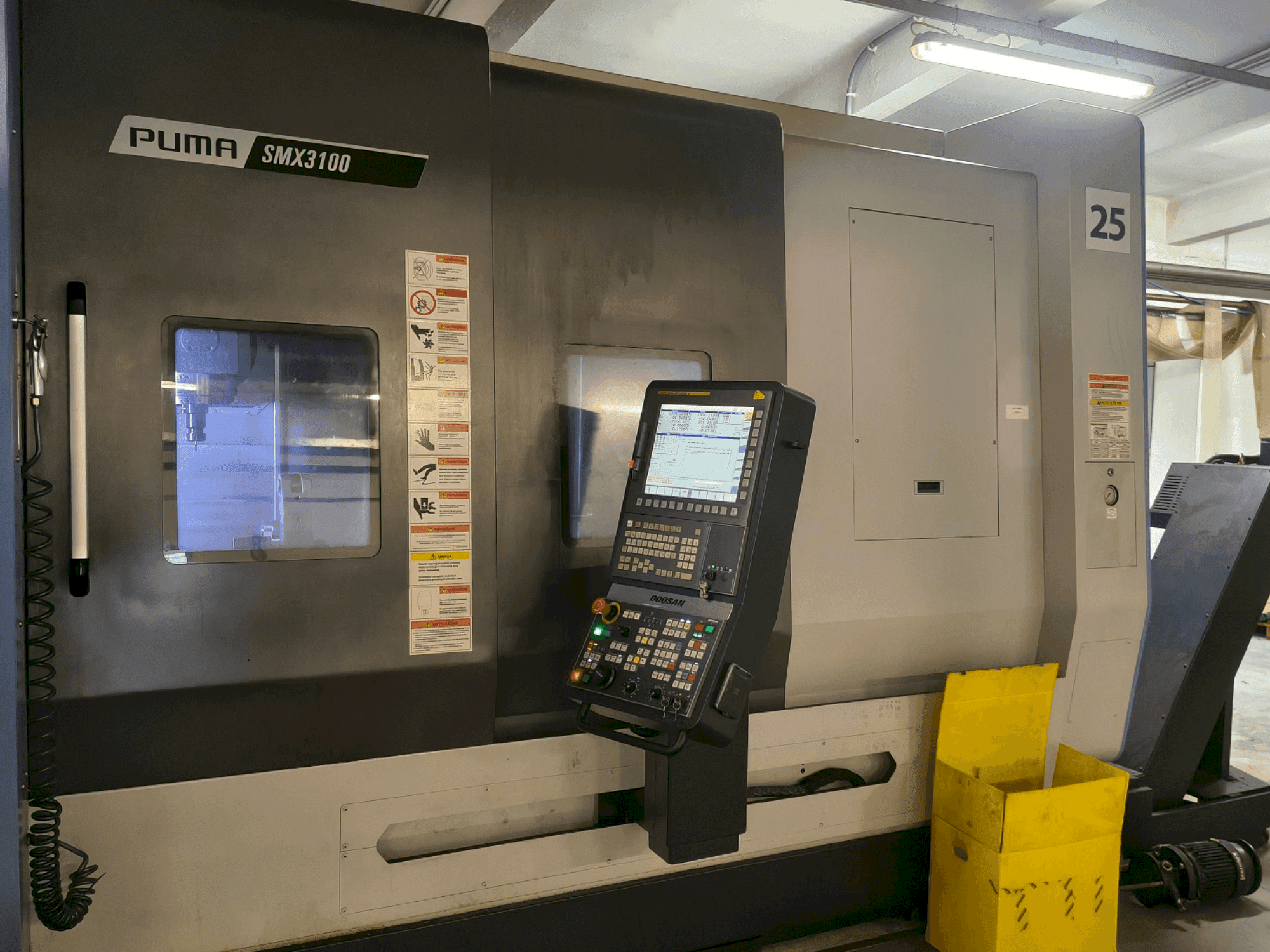

This 5-axis DOOSAN SMX 3100 was manufactured in 2014, featuring a multi-tasking turning center with high rigidity and precision. It offers a maximum turning diameter of 660 mm and a length of 1540 mm. The machine includes a Y-axis stroke of 300 mm and a B-axis rotation of ±120°. It supports a main spindle speed up to 3000 rpm and a milling spindle speed up to 12,000 rpm. If you are looking to get high quality turning capabilities consider the DOOSAN SMX 3100 machine we have for sale. Contact us for more information.

Overview

brand: DOOSAN
year: 2014
MODEL: SMX 3100
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN SMX 3100

Control Unit

Brand: FANUC
Model: Series 3i-B

Main drive

Number of spindles: 2
Spindle speed range: 3000 1/MIN
Number of axis: 5

Movement

Y-AXIS Movement: 300 mm

Additional Information

Max turning diameter: 660 mm
Max turning length: 1540 mm
Max bar turning diameter: 102 mm (manual) / 81 mm (continuous)

B-axis rotation (milling spindle head): ±120° (total 240°)

Spindles:
- Main spindle type: A2-11
- Counter spindle speed: up to 4000 rpm
Milling spindle:
- Speed: up to 12,000 rpm
Tooling:
- ATC magazine capacity: 40 tools
- Lower turret: 12 motorized tool positions
- Tool motor power: 4.7 kW (continuous) / 5.6 kW (30 min)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
