DOOSAN VCF 850LSR

DOOSAN - VCF 850LSRIL-MIL-DOO-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

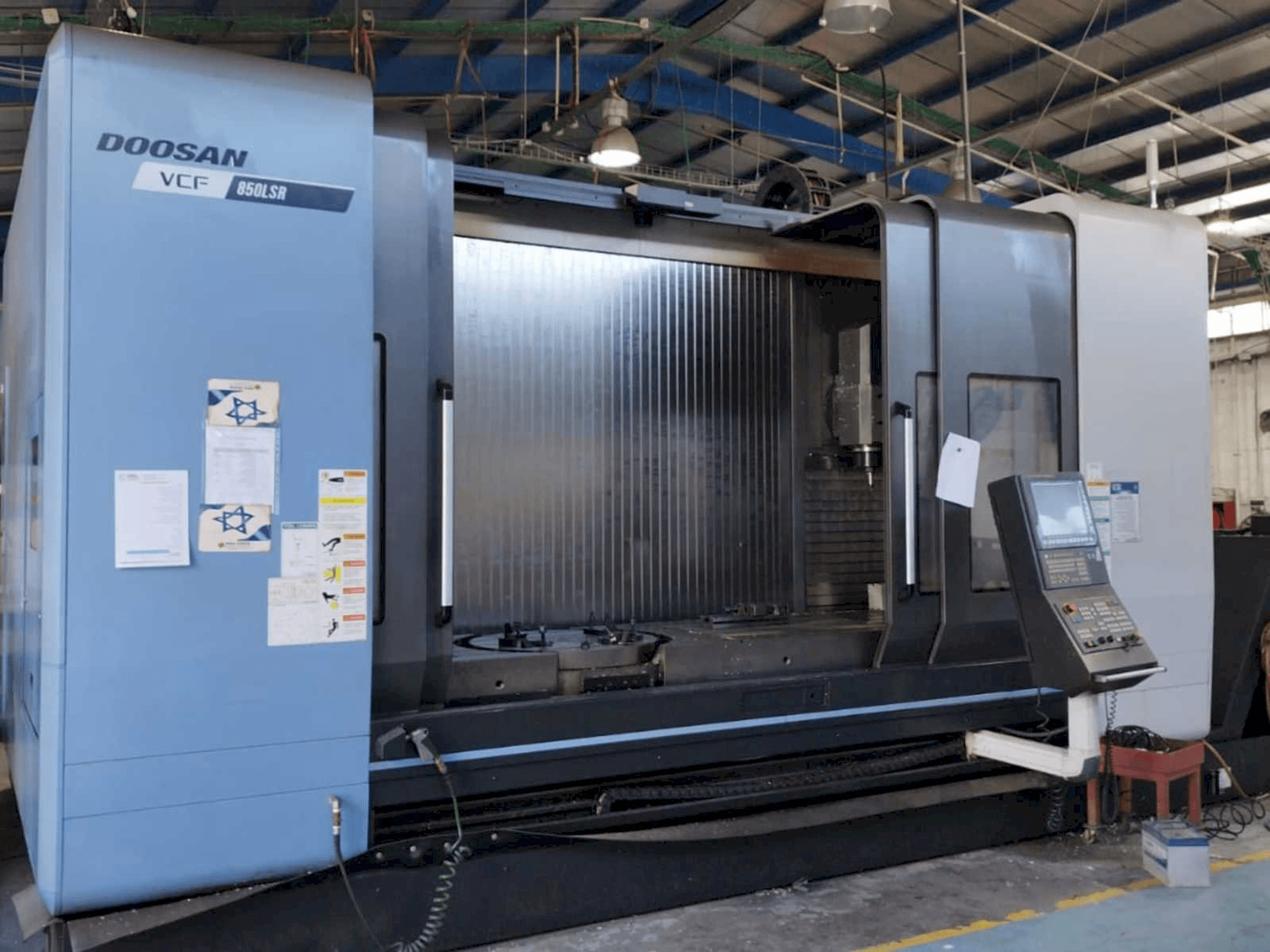

Doosan VCF 850LSR Vertical Machine Center.

This Doosan VCF 850LSR Vertical Machine Center was manufactured in the year 2017 in Korea. It is equipped with a FANUC F31i-5AX control unit and has 5 axis. The machine has a spindle speed of 12000 rpm and a max. tool diameter of 80 mm.

Overview

brand: DOOSAN
year: 2017
MODEL: VCF 850LSR
application type: Milling
Location: Israel
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN VCF 850LSR

General Data

Measurements width: 3795 mm
Measurements depth: 5440 mm
Measurements height: 3205 mm
Machine weight: 24000 KG

Control Unit

Model: F31i-5AX
Brand: FANUC

Main drive

Spindle motor power: 18.5/22 kw
Spindle bore: 12000
Tool taper: BT40
Number of axis: 5

Movement

X-AXIS Movement: 3000 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 850 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 800 mm
Z-AXIS Rapid traverse: 40 m/min

Workpiece

Workpiece weight: 3500 kg

Table

Outer length: 3500 mm
Outer width: 870 mm

Tools

Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table surface mm t-slot (5-150 x 18h8)
- - Max. Workpiece height mm 900
- - Spindle to table surface mm 100-900
- - Max. Torque (25% ed) nm 204
- - Power transmission - built-in drive
- - Taper type iso #40, 7/24 taper
- - Max. Cutting feedrate 20,000 mm/min
- - Positioning mm ±0. 005/full stroke
- - Repeatability mm ±0. 002
- - Tool shank mas403 bt-40
Qualitative Machine Benefits:
- - Number of pockets: atc60

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
