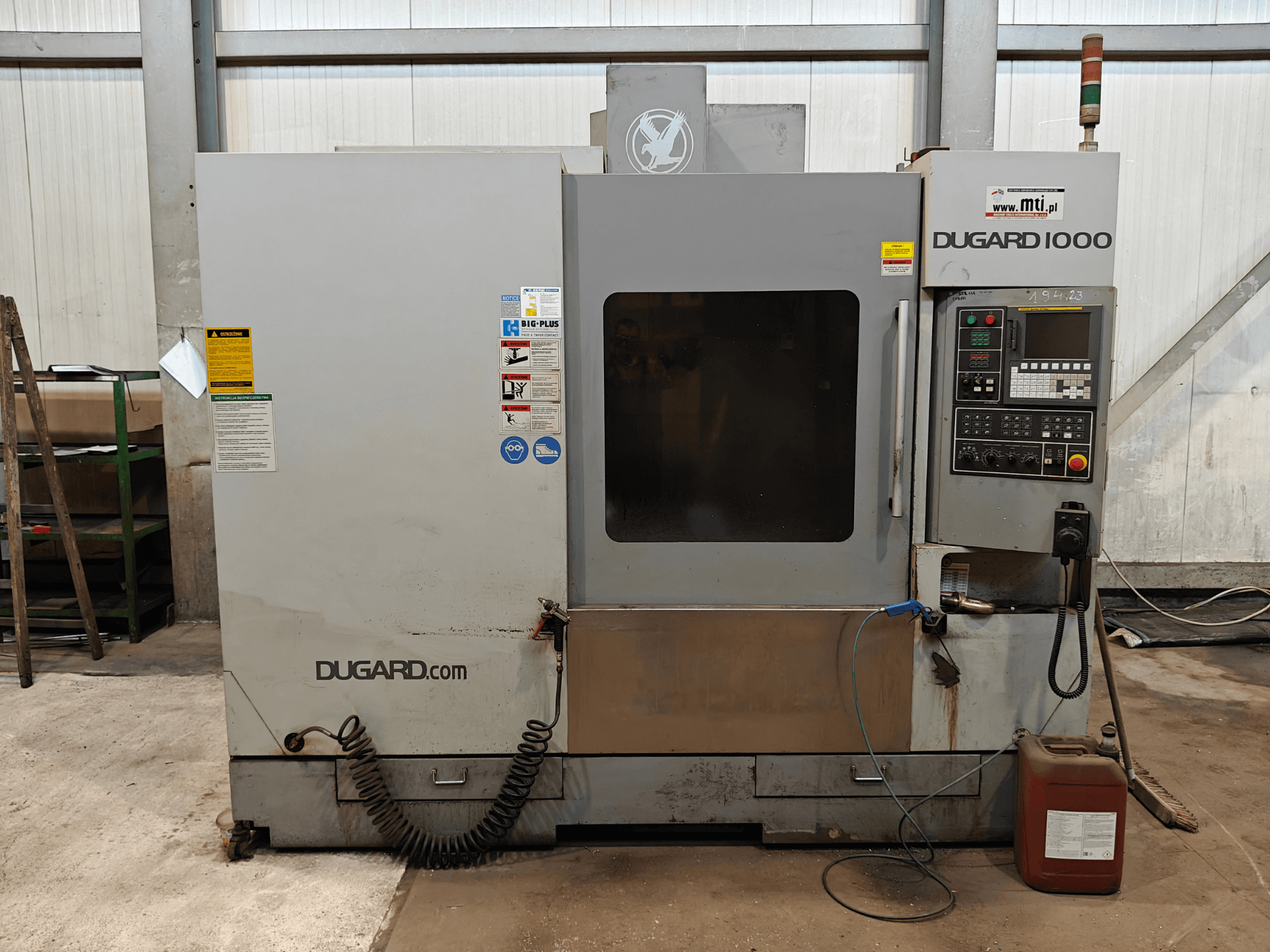

➤ Used Dugard 1000Y Plus For Sale | gindumac.com

This Dugard 1000Y Plus was manufactured in 2011. It features a table size of 1200 × 600 mm, a maximum table load of 600 kg, and a tool magazine capacity of 24 tools. The machine includes a fourth rotary axis and is equipped with a FANUC 0i-MD control. If you are looking to get high quality milling capabilities consider the Dugard 1000Y Plus machine we have for sale. A large set of accessories and equipment is included. Contact us for more information.

Overview

brand: Dugard
year: 2011
MODEL: 1000Y Plus
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Dugard 1000Y Plus

Control Unit

Control Brand: FANUC
Control Model: 0i-MD

Dimensions

Machine Weight: 7000 kg
Table Length: 600 mm
Table Load: 600 kg
Table Width: 1200 mm

Movement

Number of Axes: 4
X-axis Travel: 1020 mm
Y-axis Travel: 610 mm
Z-axis Travel: 550 mm

Technical Specification

Max. Tool Weight: 7 kg
Spindle Power: 15 kW
Spindle Speed: 8000 RPM
Taper Size: ISO 40
Through-spindle Coolant: Yes
Tool Stations: 24

Additional Information

Table size: 1200 × 600 mm
Spindle taper: ISO 40
Through-spindle coolant system
Tool magazine capacity: 24 tools
Most common control: FANUC 0i-MD

Additional equipment

Fourth rotary axis included
Tool and workpiece measuring probe
Extra coolant feeder
Air gun hose for compressed air cleaning
A set of accessories and equipment is included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
