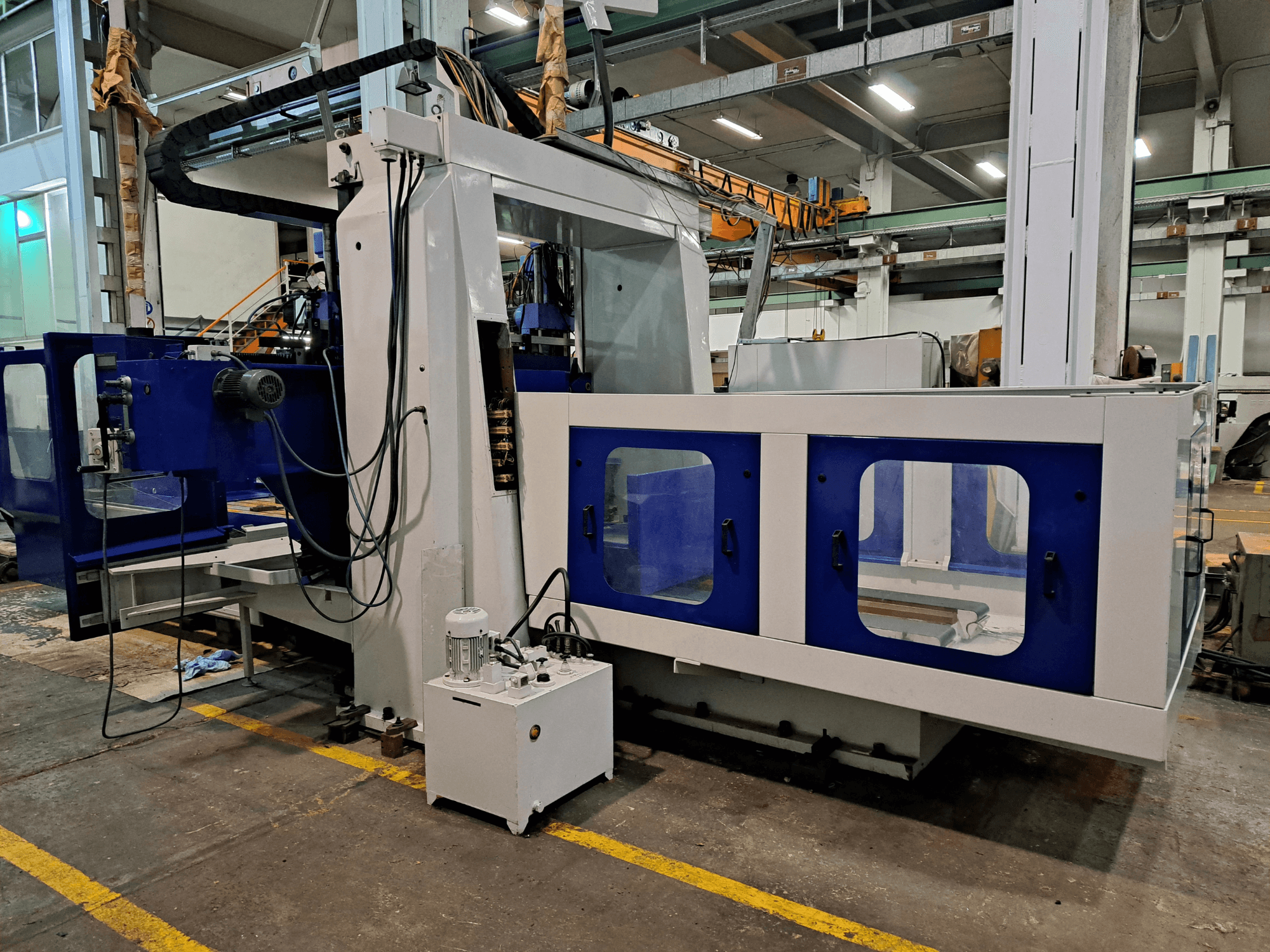

DYE RHE-3000 Bed Type Milling Machine in a workshop, front view showing its large blue and white frame and control panel.
DYE RHE-3000 Bed Type Milling Machine in a workshop, front view showing its large blue and white frame and control panel.

DYE - RHE -3000ES-MIL-DYE-2009-00001

37,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis DYE RHE -3000 Bed Type Milling Machine was manufactured in 2009. It features a substantial table surface of 1000 × 3000 mm, with longitudinal travel of 3000 mm and transverse travel of 1500 mm. The machine is equipped with a grinding wheel diameter of 450 × 80 mm and a spindle speed of 1450 rpm. If you are looking to get high-quality milling capabilities, consider the DYE RHE -3000 machine we have for sale. Contact us for further details.

Overview

  • brand: DYE
  • year: 2009
  • MODEL: RHE -3000
  • application type: Milling
  • Location: Spain
  • machine type: Bed Type Milling Machine

Technical Information - DYE RHE -3000

Dimensions

  • Machine Height: 4100 mm
  • Machine Length: 4700 mm
  • Machine Width: 9000 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 3000 mm
  • Y-axis Travel: 1500 mm
  • Z-axis Travel: 1000 mm

Technical Specification

  • Spindle Speed: 1450 RPM

Additional Information

  • Table surface: 1000 × 3000 mm

  • T-slots: 7 × 22 mm

  • Distance between T-slots: 130 mm

  • Longitudinal travel: 3000 mm

  • Transverse travel: 1500 mm

  • Vertical travel: 1000 mm

  • Vertical stroke: 300 mm

  • Grinding wheel diameter: 450 × 80 mm

  • Motor power: 10 HP

  • Control/display: Fagor NV300-6V

  • Machine dimensions: 4700 × 9000 × 4100 mm

  • Prism head: CTM 90 × 370

  • Prism head speed: 3000 rpm

  • Prism head motor power: 3 HP

  • Condition: Machine in operation

Additional equipment

  • Balancing parallels

  • Wheel holders with grinding wheels

  • Coolant tank with paper filter

  • Hydraulic diamond dressers on head

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
