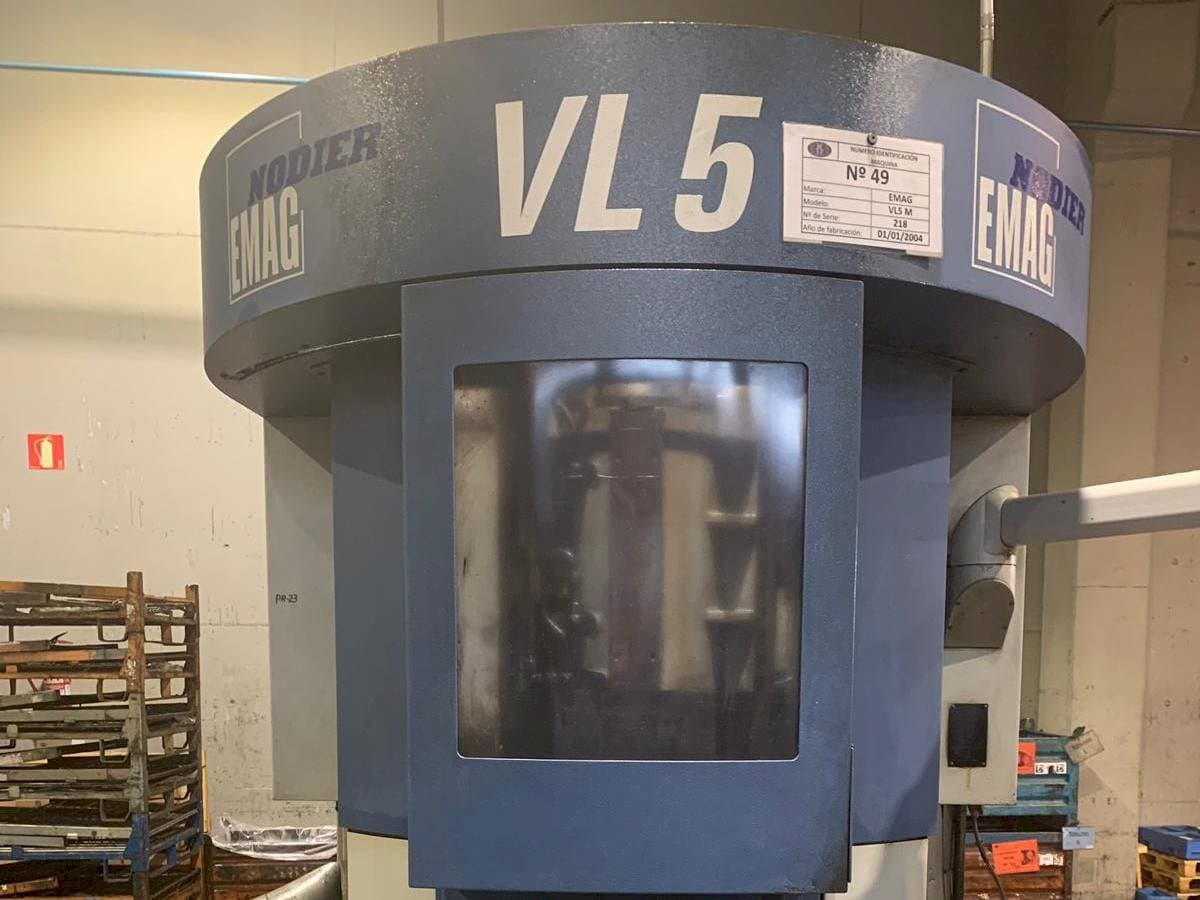

This EMAG VL 5 Vertical Lathe was produced in 2004. Operated through a FANUC Series 18i-TB Control unit, this machine stands out for incorporating a motorized turret VDI 40.
Overview
- brand: EMAG
- year: 2004
- MODEL: VL 5
- application type: Turning
- Location: Spain
- machine type: Lathe
- availability: Sold
- control unit brand: FANUC
- GINDUMAC ID: ES-TUR-EMA-2004-00001
Technical Information
General Data
- Measurements width: 2700 mm
- Measurements depth: 2050 mm
- Measurements height: 2400 mm
- Machine weight: 7000 kg
Control Unit
- Brand: FANUC
- Model: Series 18i-TB
Main drive
- Number of spindles: 1
- Spindle speed range: 4500 rpm 1/MIN
- Spindle motor power: 28/18 kVA
- Spindle bore: 110 mm
Movement
- X-AXIS Movement: 570 mm
- X-AXIS Feed Force: 5 kN
- X-AXIS Rapid traverse: 60 m/min
- Y-AXIS Feed Force: 5 kN
- Z-AXIS Movement: 200 mm
- Z-AXIS Feed Force: 5 kN
- Z-AXIS Rapid traverse: 30 m/min
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 42 kW
Additional Information
- Technical Machine Benefits:
- - Motorized turret vdi 40
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
