- ➤ Used EMCO Emcomat E-200 For Sale | gindumac.com

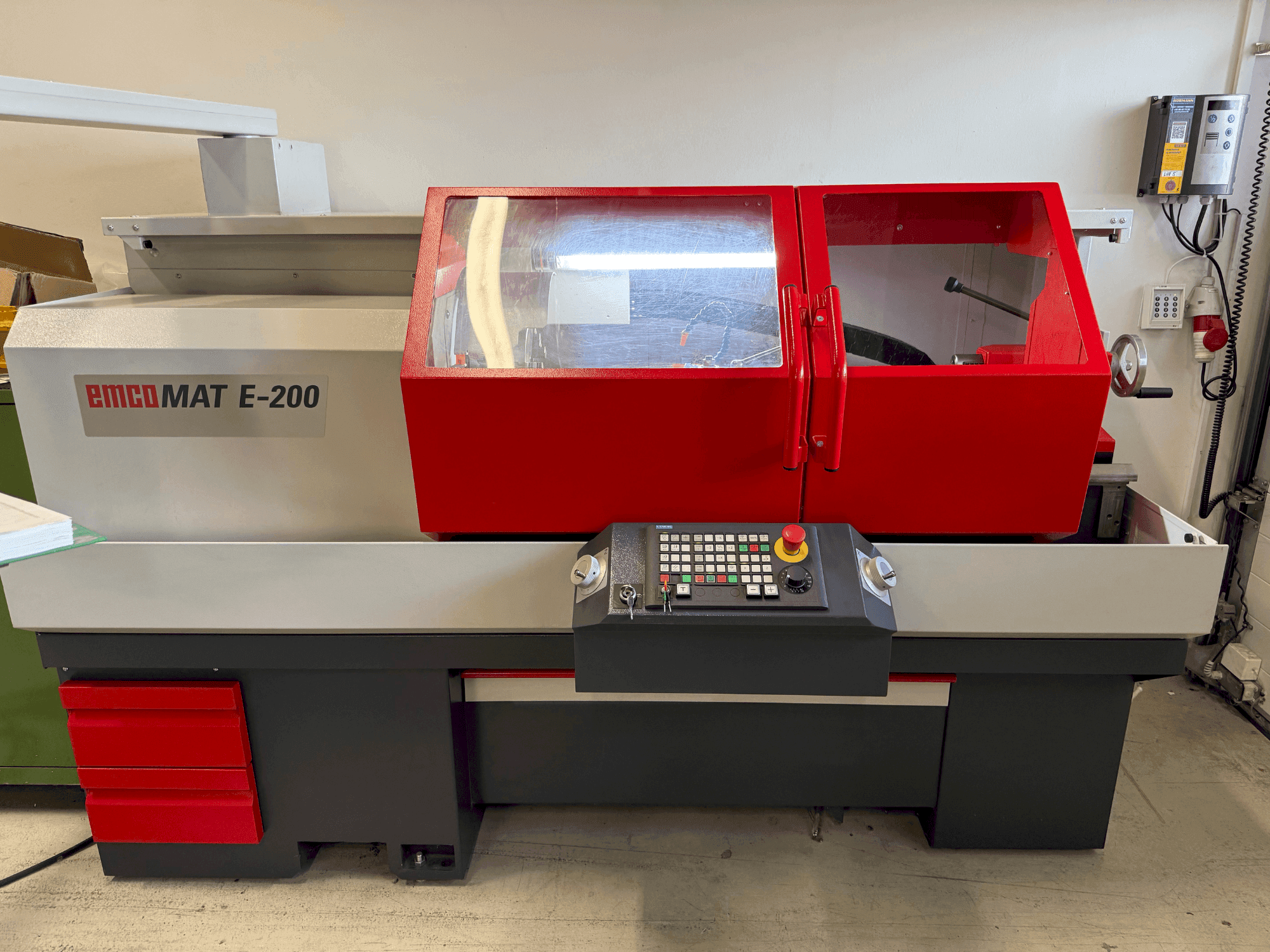

This EMCO Emcomat E-200 was manufactured in 2016. A robust horizontal turning machine featuring a swing over bed of Ø 400 mm and a distance between centers of 1000 mm. It offers a spindle speed range of 50–4000 rpm with stepless speed control and a spindle bore diameter of Ø 80 mm. If you are looking to get high-quality turning capabilities, consider the EMCO Emcomat E-200 machine we have for sale. Contact us for more information.
Overview
- brand: EMCO
- year: 2016
- MODEL: Emcomat E-200
- application type: Turning
- Location: Denmark
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - EMCO Emcomat E-200
Control Unit
- Control Brand: SIEMENS
- Control Model: 828D
Movement
- Number of Axes: 2
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 53 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Ac motor, steplessly adjustable
- Max. Rated torque at main spindle: 108 nm
- Longitudinal travel (carriage): 900 mm
- Cross travel (cross slide): 220 mm
- Distance between centers: 1000 mm
- Center height: 200 mm
- Swing over cross slide: Ø 220 mm
- Permissible workpiece weights unsupported (max. 5 kg at 4000 rpm): 30 kg / supported by tailstock: 80 kg
- Bed width: 260 mm
- Cross slide width: 150 mm
Extra Information
Spindle Spindle mount: Gr. 5 (KK5 / DIN 55029) Spindle bore diameter: Ø 80 mm Spindle diameter at front bearing: Ø 200 mm Max. chuck diameter: Ø 260 mm Max. faceplate diameter: Ø 260 mm Spindle speed range: 50–4000 rpm Speed control: Stepless Tail Stock Quill diameter: Ø 50 mm Quill taper: MK3 Quill stroke: 120 mm Tools Tool cross-section: 20 x 20 mm Feed Feed range X / Z axis: 0–8000 mm/min Max. feed force X: 4 kN Max. feed force Z: 4 kN Ball screw X axis, lead / diameter: 5 / Ø 16 mm Ball screw Z axis, lead / diameter: 5 / Ø 32 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
