➤ Used EMCO MT 110X 1500 M/S For Sale | gindumac.com

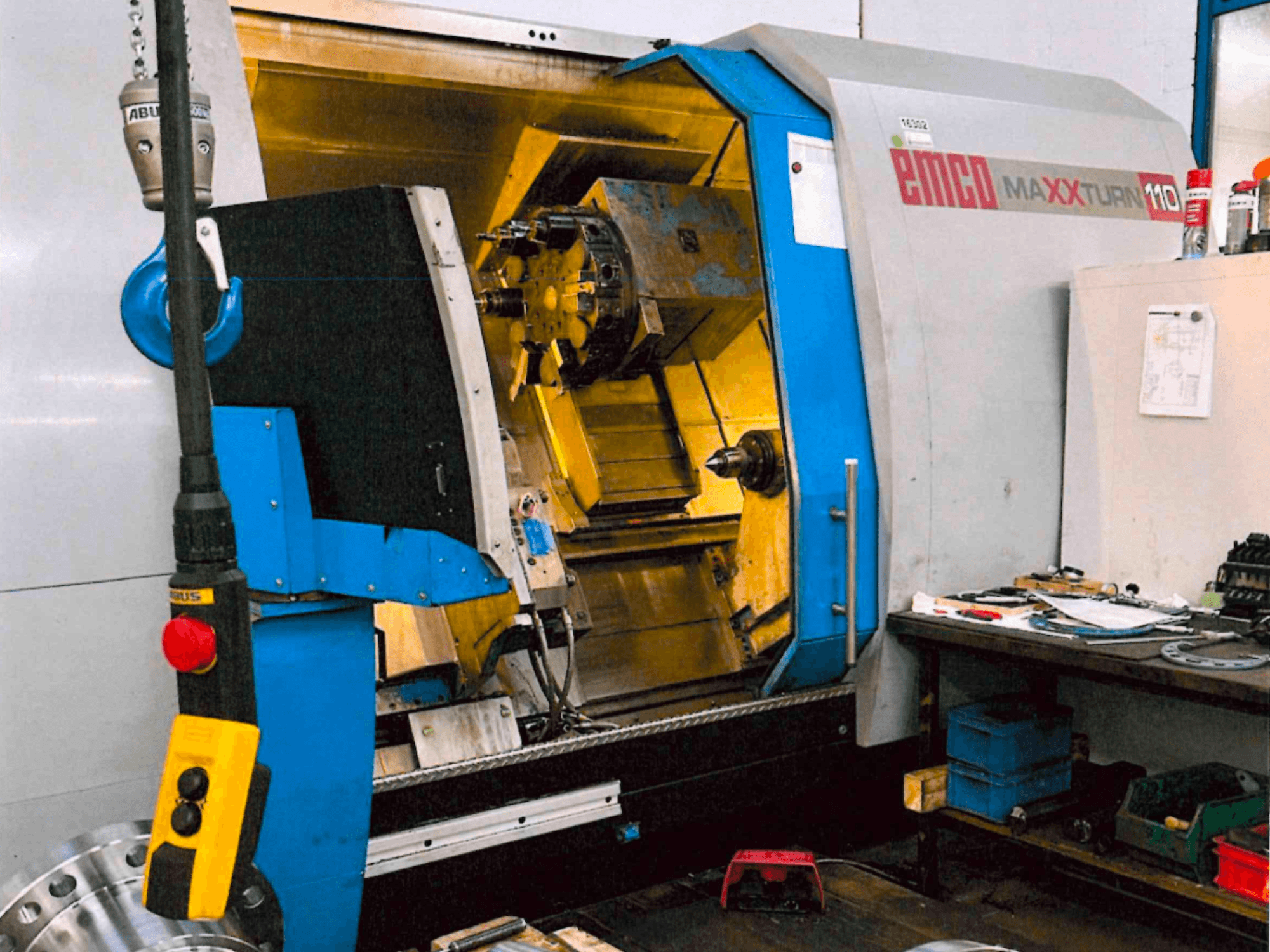

This 3-axis EMCO MT 110X 1500 M/S was manufactured in 2007. It features an impressive X-axis travel of 410 mm and Z-axis travel of 1560 mm, with a maximum turning diameter of 610 mm. The machine is equipped with a powerful 42 kW spindle and offers live tooling capabilities. If you are looking to get high-quality turning capabilities, consider the EMCO MT 110X 1500 M/S horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: EMCO
year: 2007
MODEL: MT 110X 1500 M/S
production hours: 17043
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - EMCO MT 110X 1500 M/S

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840D shopturn

Dimensions

Machine Height: 2850 mm
Machine Length: 7200 mm
Machine Weight: 16000 kg
Machine Width: 2400 mm

Movement

Number of Axes: 3
X-axis Travel: 410 mm
Z-axis Travel: 1560 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Max. Bar Diameter: 102 mm
Max. Workpiece Diameter: 610 mm
Spindle Power: 42 kW
Spindle Speed: 2500 RPM
Through-spindle Coolant: Yes
Tool Stations: 12

Additional Information

C-Axis Resolution: 0.001°
C-Axis Rapid Traverse Speed: 1000 rpm
Main Spindle Type: A2-11"
Maximum Turning Diameter: 610 mm
Swing Over Cross Slide: 550 mm
Swing Over Bed: 820 mm
Distance Between Centers: 1500 mm
Tailstock Stroke: 820 mm
Steady Rest Stroke: 1020 mm
Total Connected Load: 42 kW
Turret Interface: VDI 50 mm (DIN 69880)
Maximum Coolant Pressure Through Turret: 25 bar
Live Tool Stations: 12
Live Tool Interface: DIN 5480
Live Tool Speed Range: 0–4000 rpm
Live Tool Power (25% ED): 10 kW
Tailstock: Yes
C-Axis: Yes
Electrical Supply: 400 V
Frequency: 50 Hz
Phases: 3
Rated Current: 100 A
Connected Load: 70 kVA
Production Hours: 17,043 h

Additional Tooling:

Large quantity of high-quality tooling available (optional)
Chip Conveyor: Optional

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
