MORI SEIKI - NL 3000 MC/700DE-TUR-MOR-2008-00003

Name: MORI SEIKI NL 3000 MC/700
Brand: MORI SEIKI
SKU: DE-TUR-MOR-2008-00003
Price: 76000 EUR
Availability: InStock

76,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MORI SEIKI NL 3000 MC/700 For Sale | gindumac.com

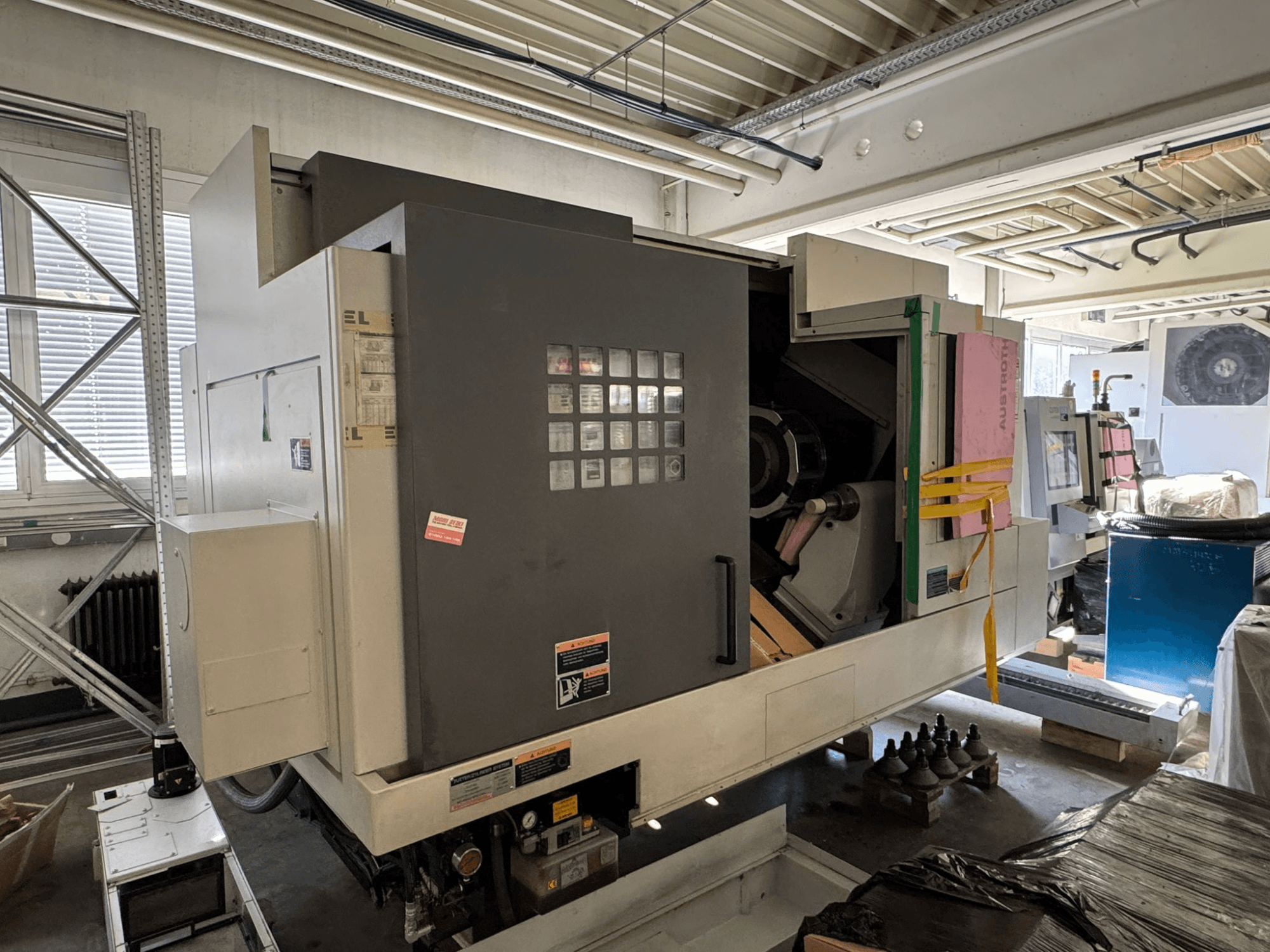

Horizontal turning machine manufactured in 2008. This MORI SEIKI NL 3000 MC/700 features a maximum turning diameter of 430 mm and a turning length of 713 mm. It includes a 12-station turret for efficient tool changes and operates at a spindle speed of 3000 rpm. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NL 3000 MC/700 machine we have for sale. Contact us for further details.

Overview

brand: MORI SEIKI
year: 2008
MODEL: NL 3000 MC/700
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - MORI SEIKI NL 3000 MC/700

Dimensions

Machine Weight: 6000 kg

Movement

Number of Axes: 2
X-axis Travel: 280 mm
Z-axis Travel: 820 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Speed: 3000 RPM
Tool Stations: 12

Additional Information

- Chuck: 12" (3-jaw chuck)

- Max Turning Diameter: 430 mm

- Swing Over Bed: 978 mm

- Turning Length: 713 mm

- Phase: 3 Phase

- Frequency: 50 Hz

- Voltage: AC 200 V

- Full Load Current: 133 A

- Current Rating of Spindle Motor: 300 A

- Short Circuit Current: 1 kA (220 V Maximum)

- Rated Power: 46 kVA

- Machine Dimensions: 2000 x 3500 mm, 640 x 740 mm

- Optional Accessories/Equipment: Tooling, chip conveyor, accessories/manuals available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
