➤ Used Johnford SL-40 For Sale | gindumac.com

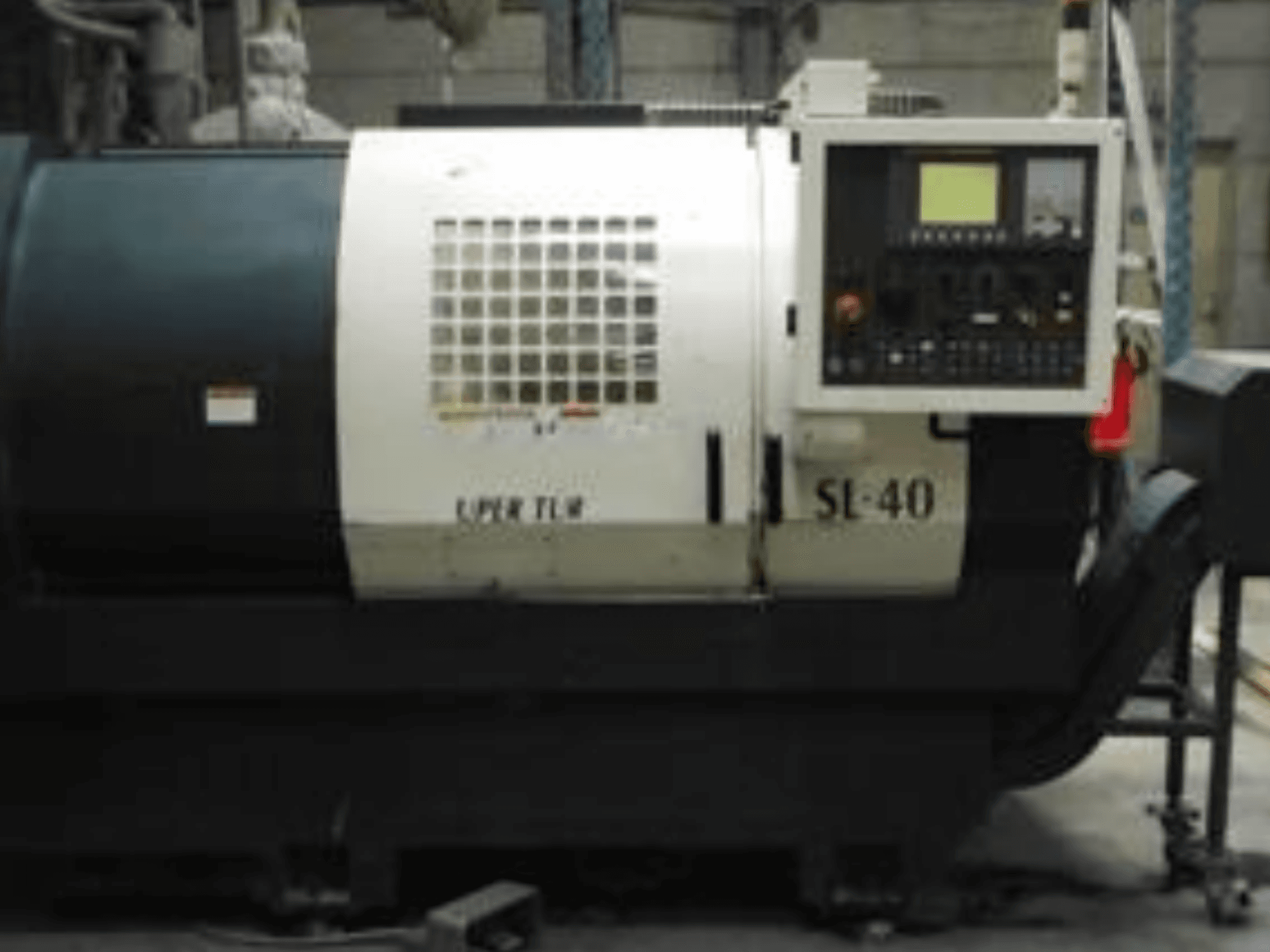

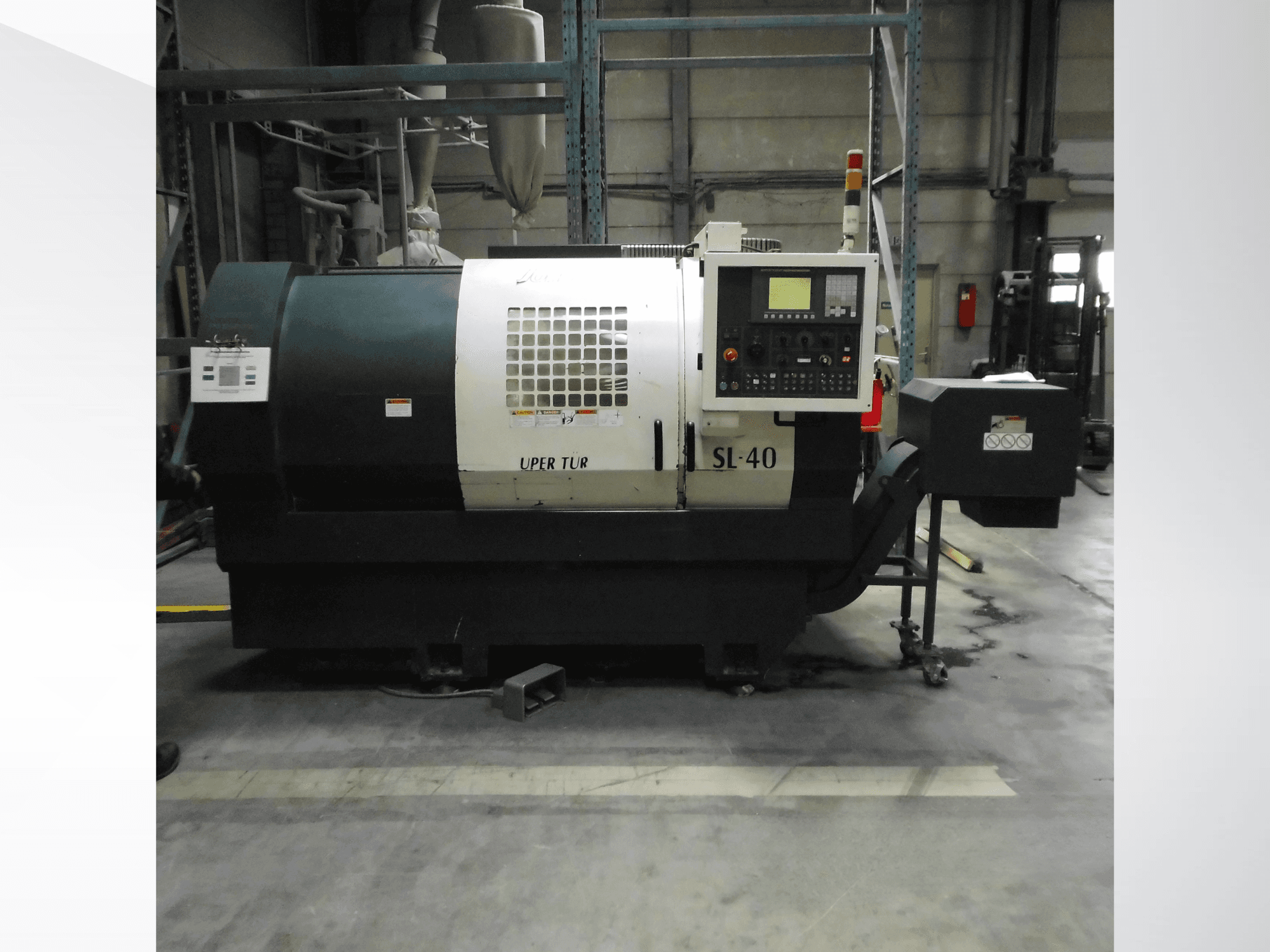

Horizontal turning machine manufactured in 2007. This Johnford SL-40 features a maximum bar diameter of Ø76.5 mm and an impressive X-axis travel of 240 mm, along with a Z-axis travel of 600 mm. It includes a 3-jaw chuck with a diameter of 254 mm and a hydraulic tailstock with a travel of 500 mm. If you are looking to get high-quality turning capabilities, consider the Johnford SL-40 machine we have for sale. Contact us for further details.

Overview

brand: Johnford
year: 2007
MODEL: SL-40
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Johnford SL-40

Control Unit

Control Brand: FANUC
Control Model: Oi-TC

Dimensions

Machine Height: 1862 mm
Machine Length: 3525 mm
Machine Weight: 4500 kg
Machine Width: 2020 mm

Movement

Number of Axes: 2
X-axis Travel: 240 mm
Z-axis Travel: 600 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Power: 15 kW
Spindle Speed: 4000 RPM
Tool Stations: 12

Additional Information

- Weight: 4500 kg

- Nominal Voltage: 380 V

- Current Type: Three-phase current

- Operating Current: 63 A

- Frequency: 50 Hz

- Power Capacity: 15 kW

- Spindle Speed: 4000 rpm

- Maximum Bar Diameter: Ø76.5 mm

- Turret Stations: 12 stations

- Tool Shank Size: 25x25 mm

- X-axis Maximum Travel: 240 mm

- Z-axis Maximum Travel: 600 mm

- Tailstock Type: Hydraulic Tailstock MK-4

- Tailstock Travel: 500 mm

- Tailstock Stroke: 60 mm

- Chuck Type: 3-jaw chuck Ø254 mm

- Main Spindle Nose: A2-8

- Additional Equipment: Hinge belt chip conveyor, Central lubrication for bedways, Air conditioning unit for cabinet, Electrical Transformer, Hydraulic power unit for 12-fold turret/tailstock/3-jaw chuck clamping pressure, 2x boring bar holders, Data Interface RS-232C

- Included Manuals: Operator's Manual Fanuc Series Oi-TC (B-64114EN/01), Parameter Manual Fanuc Series Oi-Model_C (B-64120EN/02), Maintenance Manual Fanuc Series Oi-Model C Alarm-Liste (B-64115EN/03), CNC Lathe Instruction Manual S/O Nr: T256118 SL-40 Fanuc_OiT-C

- Machine Dimensions: Length: 3525 mm, Width: 2020 mm, Height: 1862 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
