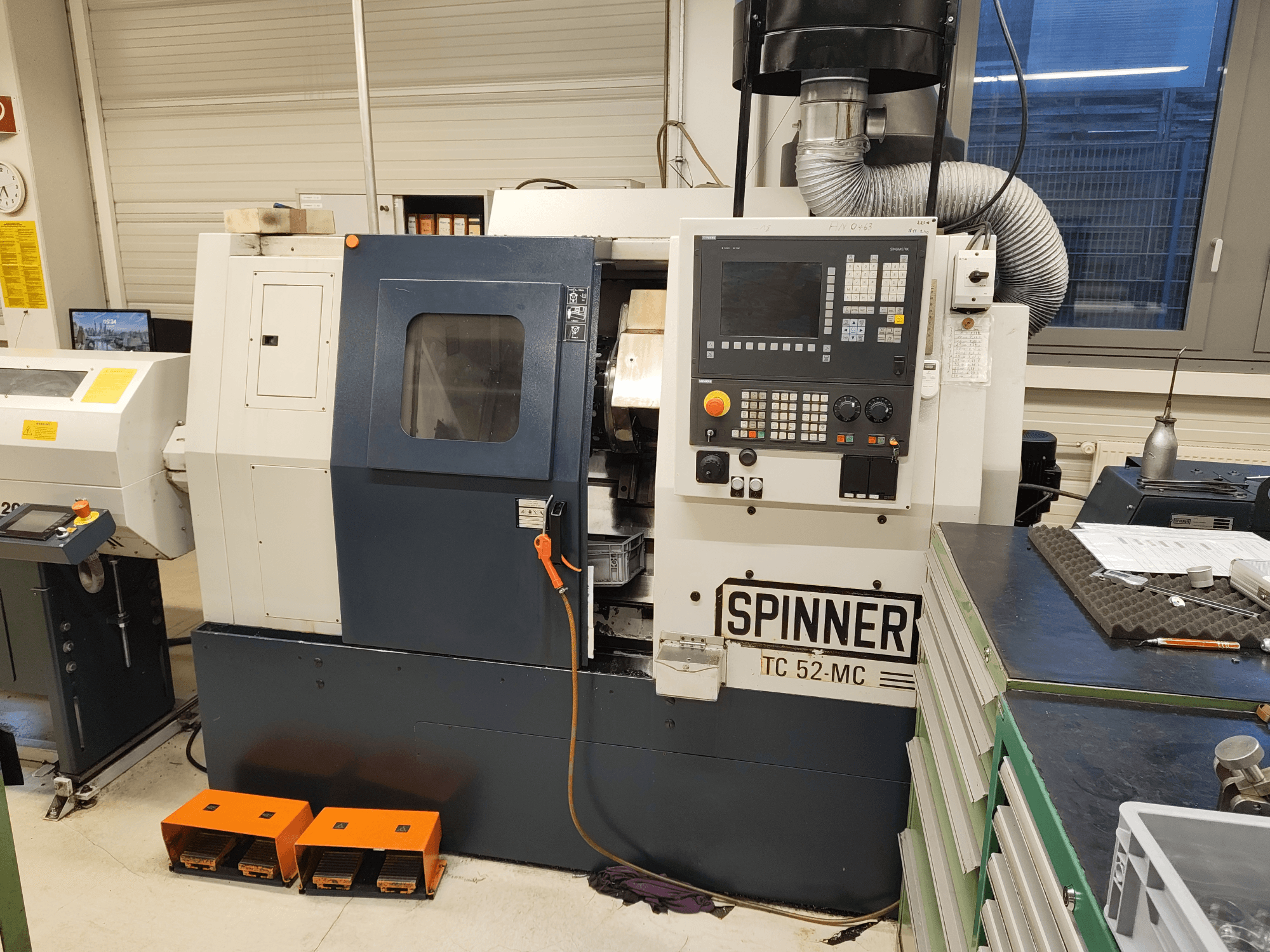

Horizontal turning machine SPINNER TC 52 MC in a workshop, front view, showing control panel, machining area, and safety features.
Horizontal turning machine SPINNER TC 52 MC in a workshop, front view, showing control panel, machining area, and safety features.

SPINNER - TC 52 MCDE-TUR-SPI-2007-00004

25,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis SPINNER TC 52 MC was manufactured in 2007. It features a robust design with optional equipment including a bar feeder, parts catcher, and a turret with driven tools. The machine is equipped with a collet chuck for clamping and a dust extraction system for efficient operation. If you are looking to get high-quality turning capabilities, consider the SPINNER TC 52 MC horizontal turning machine we have for sale. Contact us for further details.

Overview

  • brand: SPINNER
  • year: 2007
  • MODEL: TC 52 MC
  • production hours: 40767
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • control unit brand: SIEMENS

Technical Information - SPINNER TC 52 MC

Control Unit

  • Control Brand: SIEMENS

Dimensions

  • Machine Height: 1800 mm
  • Machine Length: 2100 mm
  • Machine Weight: 2500 kg
  • Machine Width: 1350 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 200 mm
  • Z-axis Travel: 570 mm

Technical Specification

  • Counter Spindle: No
  • Driven Tools: Yes
  • Max. Bar Diameter: 52 mm
  • Max. Workpiece Diameter: 280 mm
  • Spindle Speed: 5000 RPM
  • Taper Size: VDI 30
  • Tool Stations: 12

Additional Information

  • Number of Live Tools: 12

  • Live Tool Speed: 6,000 rpm

  • Live Tool Torque: 23.5 Nm

  • Rapid Traverse X/Z: 15 / 24 m/min

  • Maximum Turning Diameter: 280 mm

  • Maximum Swing Diameter: 400 mm

  • Distance Between Centers: approx. 550 mm

  • Main Spindle Nose: A6

  • Bar Capacity: 52 mm

  • Main Spindle Torque: 92 Nm

  • Coolant Tank Capacity: approx. 85 l

  • Coolant Pressure: 8 bar

  • Supply Voltage: 3/PE ~ 400 V

  • Collet Chuck Used for Clamping

  • Dust Extraction System

  • Supply Voltage: 3/PE ~ 400 V

  • Frequency: 50 / 60 Hz

  • Operating Current (IB): 34 A

  • Rated Current (IN): 35 A

  • A collet chuck used for clamping

  • Turret with driven tools

Optional equipment:

  • Bar feeder

  • Parts catcher

  • Chip conveyor

  • Tailstock

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
