SPINNER - TC 600-65MCDE-TUR-SPI-2015-00003

Name: SPINNER TC 600-65MC
Brand: SPINNER
SKU: DE-TUR-SPI-2015-00003
Price: 62000 EUR
Availability: InStock

62,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER TC 600-65MC For Sale | gindumac.com

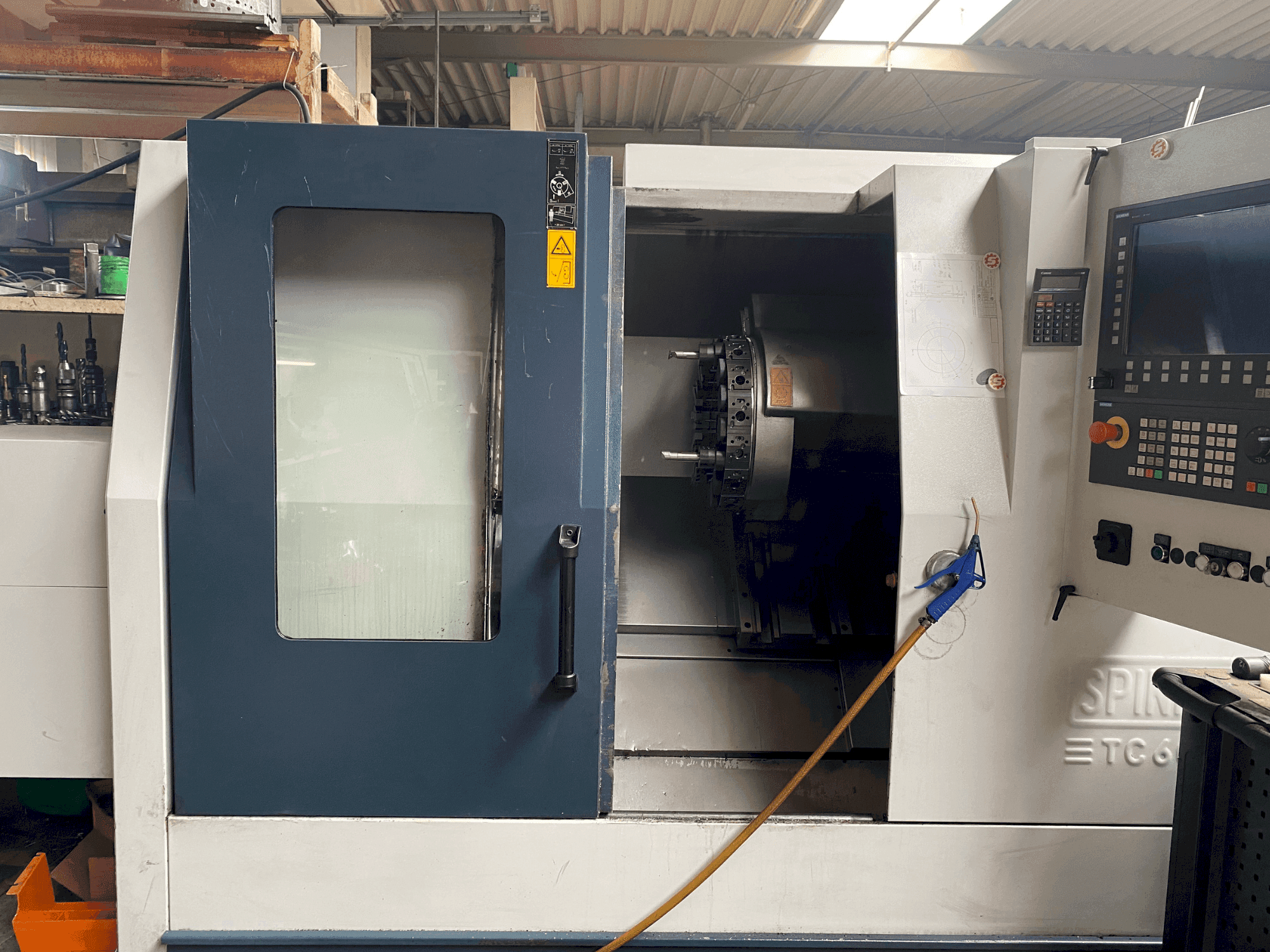

This 4-axis SPINNER TC 600-65MC turn-mill centre was manufactured in 2015, featuring a Siemens 840D control system and a 16-position indexing turret. It includes a main spindle with a speed of up to 4,000 rpm and a power of 24 kW. The machine offers a swing diameter over bed of 425 mm and a maximum turning diameter of 310 mm. Consider the opportunity to buy this SPINNER TC 600-65MC turn-mill centre. Contact us for more information about this machine.

Overview

brand: SPINNER
year: 2015
MODEL: TC 600-65MC
production hours: 12244
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Immedately
control unit brand: SIEMENS

Technical Information - SPINNER TC 600-65MC

General Data

Measurements width: 1440 MM
Measurements depth: 2730 x x MM
Measurements height: 1620 mm
Machine weight: 4200 kg

Control Unit

Brand: SIEMENS
Model: 840D-SolutionLine

Main drive

Spindle speed range: 4500 1/MIN
Spindle motor power: 11 kW/ 16.5 kW
Number of axis: 4

Movement

X-AXIS Movement: 230 mm
X-AXIS Rapid traverse: 15 m/min
Z-AXIS Movement: 740 mm
Z-AXIS Rapid traverse: 24 m/min

Workpiece

Workpiece drm over bed: 425 mm

Turret

Number of turrets: 1
Tool taper: DIN 69880/30 mm

Tail Stock

Pinol diameter: 80 mm

Tools

Number of stations: 12

Media

Oil tank: 30 liters

Additional Equipment

- Full splash guard cladding + coolant unit
- Work area light + pneumatic equipment
- Panoramic window for optimum visibility into the work area

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Center distance: approx. 600 mm
- - Max turning diameter: 310 mm
- - Torque: main spindle (fanuc, s6 40%) 178 nm, main spindle (siemens, s6 40%) 301 nm
- - Quill stroke: 120 mm
- - Adjustment travel: 475 mm
- - Speed of rotating tools: 6000 1/min
- - Driven tool power: (fanuc, 30 min) 3. 7 kw, (siemens, 40%) 6. 0 kw

Extra information

- Media Pneumatics max. operating pressure: 10 bar Normal pressure: 6 bar Hydraulics max. operating pressure: 30 bar Control Unit Control system: Standard Siemens 840D, Option Fanuc 21i Operating voltage: 400 V Mains frequency: 50/60 Hz Control voltage: 24 V DC Interfaces: USB, Ethernet, SPINNER-UNIMAG bar feed (electric)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
