SPINNER - JCL-75/1000-TC 82SI-TUR-SPI-2003-00001

Name: SPINNER JCL-75/1000-TC 82
Brand: SPINNER
SKU: SI-TUR-SPI-2003-00001
Price: 14000 EUR
Availability: InStock

14,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER JCL-75/1000-TC 82 For Sale | gindumac.com

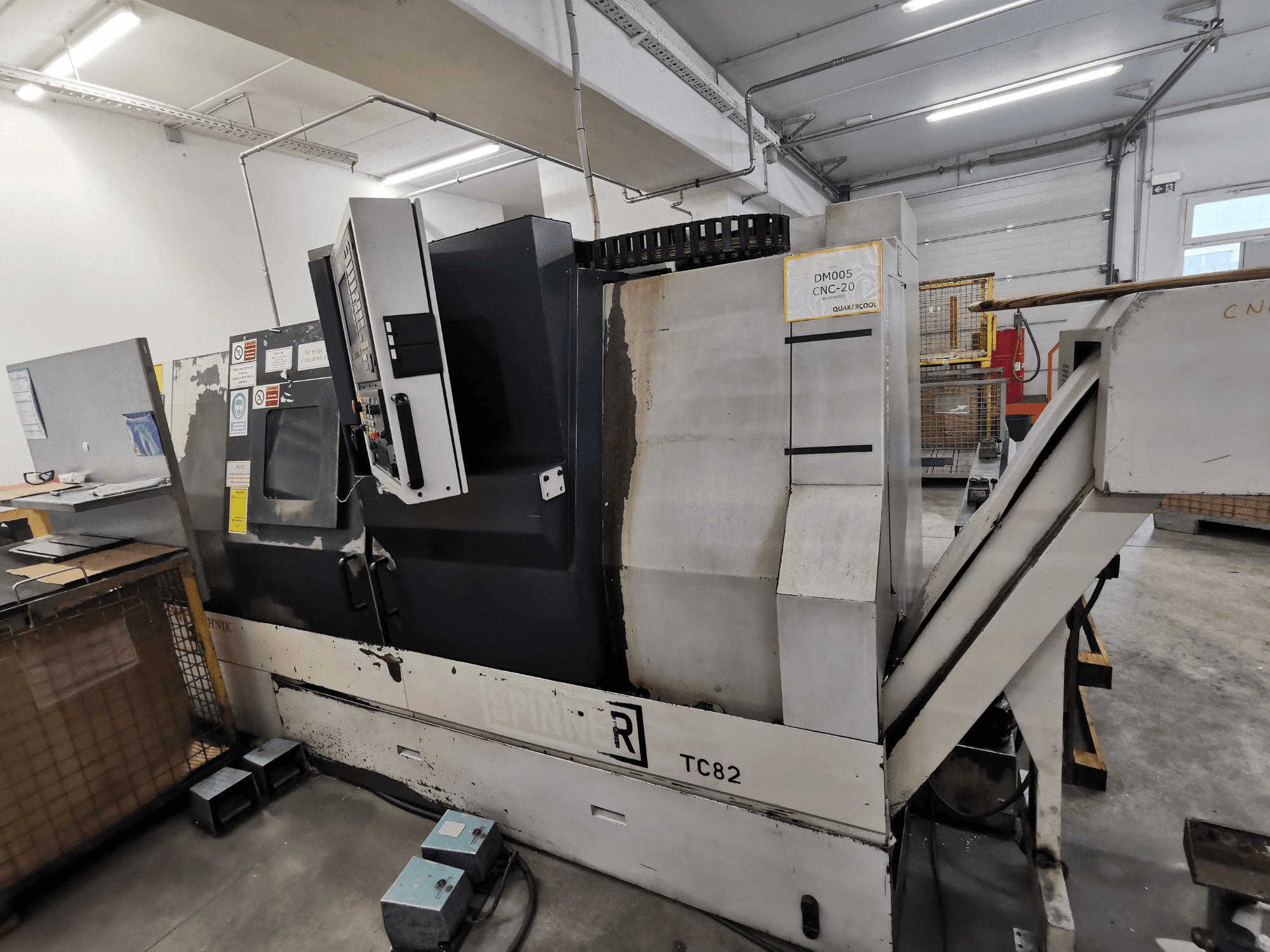

This SPINNER JCL-75/1000-TC 82 was manufactured in 2003. A robust horizontal turning machine featuring a max turning diameter over bed of 555 mm and over carriage of 350 mm. It includes a 12-station turret with a VDI 40 tool interface and a spindle motor power of 30 kW. Consider the opportunity to buy this SPINNER JCL-75/1000-TC 82 horizontal turning machine. Contact us for more information about this machine.

Overview

brand: SPINNER
year: 2003
MODEL: JCL-75/1000-TC 82
production hours: 78554
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - SPINNER JCL-75/1000-TC 82

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik

Dimensions

Machine Length: 4900 mm
Machine Weight: 8200 kg

Movement

Number of Axes: 2
X-axis Travel: 305 mm
Z-axis Travel: 1140 mm

Technical Specification

Spindle Power: 30 kW
Spindle Speed: 3200 RPM

Additional Information

Turning capacity
- Max turning diameter over bed: 555 mm
- Max turning diameter over carriage: 350 mm
Spindle
- Bar capacity: 75 mm
- Standard chuck diameter: 315 mm
- Optional chuck diameter: 400 mm
Main spindle motor
- Torque: 1055 Nm
Turret
- Number of stations: 12
- Tool interface: VDI 40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
